Desire D40 has been made with 7 different LED arrays - only the array PCB and rear UI sticker differ between these
Parts with a 🎨 can have a suffix added for different colours. For example:
7410A3025 yoke (black)
7410A3025 -1 yoke (white)
7410A3025 -5 yoke (silver)
Plastic parts and stickers are generally only available on black or white
 |
Because Desire D40 and D60 share many parts, pictures may not match your fixture exactly, but the part numbers are correct
|
Yoke
|
|
| No |
Part Number |
Description |
| 1 |
7410A3025 🎨 |
Yoke, D40 (bare) a |
| 7410A3037 🎨 |
Yoke, D60 (bare) a |
| 2 |
HW8460 |
Tilt lock knob |
| 3 |
HW5256 |
Flat washer |
| 4 |
HWM2228 |
Bolt M8 x 18mm |
a Bare painted yoke not including labels. Not all labels can be ordered
|
Rear housing to front housing
|
|
| No |
Part Number |
Description |
| 5 |
HWM1749 |
Screw M5 x 16mm a |
a Screw head has varied, thread and length have remained the same. Currently shipping screw fits all fixtures
|
PSU, control card, UI
|
|
| No |
Part Number |
Description |
| 6 |
7410A3031 |
Compression spar |
| 7 |
7410K4003-1.8.2 |
Control card
Includes support tray and thermal pad |
| 8 |
HWM1644 |
Screw M4 x 10mm |
| 9 |
7410K4001 |
Power supply
Includes support tray and thermal pad |
| 10 |
7410A3012 |
LCD support bracket |
| 11 |
DS183-F |
LCD display |
| 12 |
7410B5615 |
DMX in/thru PCB |
| 13 |
7410B5607 |
Powercon in/thru PCB |
| 14 |
7410A3028 🎨 |
Rear enclosure |
| 15 |
7410A4012 |
Display window |
| 16 |
HW1169 |
Screw 4-40 x 3/8 (XLR) |
| 17 |
HWM2108 |
Screw M3 x 10mm (Powercon) |
| 18 |
7410A2001 |
UI sticker (Vivid) |
| 7410A2002 |
UI sticker (Studio HD) |
| 7410A2003 |
UI sticker (Fire) |
| 7410A2004 |
UI sticker (Ice) |
| 7410A2005 |
UI sticker (Lustr+) |
| 7410A2031 |
UI sticker (Daylight) |
| 7410A2033 |
UI sticker (Tungsten) |
|
Rear of LED head
|
|
| No |
Part Number |
Description |
| 20 |
HWM1644 |
Screw M4 x 10mm |
| 21 |
7410A3033 |
Enclosure cover |

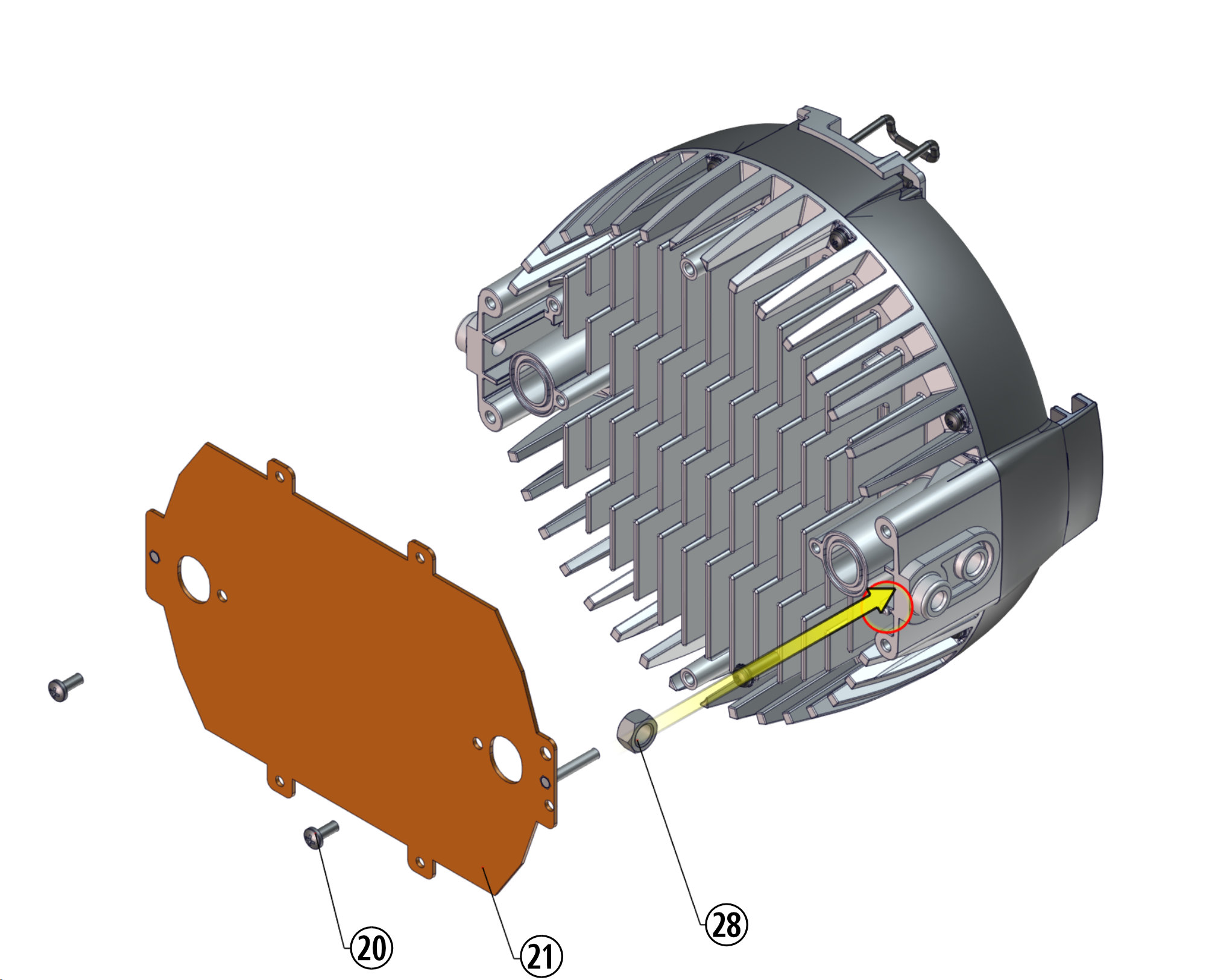

| 28 |
HWM2229 |
Nut M8 |
|

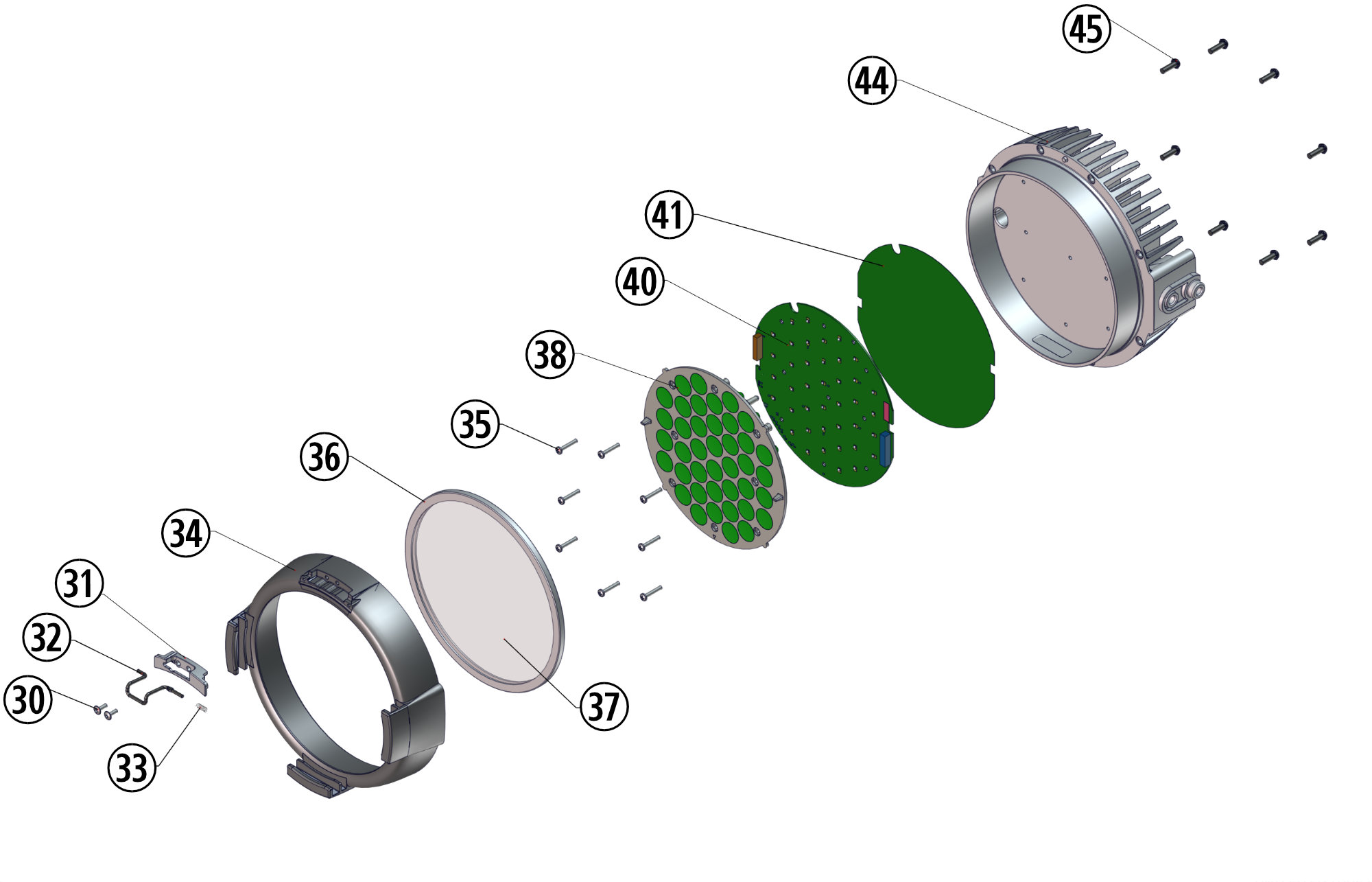

LED head and array (D40)
|
|
| No |
Part Number |
Description |
| 30 |
HWM1648 |
Screw M4 x 10mm |
| 31 |
7410A3027 🎨 |
Gel clip retainer |
| 32 |
7410A3026 |
Gel clip |
| 33 |
HW750 |
Spring 0.5" |
| |
7410K4008 🎨 |
Gel clip replacement kit
includes parts 30 (x2), 31,32, 33 |
| 34 |
7410A3004 🎨 |
Trim ring with ears |
| 35 |
HWM1751 |
Screw M3.5 x 20mm |
| 36 |
7410A4002 |
Front gasket |
| 37 |
7410A4001 |
Front glass |
| 38 |
7410A4131 |
Single-piece optic assembly a |
| 40 |
7410B5604-CFG |
LED array (Vivid) |
| 7410B5613-CFG |
LED array (Lustr+) |
| 7410B5609-CFG |
LED array (Studio HD) |
| 7410B5716-CFG |
LED array (Tungsten) |
| 7410B5616-CFG |
LED array (Daylight) |
| 7410B5803-CFG |
LED array (Fire) |
| 7410B5703-CFG |
LED array (Ice) |
| 41 |
7410A4019 |
LED array thermal pad
Included with array kit (40) |
| 44 |
7410A3002 🎨 |
LED head |
| 45 |
HWM1749 |
Screw M5 x 16mm b |
a This is the one-piece optic used after July 2015. If your fixture has an optic consisting of lenses sandwiched between 2 plates, contact ETC for guidance
b Screw head has varied, thread and length have remained the same. Currently shipping screw fits all fixtures
|
