OneTrack DMX ETL Irideon WLZ Exploded Diagrams

Parts with a 🎨 can have a suffix added for different colours. For example:

7191A3049          yoke (black)
7191A3049 -1    yoke (white)
7191A3049 -5    yoke (silver)

NB: plastic parts and stickers are generally available only in black and white

Irideon WLZ comes in many different variants, and it is often possible to order either an entire sub-assembly, or the parts within that sub-assembly. The guide below is slightly different to other fixtures to take that fact into account

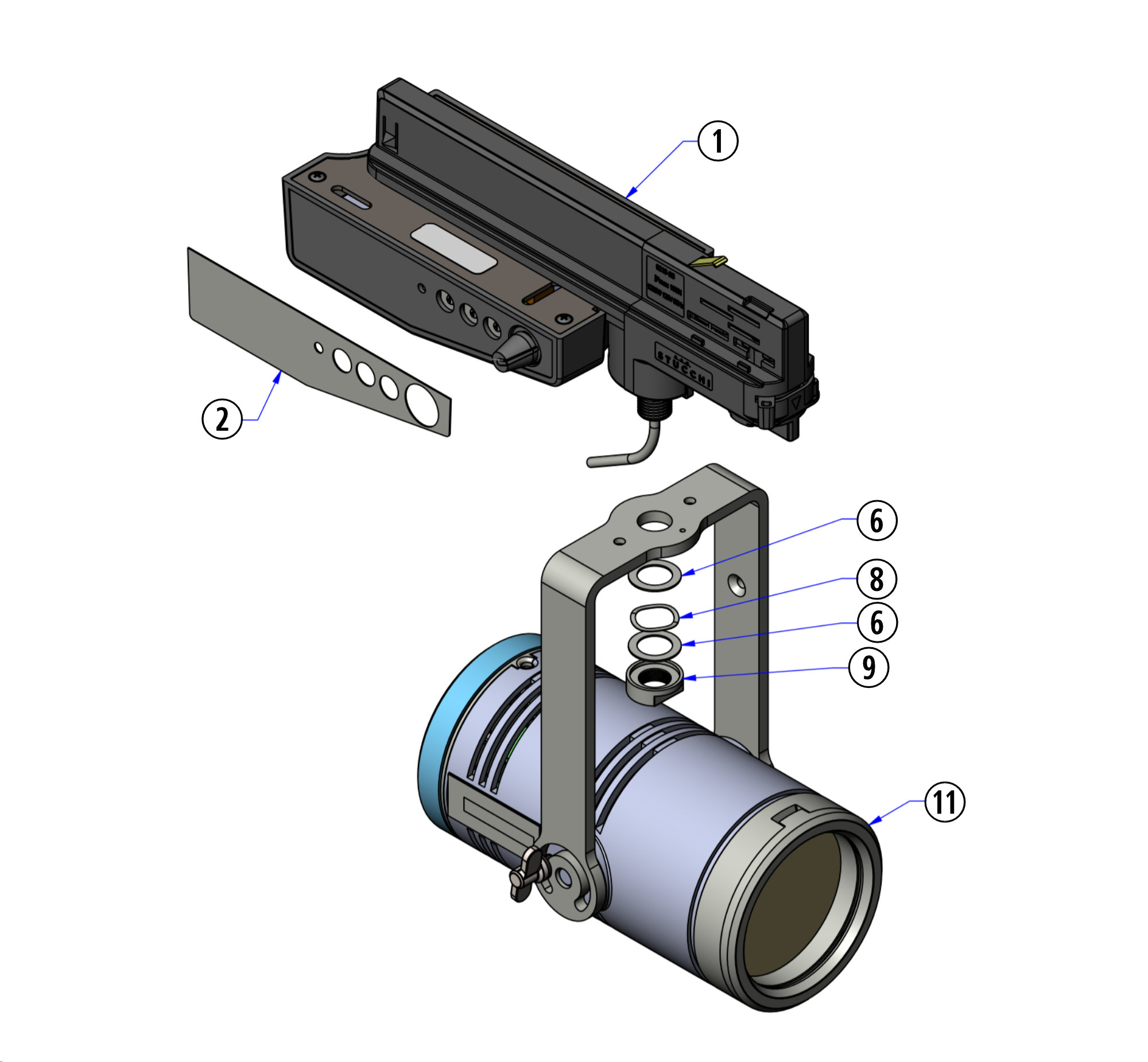

Top level components

No Part Number Description 1 See breakdown OneTrack DMX adapter (ETL) 2 Factory Replacement Only Why? Product label 6 HW5548 Flat washer, black nylon 8 HW5831 Wavy washer 9 7191A3042 🎨 Yoke bushing nut 11 See breakdown Fixture body

Fixture body

	No Part Number Description 1 Contact ETC  🎨 Media holder 2 7191A4007 Silicone pad 3 HWM1148 Screw M2 x 5mm 4 HWM1808 Screw M3 x 16mm 5 OP2097 Fresnel lens 6 Contact ETC Magnet 7 Contact ETC  🎨 Front lens mount 8 7192A4026 Glass plate CE only 9 7192A4027 Lens mount ring 10 7192A4009 🎨 Zoom label left 11 HW469 (black) HW487 (white/silver) Flat washer 12 7192A4012 🎨 Yoke knob 13 7191A3049 🎨 Yoke (bare) a 14 7191A4010 🎨 Yoke degree angle label 15 7192A4008 🎨 Back cap label 16 HWM1346 Screw M4 x 10mm 17 7192A3014 🎨 Zoom knob 18 HW5861 Flat washer 19 HW4251 Flat washer 20 7191A3002 Yoke bolt 21 7192A4010 🎨 Zoom label right a Bare painted yoke not including labels. Not all labels can be ordered
	No Part Number Description 22 7192A3012 🎨 Main housing 23 HWM3112 Screw M3 x 5mm 24 HWM2108 Screw M3 x 10mm 25 7192A4024 Isolator ring 26 7192A3026 Heat sink plate 27 HWM1670 Screw M3 x 10mm 28 7192A4000 Shaft bearing 29 HWM1142 Screw M3 x 6mm 30 7191A3029 Strain relief bracket 31 HW6758 Strain relief grip 32 HWM1149 Screw M4 x 6mm 33 HWM1551 Screw M4 x 16mm 34 7192A3013 🎨 Rear housing 35 7192A2010 Shaft assembly
Important: if your LED chip doesn't look like this drawing, see "Conversion kit" below!	No Part Number Description 36 HWM1142 Screw M3 x 6mm 37 7191A4044 COB holder insulator 38 7191B2001 COB holder  39 CR669-F LED 2700K Gallery CR682-F LED 3000K CR670-F LED 3000K Gallery CR684-F LED 4000K CR673-F LED 5000K 40 7191A4043 COB holder thermal pad 41 7192A3017 Heat sink/LED mount 42 HW5861 Flat washer 43 7192A3018 Threaded rod 44 HWM1670 Screw M3 x 10mm 45 7192A4014 Threaded nut mount 46 7192A4001 Shaft roller a 47 7192A3027 Shaft roller screw a Roller includes small rubber ring. Rings are not available separately, contact ETC for advice if ring is broken or lost

DMX OneTrack Adapter (ETL)

Complete Track Adapter Assembly Irideon FPZ 120V 7191A2140 Irideon FPZ 277V 7191A2142 Irideon WLZ 120V 7192A2140 Irideon WLZ 277V 7192A2142 Track Adapter Components No Part Number Description 1 J2558 🎨 Track adapter (120V) J2559 🎨 Track adapter (277V) 2 HWM10141 Screw M2.2 x 8mm Plastite 3 HW6759 Strain relief 5 7191A3066 🎨 Yoke bushing 6 HWM10144 Screw M3 x 8mm Plastite 7 HWM10145 Screw M3 x 12mm Plastite 8 HWM10143 Screw M2.5 x 8mm Plastite 9 W6470 🎨 Fiberglass sleeve (per foot) ~ 1.5 ft / fixture 10 HWM10142 Screw M2.5 x 6mm Plastite

No Part Number Description 11 HWM3112 Screw M3 x 5mm 12 7191A3030 Standoff M3 x 0.625" 13 7191A3031 Standoff M3 x 1" 14 HWM1666 Screw M3 x 5mm Taptite 15 7191B5701 Driver PCB 16 7191B5612 Power supply 17 7191A4005 🎨 Track adapter housing 18 7191A4011 🎨 Control knob cap
