Ion Xe 20 (Win 10) Exploded Diagrams

Last updated
Save as PDF

Because Ion Xe shares many parts between Xe and Xe 20, and between Windows 7 and 10 hardware, the pictures may not match your console exactly, but the part numbers are correct

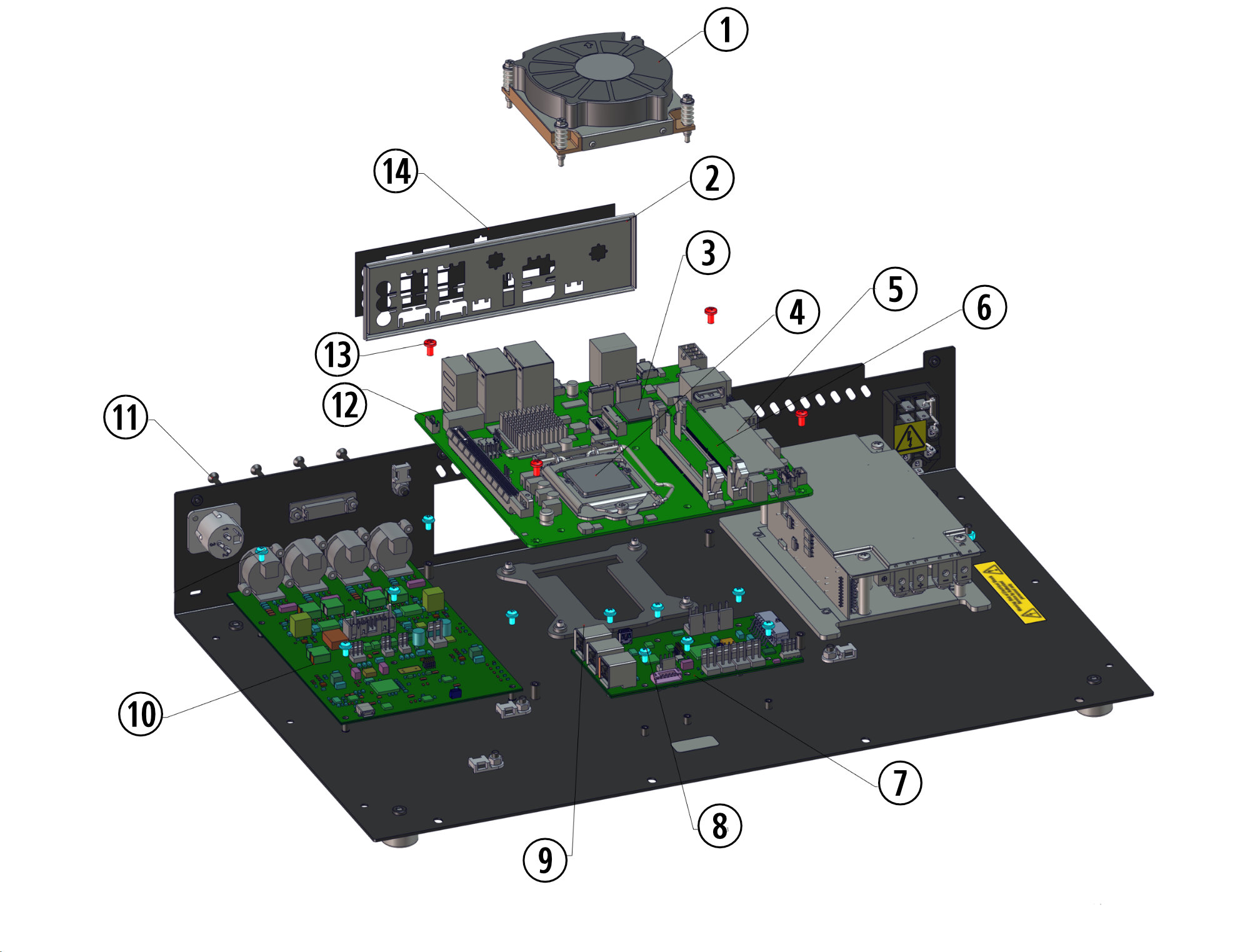

Bottom tray (Win 10)

Ion XE Exploded 1.jpg

No	Part Number	Description
1	B1073	CPU Fansink
2	M8344	Motherboard I/O Shield
3	M8345	Wireless card
4	M8342	CPU
5	M8363	SSD ^a
6	M8364	RAM 1 stick per console
7	Contact ETC	Intelligent Power Board ^b
8	HWM1683	Screw M3x6mm
9	HW7462	Motherboard Stiffener
10	4311B5603	DMX - I/O PCB ^b
11	HWM1133	XLR Screw
12	M8344	Motherboard
13	HWM1671	M3.5 x .6 x 6mm
14	4311A4036	Motherboard Label (Win 10)
	4350K1017	Windows 10 (all inc. Apex) re-image stick

^a Blank SSD, must be imaged after installation
^bThe currently shipping versions of these PCBs require Eos v3.1.4 or higher

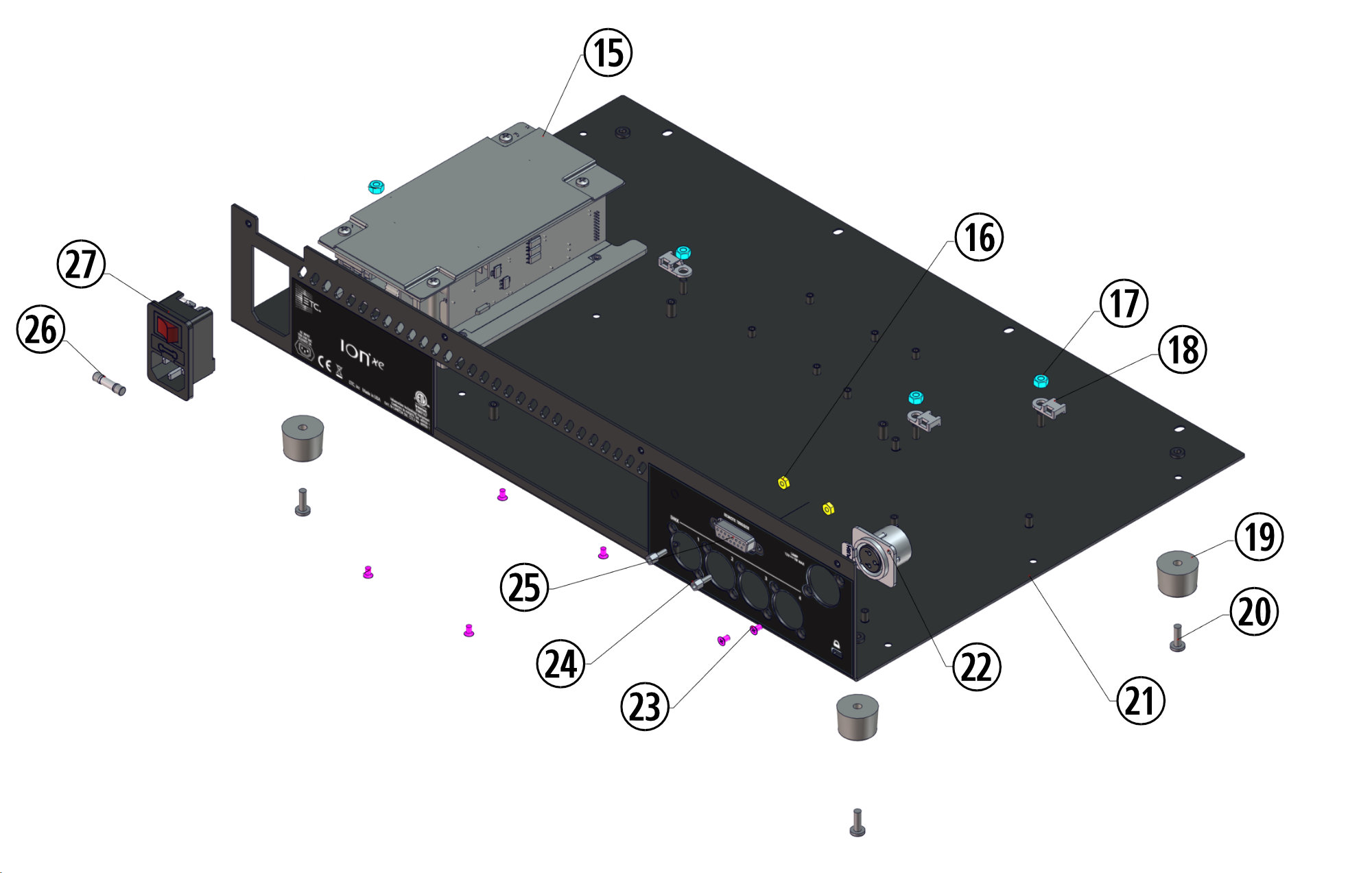

PSU, rear of bottom tray, feet

Ion XE Exploded 2.jpg

No	Part Number	Description
15	4311K1030	Power Supply Kit
16	HW196	Nut 4-40 1/4 1/8
17	HWM1151	Nut M4x0.7
18	HW745	Cable tie mount
19	HW6196	Foot
20	HWM1802	Foot screw M4 x 12mm
21	4311A3002	Bottom panel, painted, no stickers
22	4310B7004	Gooseneck 3-pin XLR (inc. wiring and PCB connector)
23	HWM1169	Screw M3 x 5mm
24	HW5100	Remote trigger port screw/standoff
25	4310B8001	Remote trigger port (inc. ribbon cable and PCB connector)
26	F210	Power fuse
27	S876	Power connector assembly

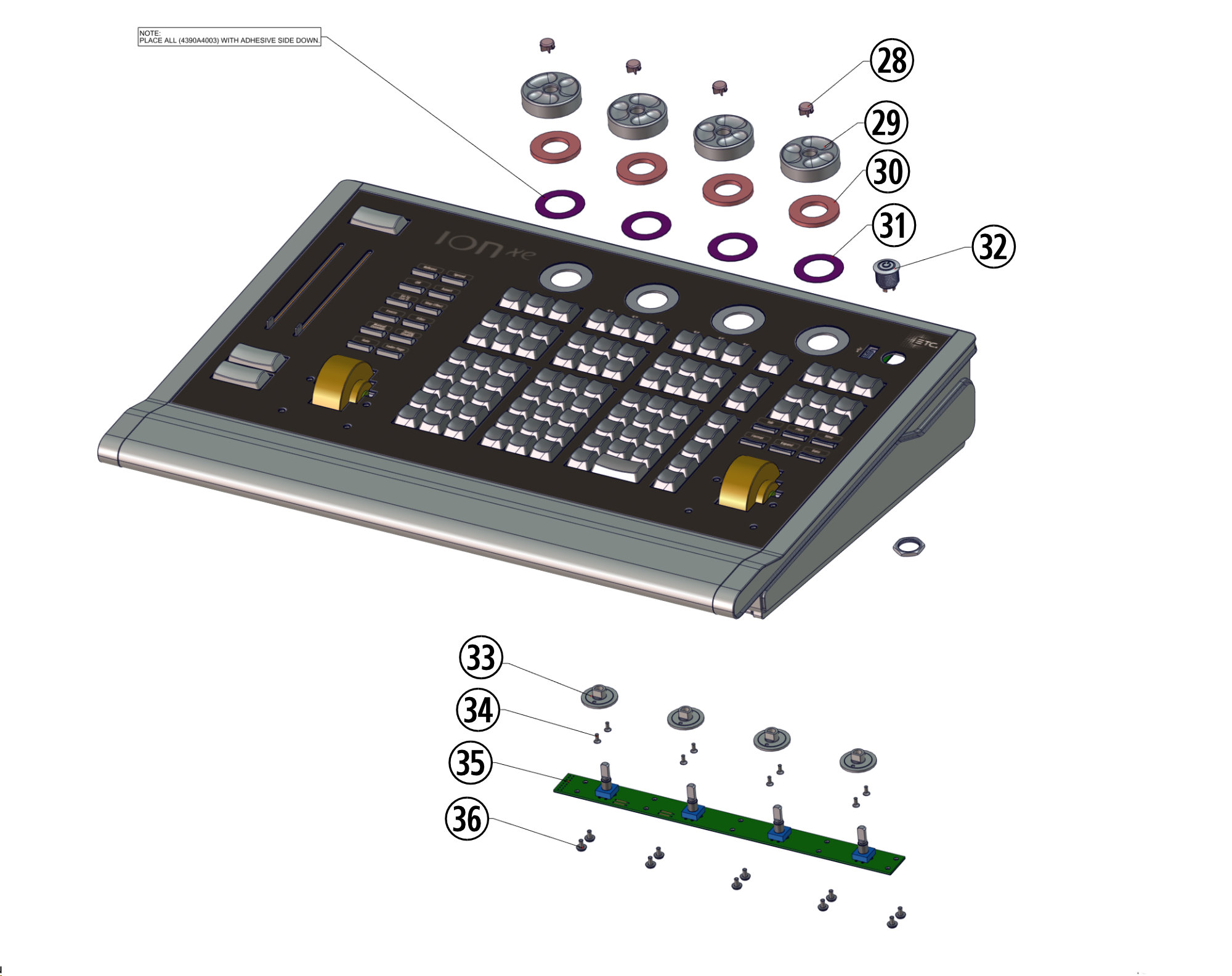

Encoders

Ion XE Exploded 3.jpg

No	Part Number	Description
28	4311A4012	Encoder knob button
29	4390A3006	Encoder knob
30	HW5836	Encoder washer
31	4390A4003	Encoder knob wear surface
32	4311B7004	Power button (inc. wiring,PCB connector, and hex nut)
33	4311A4013	Encoder knob retention plate
34	HWM1831	Screw M2.5 X 6mm
35	4240B5622	Encoder PCB
36	HWM1683	Screw M3 x 6mm
	L1145-F	Individual encoder (requires soldering)

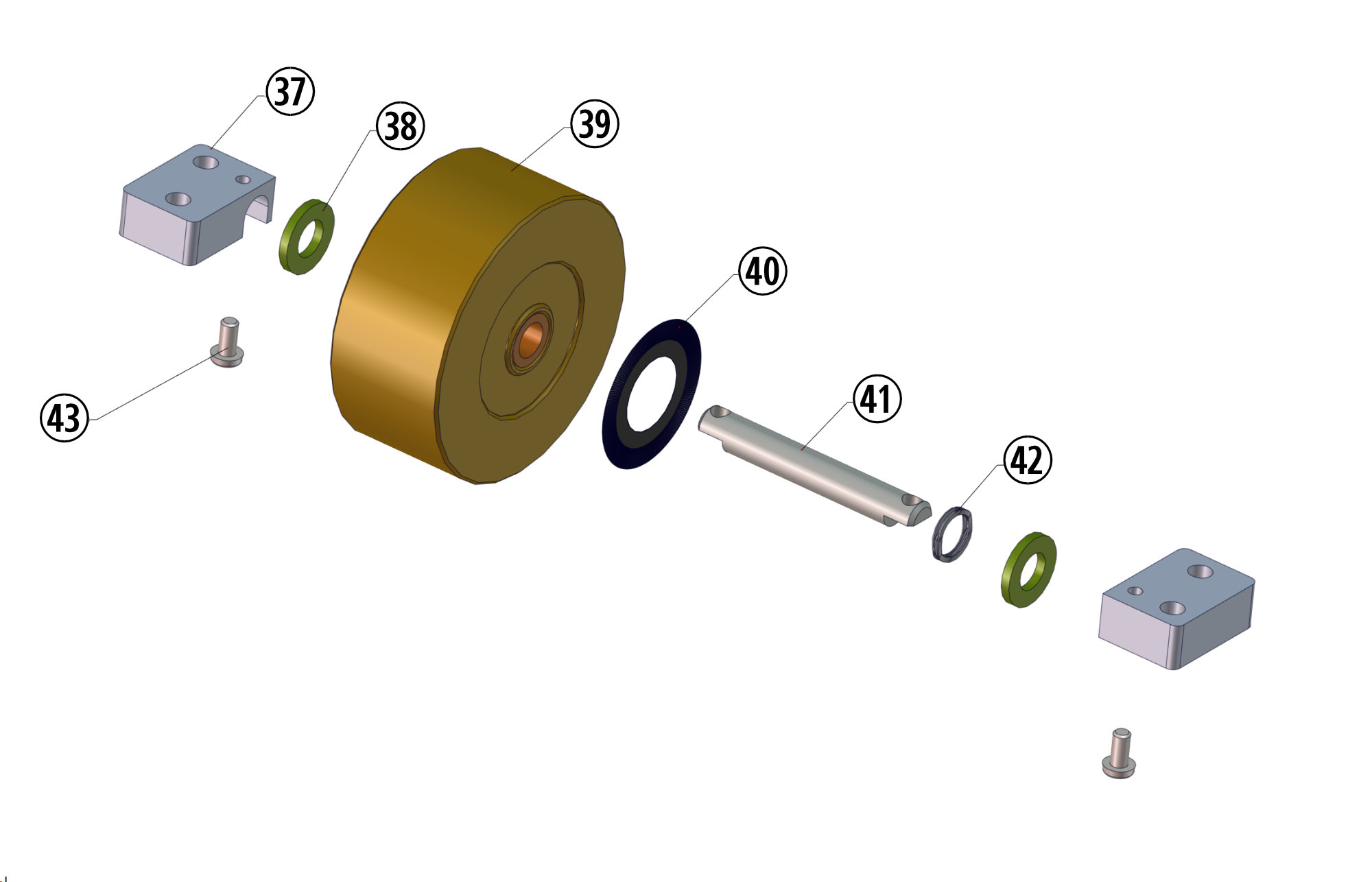

Level and rate wheels

Both wheels use identical parts

Ion XE Exploded 5.jpg

No	Part Number	Description
37	4240A3073	Wheel mount
38	HW5824	Level wheel washer
39	4240A3028	Level/rate wheel
40	4240A4009	Optical encoder sticker
41	4240A3086	Wheel shaft
42	HW7386	Wave spring
43	HWM1799	Screw M3 x 6mm
44	HWM1610	Nut M3 x 0.3
45	4240B5634	Level wheel PCB
46	4370A3053	Level wheel bracket

Face panel PCBs

Ion XE Exploded 6.jpg

No	Part Number	Description
47	4311B5602	Front USB PCB
48	4390B5603	6x2 button assembly PCB
49	4250B5638	Playback PCB assembly ^c
50	4390B5611	Main button PCB assembly ^c

^cThe currently shipping versions of these PCBs require Eos v3.1.4 or higher

Ion XE 20 Fader PCBs

Ion XE 20 Faders Exploded.jpg

No	Part Number	Description
71	4240B5728	10 fader PCB
72	4240B5633	Fader display PCB
73	4240A3153	Fader display stiffener plate
74	HWM927	Standoff M3 x 6mm
	P152-F	Individual fader (requires soldering)
	S847-F	Individual fader button switch (requires soldering)
	DS217-F	Individual display 2 per console (requires soldering)

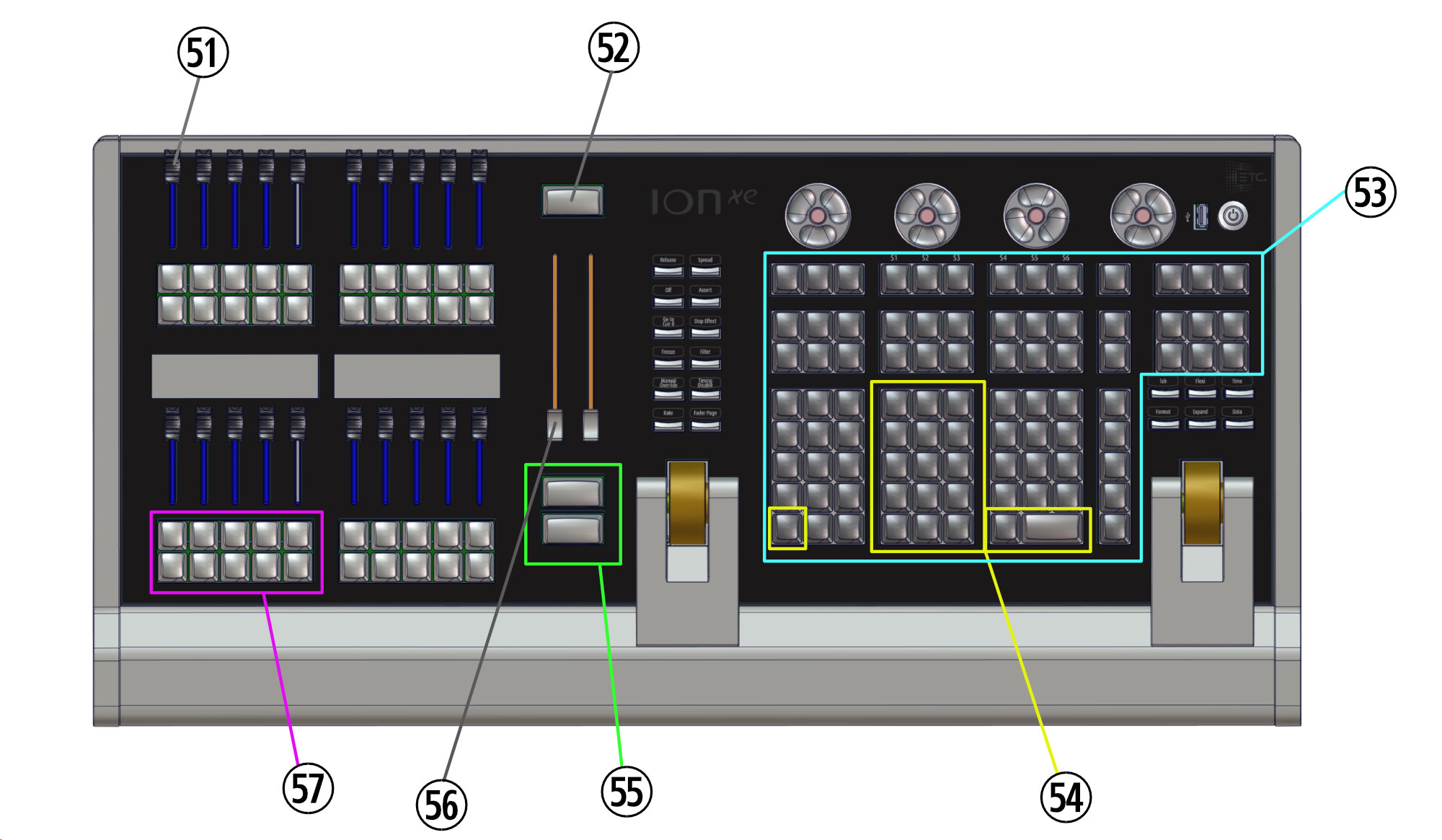

Face panel key and fader caps

Ion XE Keycaps Exploded.jpg

No	Part Number	Description
51	4110A4036	Fader cap Xe 20 only
52	4390A2007	Playback MASTER key
53	4390K1020	Main facepanel keys
54	4450K1103	Num-pad, Shift, At, Enter keys
55	4450K1105	Go and Stop keys
56	4240A4044	Playback fader cap
57	4450A2031	Fader bump keys Xe 20 only Set of 10 keycaps / 5 faders' worth

See also this article about different keycaps sets

Wrist rest

Ion XE Wrist Rest Exploded.jpg

No	Part Number	Description
81	4240A4138	Wheel thumb rest
82	HWM1802	Screw M4 x 16mm
83	HWM1659	Screw M4 x 8mm
84	4240A3174 ^a	Wrist rest Ion Xe
	4311A3120 ^a	Wrist rest Ion Xe 20

^a Wrist rest only, held on by HWM1659 screws (not pictured), for other parts contact ETC

Other part numbers not shown in diagrams

Part Number	Description
BT161	CR2032W battery with wires and connector More information
4250K1049	Battery holder with wires and connector (bring your own CR2032) More information
Z1458-F	DMX transceiver chip
M7400	DisplayPort to DVI adapter (active)
