ColorSource Fresnel V (Max) Exploded Diagrams
- Last updated
-
-
Save as PDF
ColorSource Fresnel V and Fresnel V Max share most of their parts in common.
Parts that differ are called out with V and Max respectively
Both are available in a non-Multiverse version, these differences are also noted below
Parts with a 🎨 can have a suffix added for different colours. For example:
7417A3018 yoke (black)
7417A3018-1 yoke (white)
7417A3018-5 yoke (silver)
Yoke and outer body
|
| No |
Part Number |
Description |
| 1 |
7417A3018 🎨 |
Yoke (bare) |
| 2 |
HWM1971 |
Screw M4 x 12mm |
| 3 |
HWM1984 |
Screw M5 x 10mm |
| 4 |
7470A3019 |
Clutch plate |
| 5 |
7470A2001 |
Encoder knob cap |
| 6 |
HWM2228 |
Bolt M8 x 18mm |
| 7 |
HW522 |
Washer, flat, 1/4" |
| 8 |
HW8144 🎨 |
Tilt lock knob |
| 9 |
HW6129
(Non-Multiverse) |
Antenna hole blanking grommet |
| 10 |
HW5125 |
Bolt 5/16" |
| 11 |
N1084
(w/ Multiverse) |
Multiverse antenna |
|

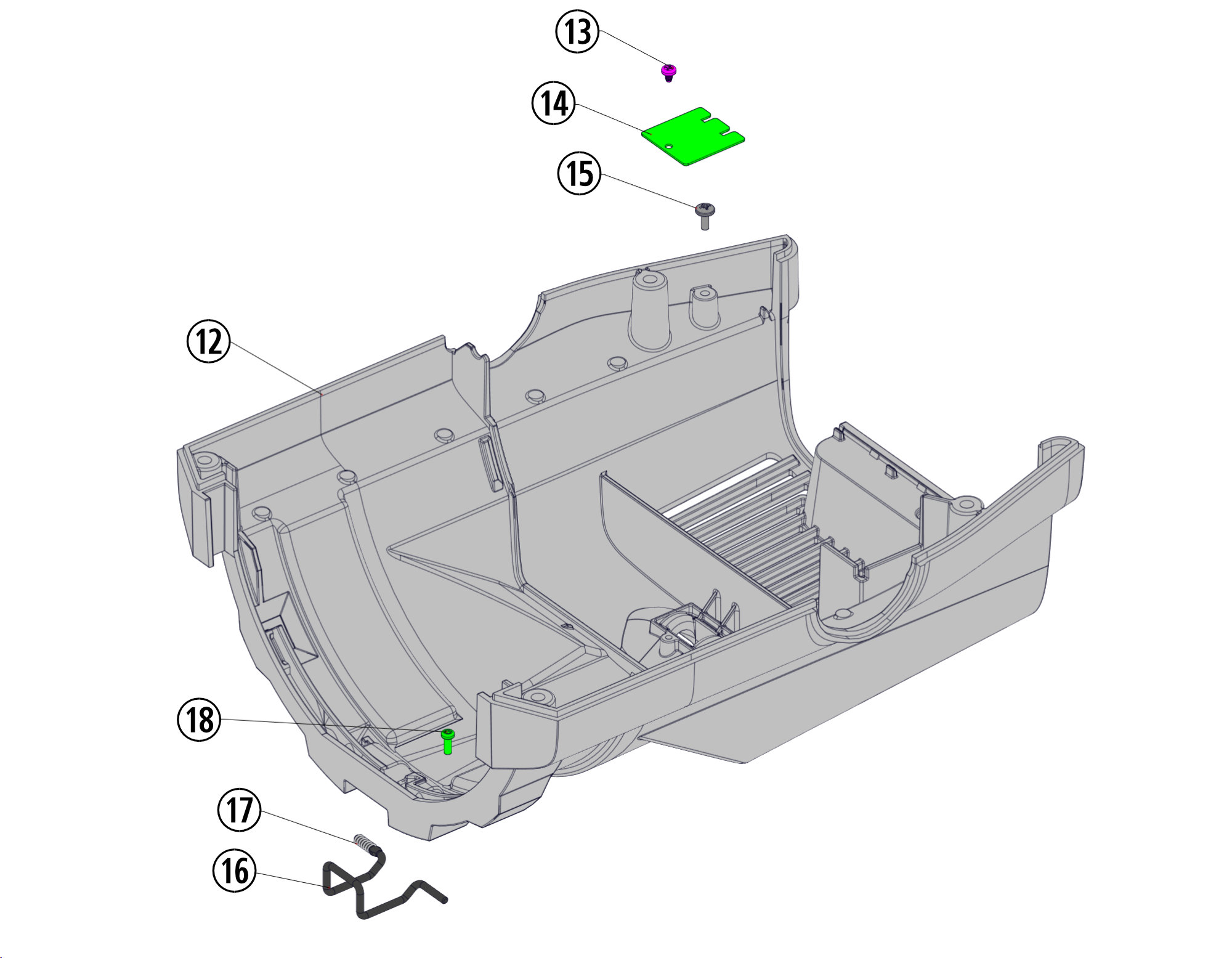

Top casing
|
| No |
Part Number |
Description |
| 12 |
7417A3002 🎨 |
Upper housing |
| 13 |
HWM10086 |
Screw M3 x 4mm |
| 14 |
7417A3023 |
Blocker plate |
| 15 |
HWM1950 |
Screw M4 x 8mm |
| 16 |
7417A3025 |
Gel clip |
| 17 |
HW750 |
Spring 0.5" |
| 18 |
HWM10023 |
Screw M3 x 8mm |
| |
7417K1010 |
Gel clip kit
Contains parts 16, 17, 18 |
|

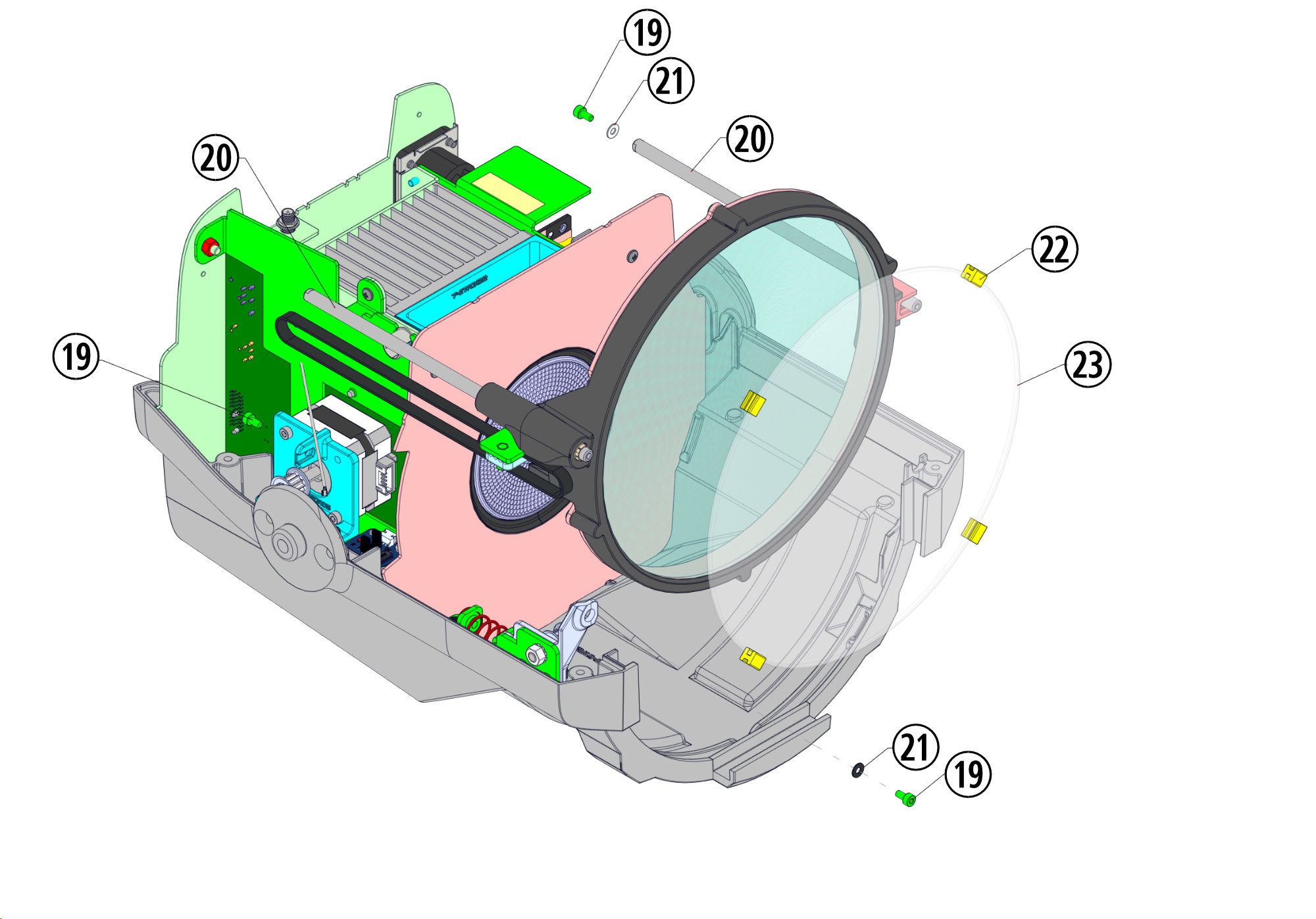

Zoom lens into bottom casing
|
| No |
Part Number |
Description |
| 19 |
HWM1853 |
Screw M3 x 6mm |
| 20 |
7417A3007 |
Lens support rod |
| 21 |
HWM1690 |
Washer, flat, M3 |
| 22 |
7060A4012 |
Lens support pad |
| 23 |
7417A4005 |
Front glass |
|

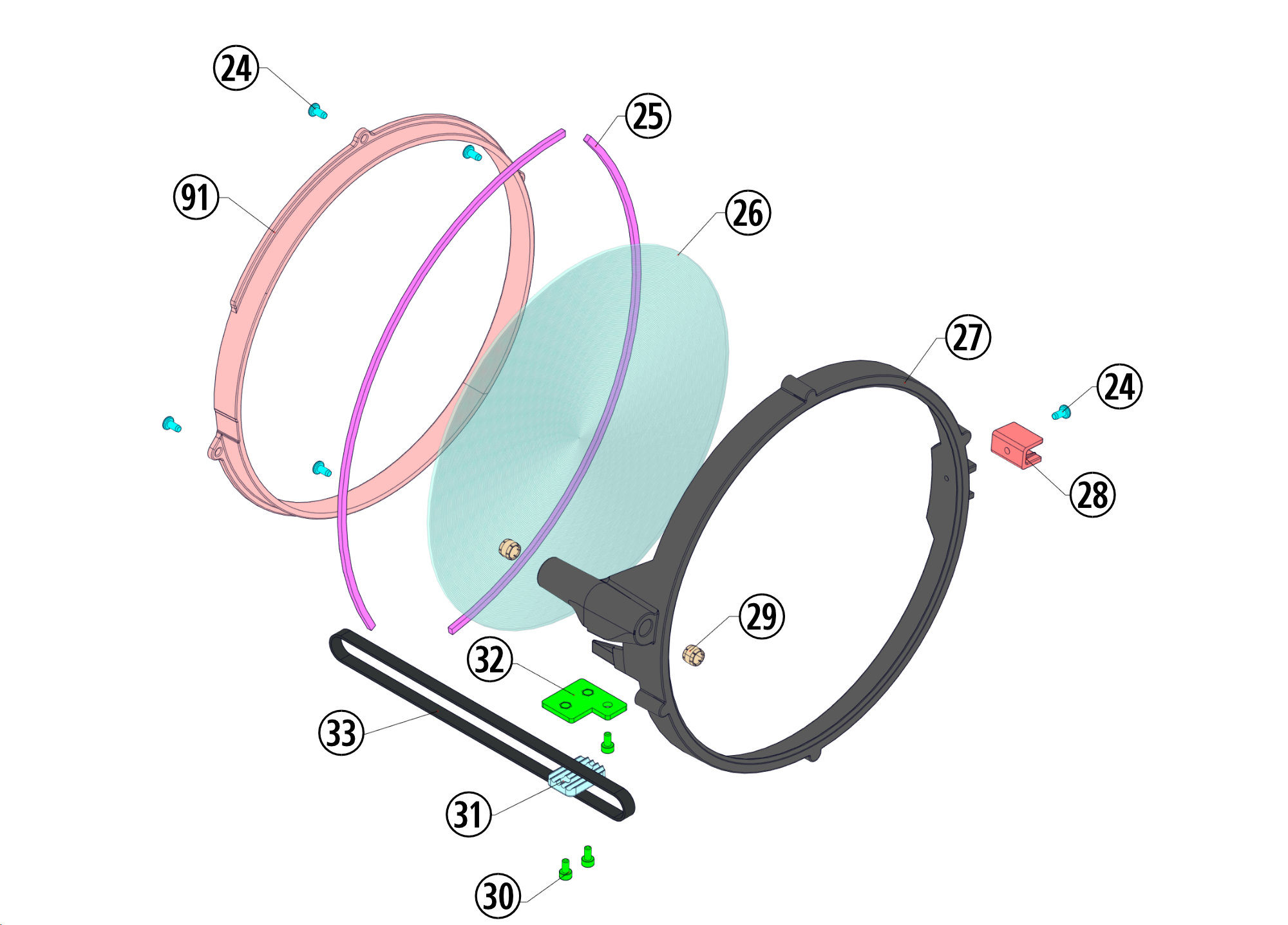

Zoom lens assembly
|
| No |
Part Number |
Description |
| 24 |
HWM1745 |
Screw M3 x 6mm |
| 25 |
7417A4009 |
Lens dampener |
| 26 |
7460A4043 |
Fresnel lens |
| 27 |
7417A3017 |
Lens holder |
| 28 |
7417A4001 |
Lens slider |
| 29 |
HWM6042 |
Bushing (plastic) |
| 30 |
HWM1853 |
Screw M3 x 6mm |
| 31 |
2500A3013 |
Belt clamp |
| 32 |
7417A3008 |
Belt carriage |
| 33 |
HWM979 |
Zoom belt |
| 91 |
7417A4008 |
Lens clamp |
|
Zoom motor assembly
|
| No |
Part Number |
Description |
| 34 |
HWM1853 |
Screw M3 x 6mm |
| 35 |
HWM1794 (V)
HWM1950 (Max) |
Screw M4 x 6mm
Screw M4 x 8mm |
| 36 |
7417A3105 |
Motor mount |
| 37 |
B2142 |
Zoom motor |
| 38 |
HWM6029 |
Snap ring 5mm |
| 39 |
2500A2022 |
Belt drive pulley |
| 40 |
2500A3127 |
Idler shaft 5mm |
| 41 |
HWM1855 |
Screw M4 x 10mm |
| 42 |
7417A3010 |
Tension spring bracket |
| 43 |
HW7499 |
Spring 1" |
| 44 |
HWM1656 |
Nut M5 |
|
Front and back plates on electronics
|
| No |
Part Number |
Description |
| 48 |
HWM1745 (V)
HWM1546 (Max) |
Screw M3 x 6mm
Screw M3 x 8mm |
| 49 |
7417A4014 |
Light blocker plate |
| 50 |
HWM10023 |
Screw M3 x 8mm |
| 51 |
HWM1950 |
Screw M4 x 8mm |
| 52 |
HWM2108 |
Screw M3 x 10mm |
| 53 |
See next section |
AC power input |
| 54 |
HWM1151 |
Nut M4 |
|
AC power input detail
|
| No |
Part Number |
Description |
| 55 |
J2525
V - all
Max - ETL only |
Power assembly bracket |
| 56 |
J2513
V - all
Max - ETL only |
Power In/Thru Assembly
|
| 57 |
7417B5608
Max CE only |
AC input assembly
|
|
Fan in bottom casing
|
| No |
Part Number |
Description |
| 58 |
HWM1151 |
Nut M4 |
| 59 |
7417B2001 |
Fan + harness |
| 60 |
7417A3001 🎨 |
Lower housing |
| 61 |
HWM10023 |
Screw M3 x 8mm |
| 62 |
2510B5609 |
Sensor |
| 63 |
7417A3014 |
Fan bracket |
|

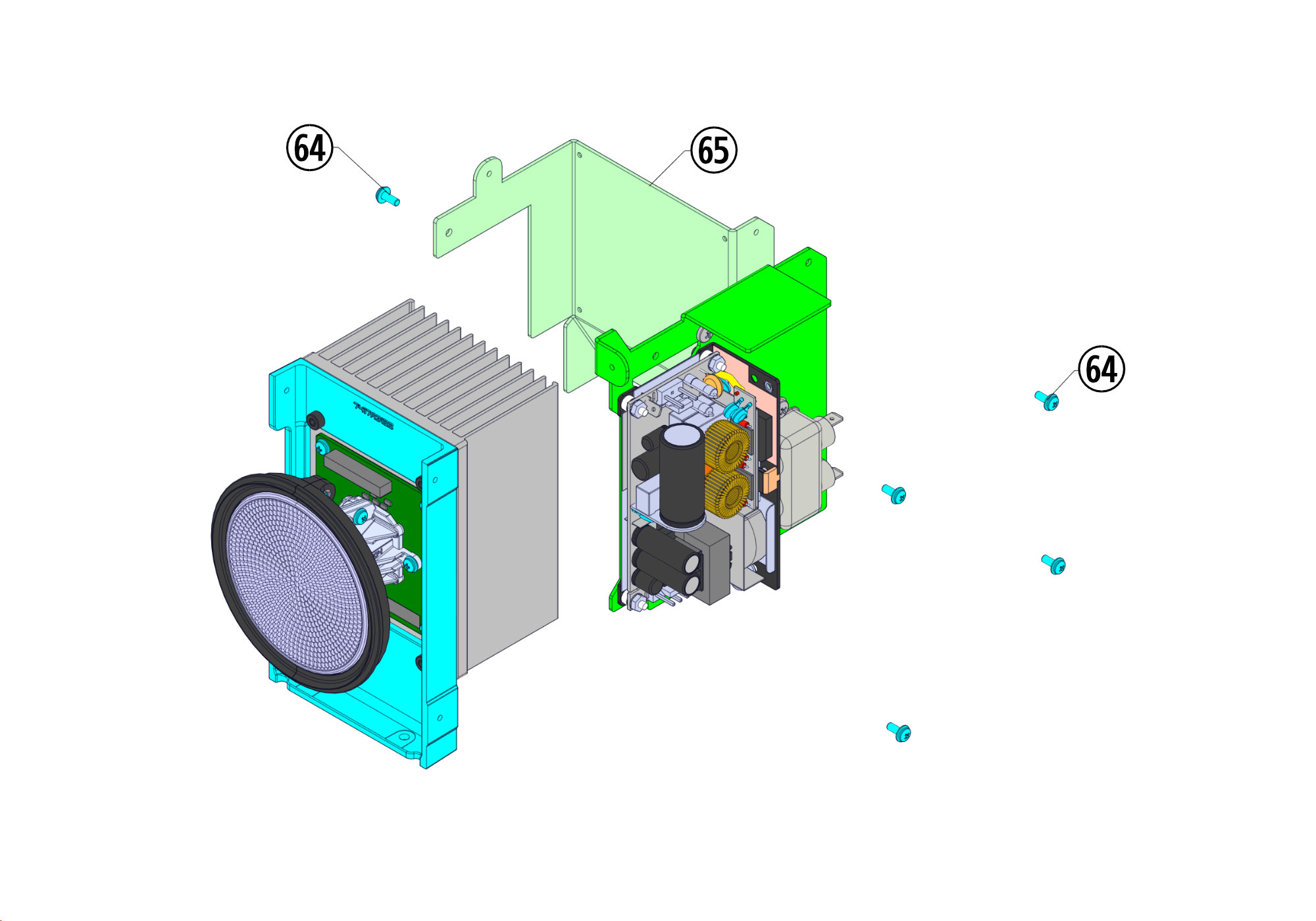

PSU tray and array heat sink combination
|
| No |
Part Number |
Description |
| 64 |
HWM1546 |
Screw M3 x 8mm |
| 65 |
7417A3015 |
Fan baffle |
|
Array, optics and heat sink
|
| No |
Part Number |
Description |
| 66 |
7417A3103 |
Heatsink |
| 67 |
7417A3122 |
Heatsink bracket |
| 68 |
HWM1854 |
Screw M4 x 8mm |
| 69 |
Kit, see below |
LED Array |
| 70 |
HWM1546 |
Screw M3 x 8mm |
| 71 |
7417A3104 (V)
7417A3026 (Max) |
Mixing tube half
(2 per fixture) |
| 72 |
7417A4003 (V)
7417A4017 (Max) |
Reflector half
(2 per fixture)
|
| 73 |
7417A4004 (V)
7417A4018 (Max) |
Lens holder half
(2 per fixture) |
| 74 |
7417A4015 |
Spiral tandem lens |
|
PSU and tray
|
| No |
Part Number |
Description |
| 75 |
7417A3012 |
PSU Tray |
| 76 |
HWM10062 |
Screw M3 x 5mm |
| 77 |
HWM1893 |
Screw M4 x 4mm |
| 78 |
FL158
(non-Max CE only) |
Line filter
|
| 79 |
PS534 |
Power supply |
|
Control card and rear UI panel
|
| No |
Part Number |
Description |
| 80 |
7417A3013 |
Control card tray |
| 81 |
N1111 |
Antenna mount |
| 82 |
7417A3016 |
Rear UI panel |
| 83 |
HWM1133 |
Screw M2.9 x 12mm |
| 84 |
7417A4010 (V) 🎨
7417A4022 (Max) 🎨 |
UI overlay |
| 85 |
7462B5609 |
NFC PCB |
| 86 |
7417B5605 |
User Interface PCB |
| 87 |
HWM304 |
Screw M3 x 6mm |
| 88 |
Kit, see below |
Control card |
| 89 |
HW6782 |
Plastic bushing |
| 90 |
HWM1151 |
Nut M4 |
|
Control card and array kits
Array calibration is held on the control card, so array and control card must always be replaced as a pair from the same kit
Each kit contains the array, control card, the thermal pads for each of these, and some spare screws. Re-use existing screws and wiring harnesses
-x.x.x represents the firmware version pre-installed on the control card. Contact your dealer or ETC office to see which version is currently shipping
|
| Fresnel V w/ Multiverse |
7417K1002-x.x.x |
| Fresnel V w/o Multiverse |
7417K1003-x.x.x |
| Fresnel V Max w/ Multiverse |
7417K1004-x.x.x |
| Fresnel V Max w/o Multiverse |
7417K1005-x.x.x |
|

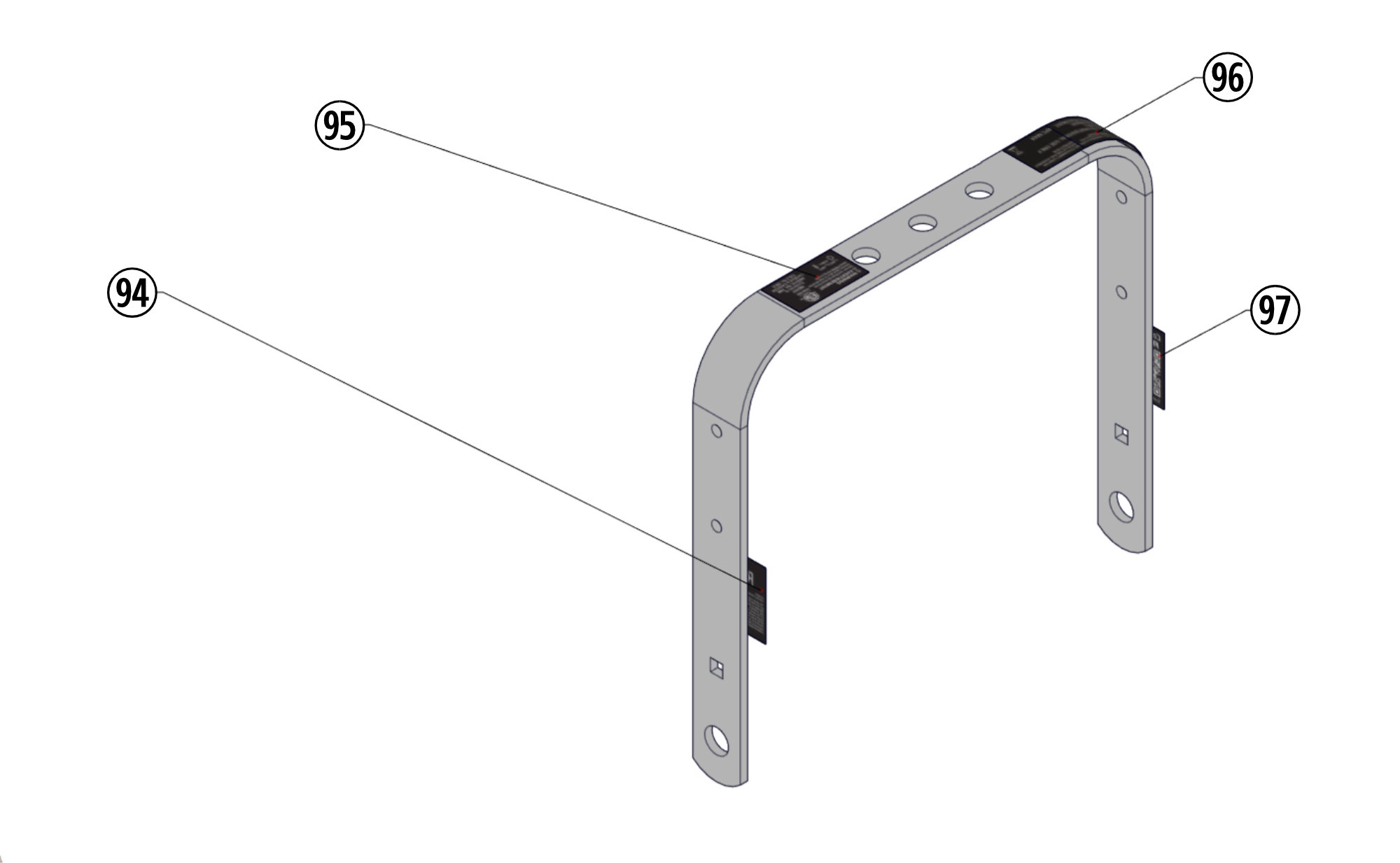

Yoke labels
Fresnel V
Fresnel V Max
🎨 All labels available in black or white (add -1)
|
Fresnel V
| No |
Part Number |
Description |
| 91 |
Factory Replacement Only
|
Regulatory label 1 (all units) |
| 92 |
7417A4013 |
QR code label (all units) |
| 93 |
Service Center Replacement Only
|
FCC label (units with Multiverse only) |
| Service Center Replacement Only
|
FCC label (units w/o Multiverse only) |
Fresnel V Max
| 93 |
Service Center Replacement Only
|
FCC label (units with Multiverse only) |
| Service Center Replacement Only
|
FCC label (units w/o Multiverse only) |
| 95 |
Requires Factory Replacement
|
Regulatory label (ETL) |
| Service Center Replacement Only
|
Regulatory label (CE) |
| 96 |
Requires Factory Replacement
|
Regulatory label (all units) |
| 97 |
7417A4013 |
QR code label (all units) |
|
