ColorSource Par Exploded Diagrams

Last updated
Save as PDF

The 3 variants of ColorSource Par (Regular, Deep Blue and Pearl) share most of their parts in common. Differences are called out below

Parts with a 🎨 can have a suffix added for different colours. For example:

7412A3008 yoke (black)
7412A3008-1 yoke (white)
7412A3008-5 yoke (silver)

Yoke and outer body

No	Part Number	Description
1	7412A3008 🎨	Yoke (bare)^a
2	HW5125	Bolt 5/16-18 .75^b
3	7060A3016	Clutch plate
4	HWM1986	Screw M4 x 8mm
5	HW522	Flat washer 1/4"
6	HWM2001	Bolt M6 x 14mm hex
7	HW8144🎨	Tilt lock handle^b

^a This fixture doesn't use yoke stickers

^b Units manufactured before 2017 may have metric-threaded tilt lock handles and bolts. These are no longer available. Replace both parts if needed. The washer is unchanged

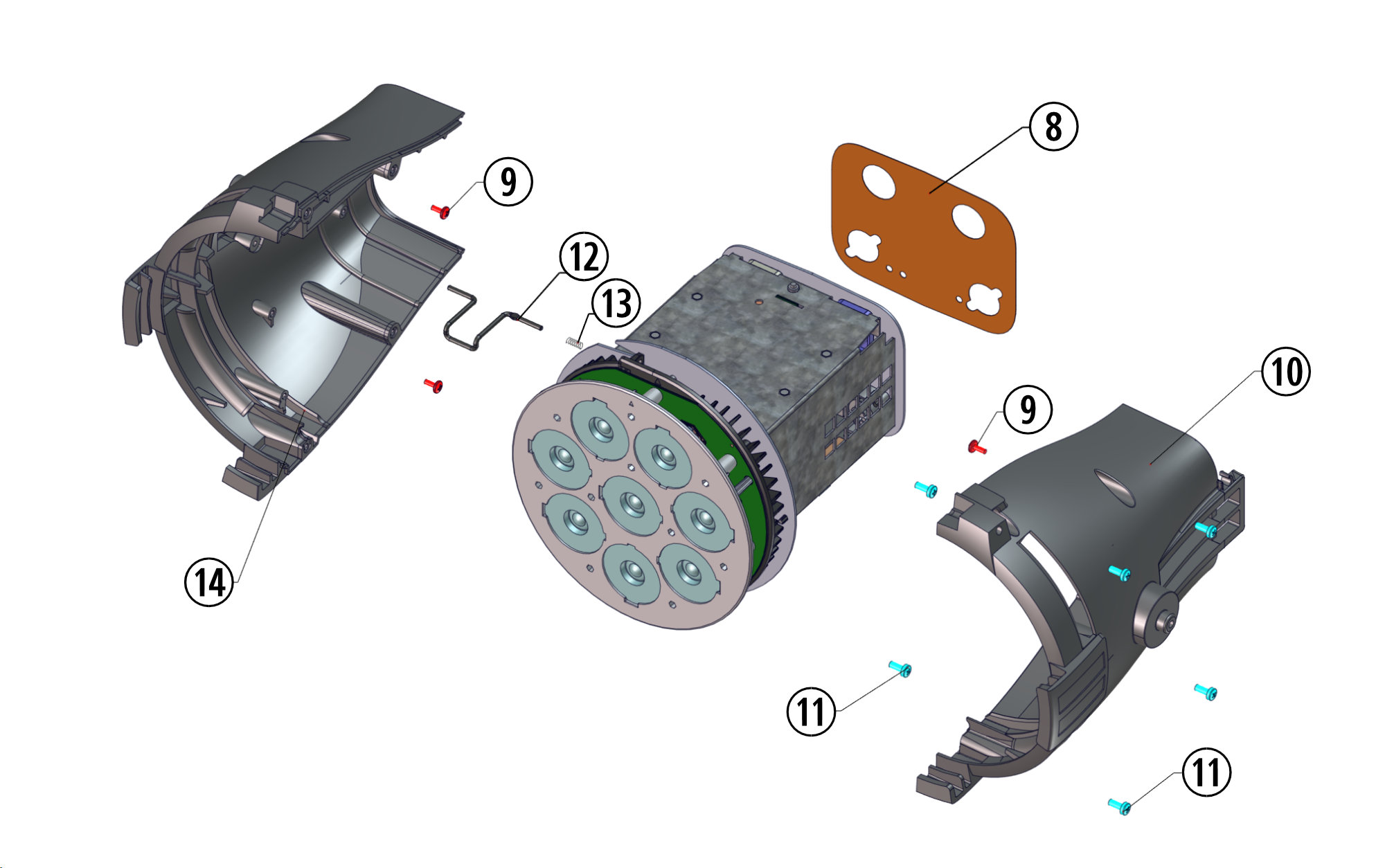

Body Shell

No	Part Number	Description
8	Factory Replacement Only	Rear UI Sticker
9	HWM1950	Screw M4 x 8mm^c
10	7412A3001🎨	Left housing
11	HWM1948	Screw M4 x 10mm ^c
12	7412A3010	Gel clip
13	HW750	Gel clip spring
14	7412A3002🎨	Right housing
	7412A2001🎨	Right housing including clutch plate (3) and screws (4), pre-assembled

^c The heads and exact lengths of these screws have varied, but the threads have always been M4. The listed screws have Torx 20 heads and can be used with fixtures of any age

Front/array assembly

CS Par Exploded 3.jpg

No	Part Number	Description
15	7412A4001	Lens holder with inserts
16	OP2077	Lens (8 per fixture)
17	Kit, see below	LED array
18	7412A3103	Heatsink
19	HW6782	Plastic bushing (array harness)
20	7412A3007	Fan bracket
21	Contact tech service	Fan
22	HWM1600	Screw M4 x 30mm
23	HWM1662	Screw M4 x 8mm

Control card & PSU assembly

CS Par Exploded 4.jpg

No	Part Number	Description
22	HWM1671	Screw M3.5 x 6mm
23	Kit, see below	Control card
24	HWM1133	Screw M2.9 x 12mm
25	7412A3004	UI panel
26	HWM2108	Screw M3 x 10mm
27	7412B5703	Powercon assembly
28	7412A3005	Electronics frame
29	PS404	Power supply

Control card and array kits

Array calibration is held on the control card, so array and control card must always be replaced as a pair from the same kit

Each kit contains the array, control card, thermal pads, and some spare screws. Re-use existing screws and wiring harnesses

⚠️ - when replacing the control card, if you currently have a 3-wire fan (12V), you'll also need to order a new fan. Contact ETC tech service

ColorSource Par XLR	7412K1003-x.x.x
ColorSource Par Deep Blue XLR	7412K1005-x.x.x
ColorSource Par Pearl XLR	7412K1007-x.x.x

Kits may have different firmware versions loaded. Ask your ETC office or dealer which version is current and/or in stock in your region.

Contact ETC tech service if you require an RJ45 variant

Other parts not shown on diagrams

Part Number	Description
J61122-F	Male XLR connector on control card (requires soldering)
J61121-F	Female XLR connector on control card (requires soldering)
S621-F	Up/Down/Mode switch on control card (requires soldering)
7412B7001	Control card to array wiring harness

Contact ETC tech service for any other parts, including wiring not listed here
