ColorSource Spot Jr Exploded Diagrams
The 2 variants of ColorSource Spot Jr (Regular and Deep Blue) share most of their parts in common. Differences are called out below
Parts with a 🎨 can have a suffix added for different colours. For example:
7412A3008 yoke (black)
7412A3008-1 yoke (white)
Note: this fixture and its parts are only available in black or white
ColorSource Jr fixtures use plastic components, and taptite screws that screw into these components. Repeated dis- and re-assembly or overtightening will weaken the plastic and cause it to fail. Remove and re-insert screws very gently, and only as many times as required to repair your fixture. Do not use power tools under any circumstances
Top casing and external fixings |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical assembly attachment |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens rails
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Array, beam tube and heatsink
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shutter assembly
|
a The complete shutter kit contains all the parts shown here, plus a fourth shutter blade complete with its handle, pre-assembled |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

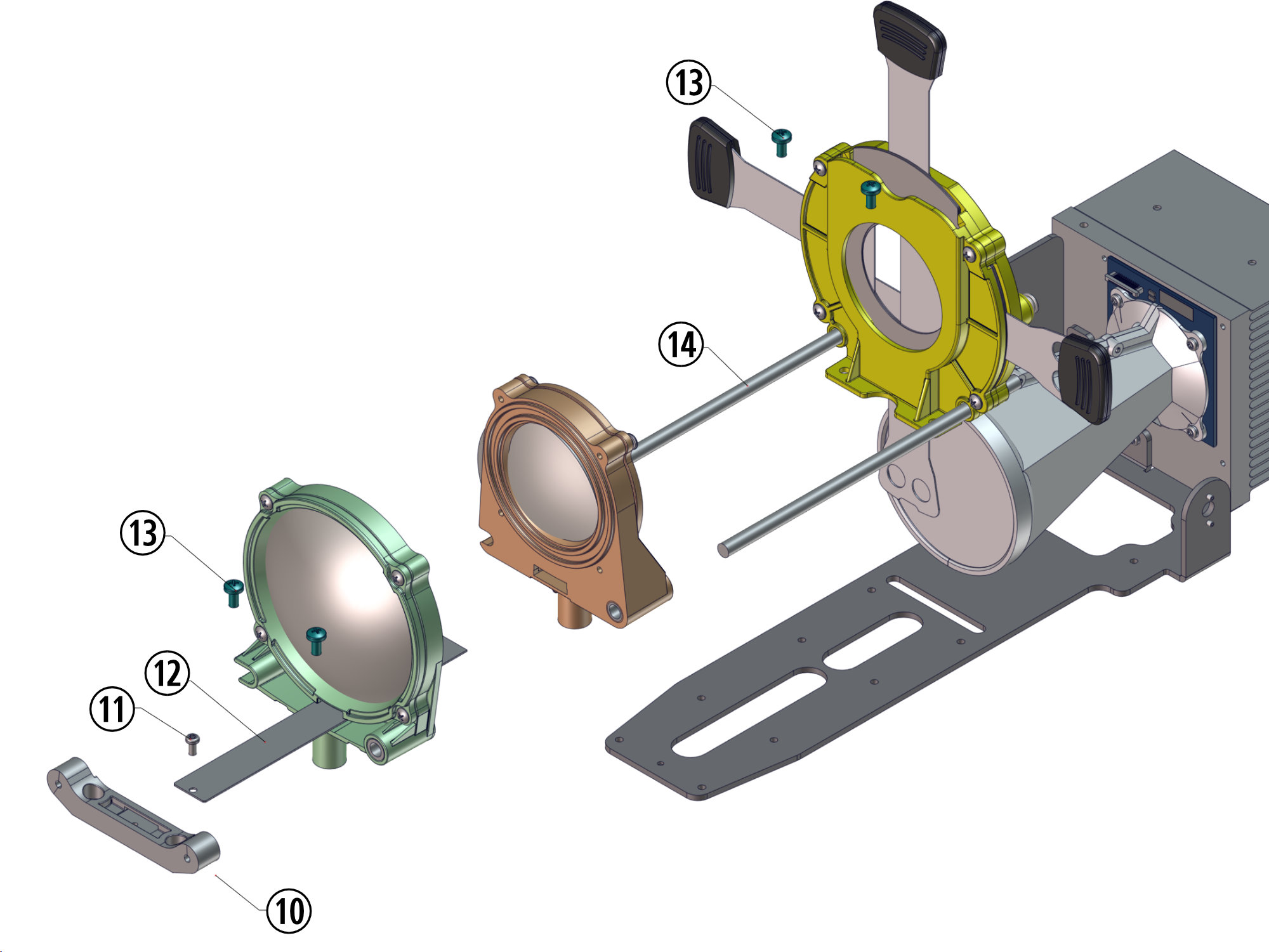

Lens assemblies
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Yoke and fixings
|
a Bare painted yoke - this fixture doesn't use yoke stickers. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronics assembly attachment
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Control card and fan
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

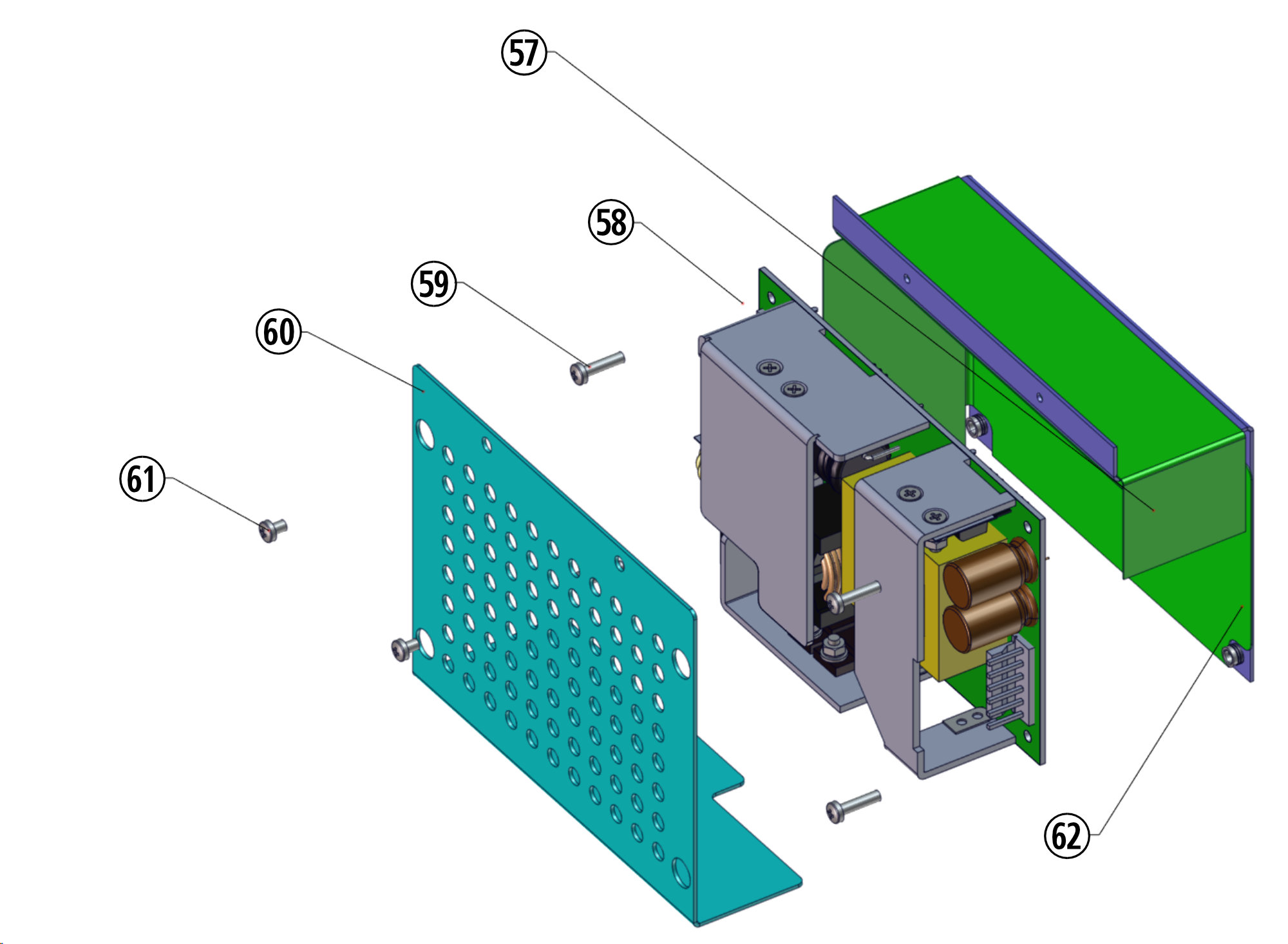

Power supply (original)Replace power supply like-for-like, as the mounting shown here, and part 53 above, differ between the two types
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power supply (new)Replace power supply like-for-like, as the mounting shown here, and part 53 above, differ between the two types
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Control card and array kitsArray calibration is held on the control card, so array and control card must always be replaced as a pair from the same kit Each kit contains the array, control card, thermal pads, and some spare screws. Re-use existing screws and wiring harnesses |
Kits may have different firmware versions loaded. Ask your ETC office or dealer which version is current and/or in stock in your region.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Other parts not shown on diagrams
|
Contact ETC tech service for any other parts, including wiring not listed here |
