ColorSource Spot Exploded Diagrams
- Last updated
-
-
Save as PDF
The 3 variants of ColorSource Spot (Regular, Deep Blue and Pearl) share most of their parts in common. Differences are called out below
Parts with a 🎨 can have a suffix added for different colours. For example:
7460A3011 yoke (black)
7460A3011-1 yoke (white)
7460A3011-5 yoke (silver)
NB: tilt lock handle is only available in black or white
Barrel screws
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 1 |
HW5832 |
Top barrel screw |
|
|
|
| 2 |
7060A4008-01 |
Bottom barrel thumb screw |
|
|
|
|
Yoke
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 3 |
HW5126 |
Flat washer 5-16 |
|
|
|
| 4 |
HW5193 |
Yoke bolt 5-16 |
|
|
|
| 5 |
HW8144 🎨 |
Tilt lock handle |
|
|
|
| 6 |
HW5125 |
Tilt lock bolt 5-16 |
|
|
|
| 7 |
7460A3011 🎨 |
Yoke (bare)a |
|
|
|
a Bare painted yoke not including stickers. See stickers section below to restore a yoke to factory condition
|

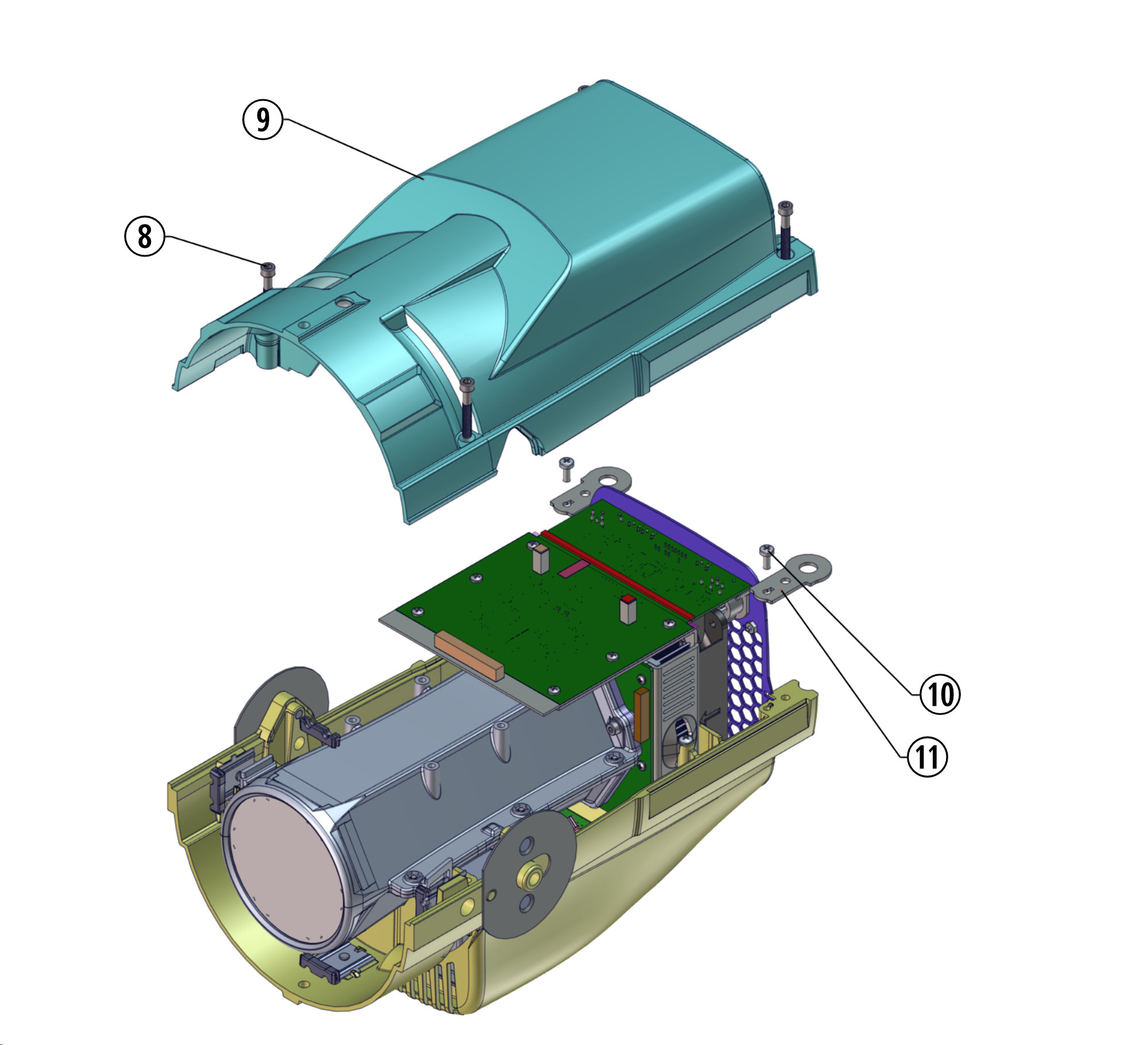

Top casing
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 8 |
Contact Tech Service |
Top body screw |
|
|
|
| 9 |
Contact Tech Service 🎨 |
Top body metalwork |
|
|
|
| 10 |
HWM1136 |
M4 Screw |
|
|
|
| 11 |
7413A3010 |
Safety cable loop |
|
|
|
|
Control card mounting
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 12 |
7413A3005 |
Screw clamp |
|
|
|
| 13 |
HWM1949 |
Screw M4 (mixing tube) |
|
|
|
| 14 |
HWM1671 |
Screw M3.5 for control card
4 included in kit |
|
|
|
| 15 |
Kit, see below |
Control card |
|
|
|
| 16 |
7413A4003 (Std)
7413A4008 (DB)
7413A4011 (Prl) |
Rear label sticker |
|
|
|
| 17 |
HWM1133 |
Screw M2.9 (DMX connector) |
|
|
|
| 18 |
HW196 |
Nut 4-40 |
|
|
|
| 19 |
7413A3008 🎨 |
Rear grille |
|
|
|
| 12 |
7413A3005 |
Screw clamp |
|
|
|
|
PSU and bottom casing
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 30 |
HWM1671 |
M3.5 Screw (holds PSU to tray) |
|
|
|
| 20 |
FL141
CE Only |
Line filter |
|
|
|
| 21 |
HW196
CE Only |
4-40 Nut for line filter |
|
|
|
| 22 |
7413B5604 |
Powercon in/thru PCB |
|
|
|
| 23 |
Contact Tech Service 🎨 |
Lower housing metalwork |
|
|
|
| 24 |
HWM2108 |
M3 screws for powercon PCB |
|
|
|
| 25 |
7413A3009
CE Only |
PSU tray (CE) |
|
|
|
| 26 |
7413A3006
ETL Only |
PSU tray (ETL) |
|
|
|
| 27 |
HWM1950 |
M4 Screw (holds tray to body) |
|
|
|
| 28 |
7413A4001 |
PSU Insulator |
|
|
|
| 29 |
PS418 |
Power supply - 56V 250W |
|
|
|
| 30 |
HWM1671 |
M3.5 Screw (holds PSU to tray) |
|
|
|
|
Array, optics and fan
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 31 |
7413A2002 |
Mixing tube |
|
|
|
| 32 |
HWM1663 |
M4 Screw |
|
|
|
| 33 |
HWM1668 |
M4 Washer |
|
|
|
| 34 |
7460A3081 |
Lens spring retainer |
|
|
|
| 35 |
7460A4061 |
Glass primary optic |
|
|
|
| 36 |
7460A4062 |
Glass optic holder |
|
|
|
| 37 |
HWM2235 |
M3 Screw for array
4 included in kit |
|
|
|
| 38 |
Kit, see below |
Array PCB |
|
|
|
| 39 |
7413A3003 |
Heat sink |
|
|
|
| 40 |
HWM1609 |
M5 Screw for fan (4 total) |
|
|
|
| 41 |
7413A3007 |
Array frame |
|
|
|
| 42 |
Contact Tech Service |
Fan |
|
|
|
|
Control card and array kits
Array calibration is held on the control card, so array and control card must always be replaced as a pair from the same kit
Each kit contains the array, control card, thermal pads, and some spare screws. Re-use existing screws and wiring harnesses
|
| 7413K1003-x.x.x |
Standard - XLR |
| 7413K1004-x.x.x |
Standard - RJ45 |
| 7413K1005-x.x.x |
Deep Blue - XLR |
| 7413K1006-x.x.x |
Deep Blue - RJ45 |
| 7413K1007-x.x.x |
Pearl - XLR |
| 7413K1008-x.x.x |
Pearl - RJ45 |
Choose the kit that matches your array type and DMX connector
-x.x.x represents the firmware version pre-installed on the control card. Contact your dealer or ETC office to see which version is currently shipping
|

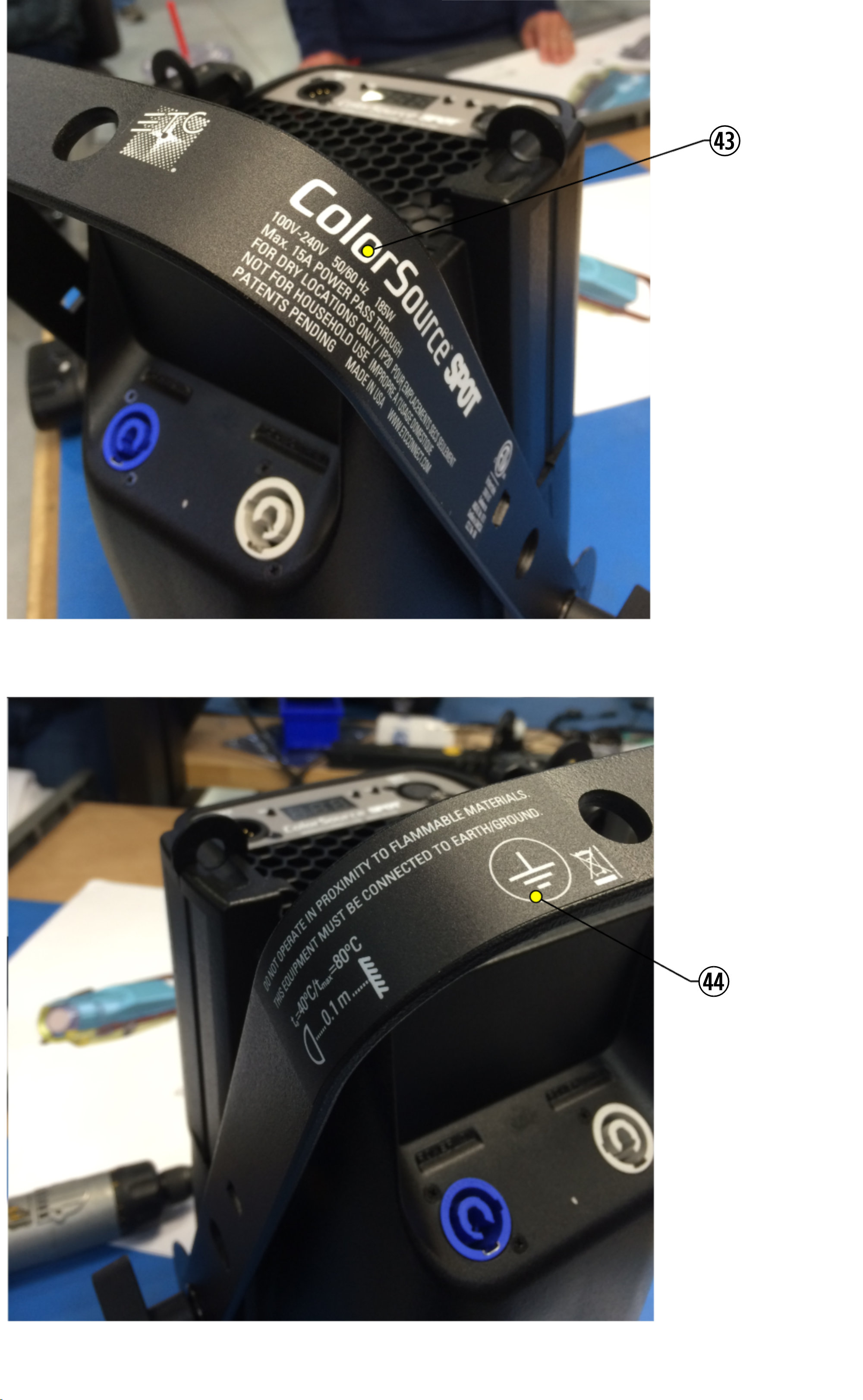

Yoke Labels
🎨 All labels available in black or white (add -1) |
| No |
Part Number |
Description |
US |
EU |
UK |
| 43 |
Factory Replacement Only
|
Product label (Standard, ETL) |
|
|
|
Service Center
Replacement Only
|
Product label (Standard, CE) |
|
|
|
|
Factory Replacement Only
|
Product label (DB, ETL) |
|
|
|
Service Center
Replacement Only
|
Product label (DB, CE) |
|
|
|
|
Factory Replacement Only
|
Product label (Pearl, ETL) |
|
|
|
Service Center
Replacement Only
|
Product label (Pearl, CE) |
|
|
|
| 44 |
7413A4005 |
Warning label (all variants) |
|
|
|
|
Not shown in diagrams
For other wiring harnesses and any parts not shown in this article, please contact ETC Technical Service
|
| No |
Part Number |
Description |
US |
EU |
UK |
| |
7413B7004 |
Black/red wiring harness, PSU to control card |
|
|
|
| |
7413B7006 |
Earth bond - safety cable loop to grille |
|
|
|
|
