ColorSource Spot V Exploded Diagrams
- Last updated
-
-
Save as PDF
Parts with a 🎨 can have a suffix added for different colours. For example:
7460A3011 yoke (black)
7460A3011-1 yoke (white)
7460A3011-5 yoke (silver)
NB: plastic parts and stickers are generally available only in black and white
Barrel screws
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 1 |
HW5832 |
Top barrel screw |
|
|
|
| 2 |
7060A4008-01 |
Bottom barrel thumb screw |
|
|
|
|
Yoke
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 3 |
HW8144 🎨 |
Tilt lock handle |
|
|
|
| 4 |
HW5193 |
Yoke bolt 5-16 |
|
|
|
| 5 |
HW5126 |
Flat washer 5-16 |
|
|
|
| 6 |
HW5125 |
Tilt lock bolt 5-16 |
|
|
|
| 7 |
7460A3011 🎨 |
Yoke (bare)a |
|
|
|
a Bare painted yoke not including stickers. See stickers section below to restore a yoke to factory condition
|

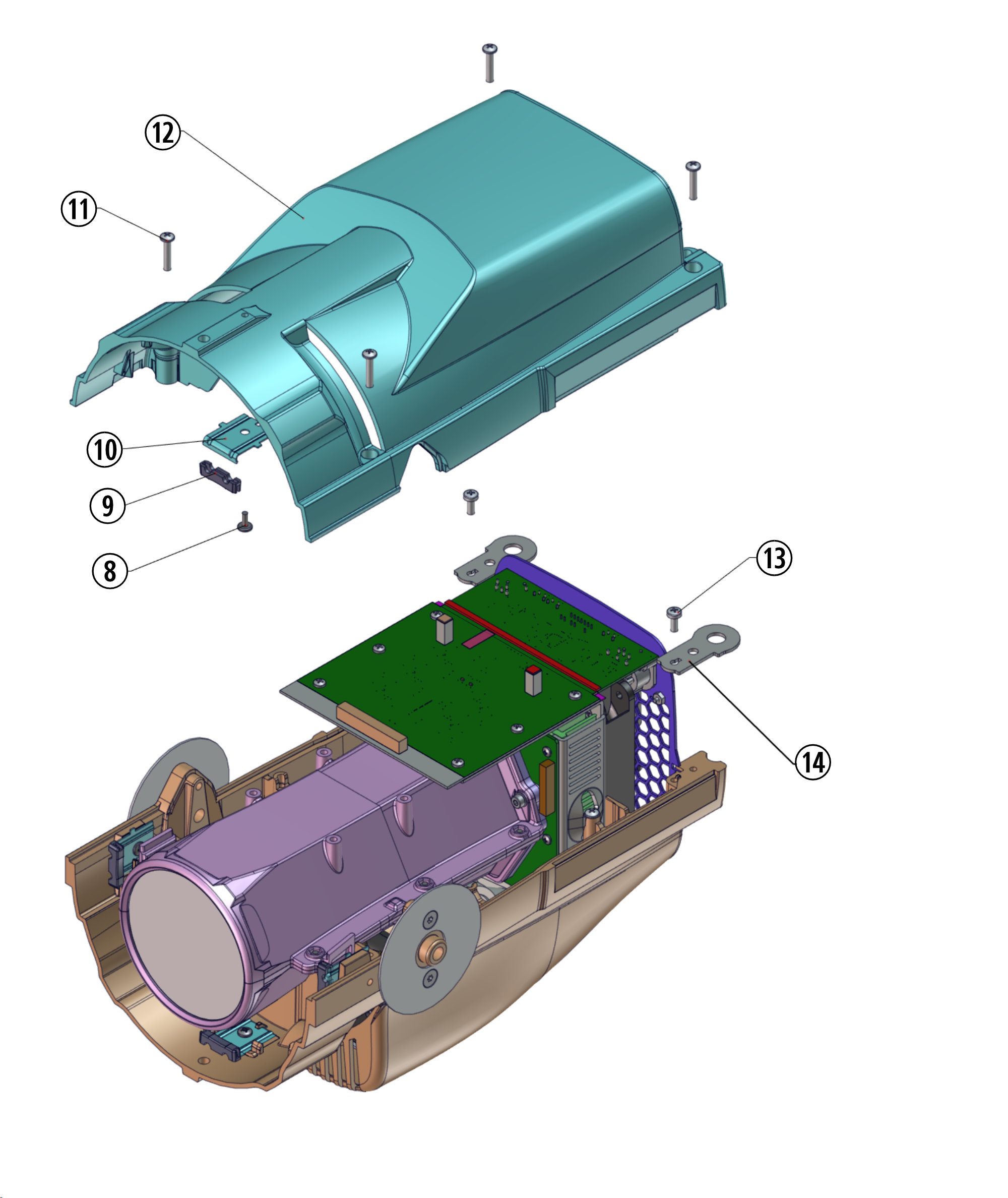

Top casing
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 8 |
HWM1950 |
Screw M4 x 8mm |
|
|
|
| 9 |
7060A4010 |
Bushing gate |
|
|
|
| 10 |
7413A3004 |
Barrel rotation clip |
|
|
|
| 11 |
HWM10017 |
Screw M4 x 20mm |
|
|
|
| 12 |
7423A3003 🎨 |
Upper housing |
|
|
|
| 13 |
HWM1948 |
Screw M4 x 10mm |
|
|
|
| 14 |
7413A3010 🎨 |
Safety bond loop |
|
|
|
|
Control card mounting
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 25 |
7413A3005 |
Screw clamp |
|
|
|
| 16 |
HWM1949 |
Screw M4 x 16mm (mixing tube) |
|
|
|
| 17 |
Kit, see below |
Control card |
|
|
|
| 18 |
HWM1671 |
Screw M3.5 for control card
4 included in kit |
|
|
|
| 19 |
HWM1971 |
Screw M4 x 12mm (heatsink) |
|
|
|
| 20 |
7423A4005 |
Rear label sticker |
|
|
|
| 21 |
7423A4001 |
NFC & antenna holder |
|
|
|
| 22 |
7423B5603 |
NFC PCB |
|
|
|
| 23 |
HWM1133 |
Screw M2.9 x 12mm Plastite (XLR mounts) |
|
|
|
| 24 |
N1129 |
Multiverse antenna mount & wire |
|
|
|
| 25 |
N1084 |
Multiverse antenna |
|
|
|
| 26 |
HW1253 |
Screw 4-20 x 5/16 Plastite (holds NFC holder to grille) |
|
|
|
| 27 |
7413A3008 🎨 |
Rear grille |
|
|
|
| 28 |
HW196 |
Nut 4-40 |
|
|
|
|
PSU and bottom casing
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 29 |
HWM10062 |
Screw M3 x 5mm |
|
|
|
| 30 |
7423A3001 |
PSU tray |
|
|
|
| 31 |
HWM1950 |
Screw M4 x 8mm |
|
|
|
| 32 |
PS539 |
Power supply |
|
|
|
| 33 |
J2525 |
Power connector bracket |
|
|
|
| 34 |
J2513 |
Power connector in/thru assembly (True1) |
|
|
|
| 35 |
HWM2108 |
Screw M3 x 10mm |
|
|
|
| 36 |
HWM1984 |
Screw M5 x 10mm |
|
|
|
| 37 |
7470A3019 |
Clutch plate |
|
|
|
| 38 |
7423A3002 🎨 |
Bottom housing |
|
|
|
| 39 |
7413A3004 |
Barrel rotation clip |
|
|
|
| 40 |
7060A4010 |
Bushing gate |
|
|
|
|
Array, optics and fan
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 41 |
7413A2002 |
Mixing tube |
|
|
|
| 42 |
HWM1663 |
M4 Screw |
|
|
|
| 43 |
HWM1668 |
M4 Washer |
|
|
|
| 44 |
7460A3081 |
Lens spring retainer |
|
|
|
| 45 |
7460A4061 |
Glass primary optic |
|
|
|
| 46 |
7460A4062 |
Glass optic holder |
|
|
|
| 47 |
HWM2235 |
M3 Screw for array
4 included in kit |
|
|
|
| 48 |
Kit, see below |
Array PCB |
|
|
|
| 49 |
7413A3003 |
Heat sink |
|
|
|
| 50 |
HWM1609 |
M5 Screw for fan (4 total) |
|
|
|
| 51 |
7413A3007 |
Array frame |
|
|
|
| 52 |
7423B2001 |
Fan |
|
|
|
|
Control card and array kits
Array calibration is held on the control card, so array and control card must always be replaced as a pair from the same kit
Each kit contains the array, control card, thermal pads, and some spare screws. Re-use existing screws and wiring harnesses
|
| With Multiverse |
7423K1003-x.x.x |
| Without Multiverse |
7423K1004-x.x.x |
-x.x.x represents the firmware version pre-installed on the control card. Contact your dealer or ETC office to see which version is currently shipping
|
Yoke Labels
Coming soon!
🎨 All labels available in black or white (add -1)
|
| No |
Part Number |
Description |
US |
EU |
UK |
|
