Portable Irideon FPZ Exploded Diagrams

Parts with a  🎨 can have a suffix added for different colours. For example:

7191A3049          yoke (black)
7191A3049 -1    yoke (white)
7191A3049 -5    yoke (silver)

NB: plastic parts and stickers are generally available only in black and white

Irideon FPZ comes in many different variants, and it is often possible to order either an entire sub-assembly, or the parts within that sub-assembly. The guide below is slightly different to other fixtures to take that fact into account

Top level components

No Part Number Description 1 7191A3043 Support washer 2 M7412 RJ45 blind plug  (qty 2) 3 Factory Replacement Only Why? Driver box sticker   4 HWM1611 Screw M4 x 8mm 5 See breakdown Driver box 6 7191A2000 Gobo holder 7 See breakdown Shutter gate 8 See breakdown Lens tube 9 HWM1812 Screw M3 x 30mm 10 See breakdown Fixture body

Driver Box

Driver box components  No Part Number Description 1 7191A4114 🎨 Driver box housing top 2 HW2340 Screw 6/32 x 3/8" Taptite 3 7191A4011 🎨 Control knob cap 4 HWM1832 Screw M2.5 x 6mm 5 7191B5603-CFG LED driver PCB - original 7191B5703-CFG LED driver PCB - Plus 6 PS444 Power supply - original (pictured) 7191B5612 Power supply - Plus (original pictured) 7 HW6758 Strain relief - LED output 8 7191A4115 🎨 Driver box housing bottom 9 HW6760 Strain relief - mains input (qty 2)

Fixture body

Fixture body components No Part Number Description 1 7191A3035 🎨 Rear housing cap 2 7191A3029 Strain relief bracket 3 HWM1142 Screw M3 x 6mm 4 HW6758 Strain relief grip 5 HW9498 Clip fastener 6 HW9497 Stud fastener 7 HWM1670 Screw M3 x 10mm 8 7191A3032 🎨 LED housing 9 CR669-F LED 2700K Gallery CR682-F LED 3000K CR670-F LED 3000K Gallery CR684-F LED 4000K CR673-F LED 5000K 10 7191A4044 COB holder insulator 11 7191A4043 COB holder thermal pad 12 7191B2002 COB holder 13 7191A3002 🎨 Yoke bolt 14 HW4251 Flat washer 15 7191A4010 🎨 Yoke degree angle label 16 7191A3034 🎨 Reflector housing 17 HWM1809 Set screw M4 x 12mm 18 HW469 (black) HW487 (white) Flat washer nylon 19 7192A4012 🎨 Yoke knob 20 7191A3049 🎨 Yoke (bare) a 21 HW6906 Bushing  (portable only) 22 7191A4040 Reflector 23 7191A4042 Lens 24 7191A3062 Lens retainer spring 25 7191A3001 Glider mounting bracket 26 7063A4030 Glider 27 HWM3112 Screw M3 x 5mm a Bare painted yoke not including labels. Not all labels can be ordered

Important: If your LED chip doesn't look like the one in the diagram, see COB Conversion Kit below

Shutter Gate & Lens Tube

Complete Shutter Gate and Lens Tube  Part Number Item 7191A2001 🎨 Complete lens tube 7191A2002 🎨 Complete shutter gate HWM1812 Screw to assemble lens tube and shutter gate (2 required)     Shutter gate components No Part Number Description 1 HWM1817 Screw M2 x 8mm 2 HWM1808 Screw M3 x 16mm 3 7191A3009 Rotating gate bracket 4 7191A3017 Locking key 5 7191A3036 🎨 Rear housing 6 HWM1142 Screw M3 x 6mm 7 7191A3015 Locking plate 8 7191A3014 Clamping disc 9 7191A3025 Spring plate 10 7063A3009 Gate plate 11 7191A3020 Gate shim 12 7063A2009 🎨 Shutter blade (including handle)   7063A4020 🎨 Shutter blade handle 13 7063A3008 Divider plate 14 7191A3013 Clamping plate 15 7191A3037 🎨 Front housing 16 7191A4004 🎨 Gobo cover

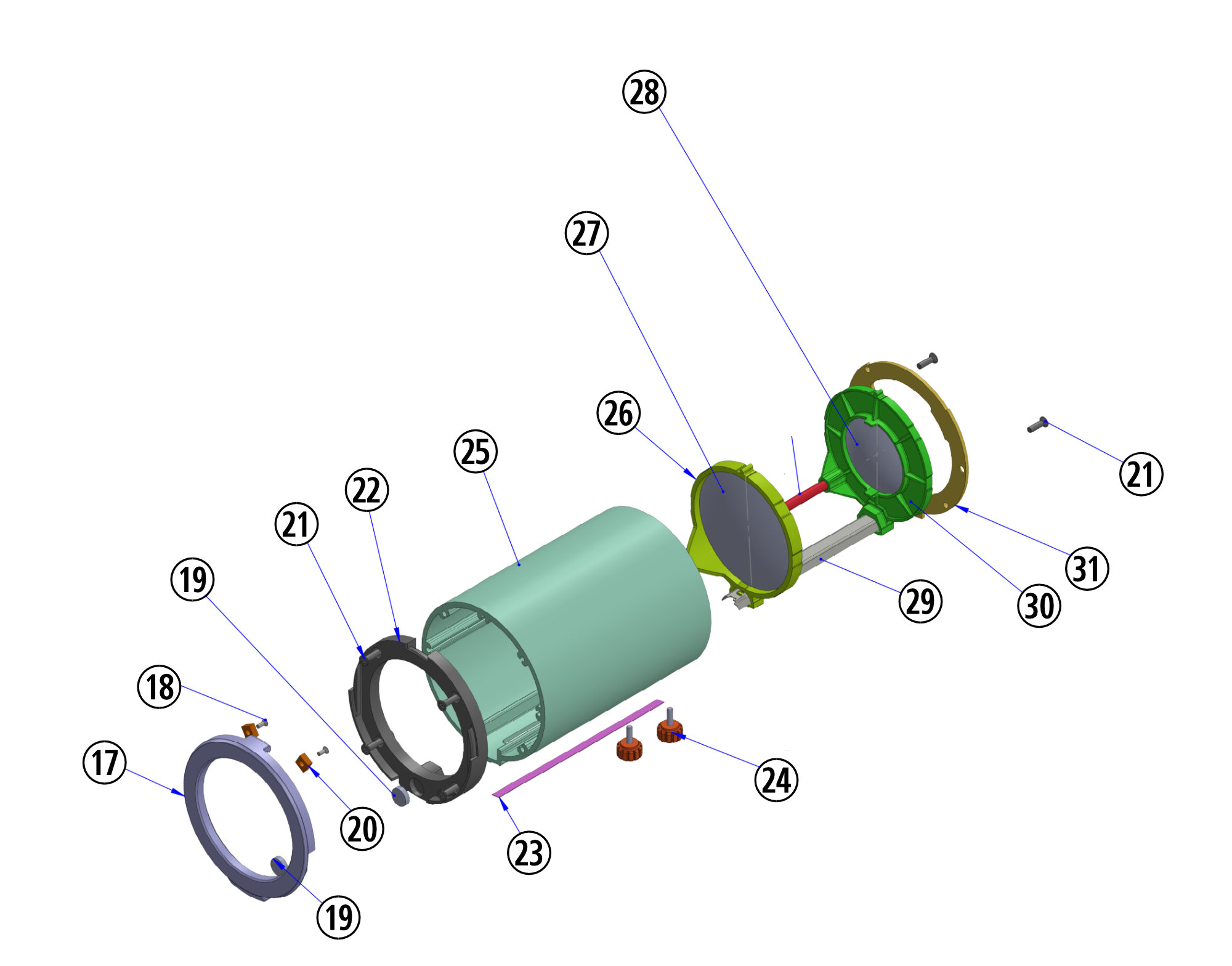

Lens tube components   No Part Number Description 17 Contact ETC 🎨 Media holder 18 HWM1148 Screw M2.4 x 5mm 19 Contact ETC Magnet 20 7191A4007 Silicone pad 21 HWM2108 Screw M3 x 10mm 22 Contact ETC🎨 Media holder bracket 23 7191A4009 Zoom angle sticker 24 7191A4003 🎨 Zoom lens knob 25 7191A3033 🎨 Lens tube body 26 7191A4001 Front lens holder 63mm 27 7063A4076 Front lens 63mm 28 7063A4077 Rear lens 40mm 29 7191A3006 Light blocker bracket 30 7191A4000 Rear lens holder 40mm 31 7191A3005 Rear bracket

COB Conversion Kit

If your Irideon FPZ was manufactured with the old-style LED, mounted on a green-blue PCB, these are no longer available. You will need to use the conversion kit to install the new COB-style LED instead Complete Kit COB Conversion Kit (excluding LED) 7191K1015   Conversion kit contains the parts shown on the left (COB holder parts, new reflector, lens, and holder), plus 2x butt splices and 2x pieces of heat shrink to attach the COB holder wires to the existing wires from the driver. See also the repair guide for this process ⚠️ The kit does not include an LED, order the correct variant from the list below LED Chips Part Number Description CR669-F LED 2700K Gallery CR682-F LED 3000K CR670-F LED 3000K Gallery CR684-F LED 4000K CR673-F LED 5000K
