Source 4WRD Color II Complete Repair Guide
Tools required
- PH2 screwdriver
- PH1 screwdriver
- Wago 2059 tool
Steps to repair
The steps below detail how to strip down a Source 4WRD Color II to the casing. It is recommended to read through the whole document before starting, so as not to unnecessarily dismantle a part that can stay intact.
For any questions or concerns, please contact your local ETC tech service department.
Disconnect mains power before servicing, and wait at least 1 hour before starting work so that capacitors can discharge. Only proceed if you feel comfortable doing so
The "light bulb" part is extremely fragile and can easily be damaged beyond repair. Take extra care when working on this product
Look out for the following symbols in the repair guide
⚠️Warnings - these give advice on avoiding damage to (other) components
ℹ️Information - these give helpful tips to save you work or get into tricky places
🛠️ Reassembly notes - tips when following the instructions in reverse to reassembly the device
Opening the unit
|
1. Remove the 4 screws holding the top cover to the rest of the unit Very carefully lift the top cover over the light bulb and set aside |
|
Replacing the PSU
|
2. Disconnect the DC wires from the control card, using the Wago tool to push into each hole ℹ️ Disconnect only the left pair as shown |
![]() |

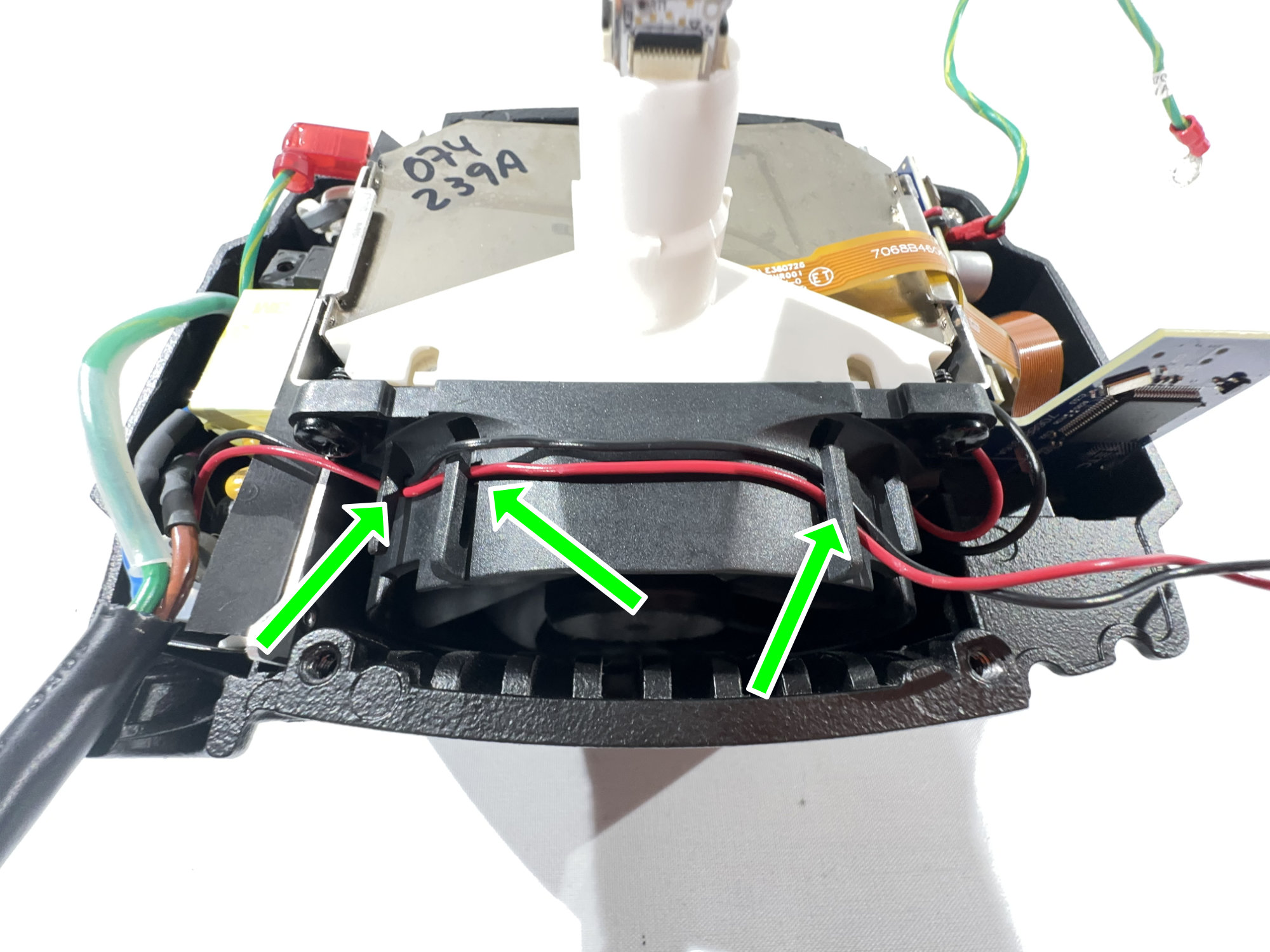

| 3. Remove these wires from the cable guide clips on the fan | ![]() |
|
4. Gently lift the PSU out of the housing ℹ️ The line filter (CE only) and earth bond are still attached to the bottom of the casing, these do not need to be removed to replace the PSU
|
|
| 5. Disconnect the earth bond, AC input, and DC output connectors from the PSU | ![]() |
|
6. Remove the old PSU from the plate and install the new one ℹ️ The PSU is held on by 2 screws and 2 hooks. Be sure to move the earth bond spade (purple arrow) to the new PSU as well |
![]() |
Replacing the control card & array, or driver card
Note: steps 3-6 are not required for this
|
7. Remove the 2 screws from the UI/RJ45 area |
|
|
8. Disconnect the fan wires using the Wago tool Disconnect the ribbon cables from the PCBs by gently lifting the retaining bars
|
|
| 9. Lift the control card and driver card out of the housing together | |
|
10. Completely remove the peaking "Z" knob by unscrewing it counter-clockwise This releases the light engine/heatsink/fan assembly from the housing |
![]() |
| 11. Lift the light engine assembly out of the housing | ![]() |

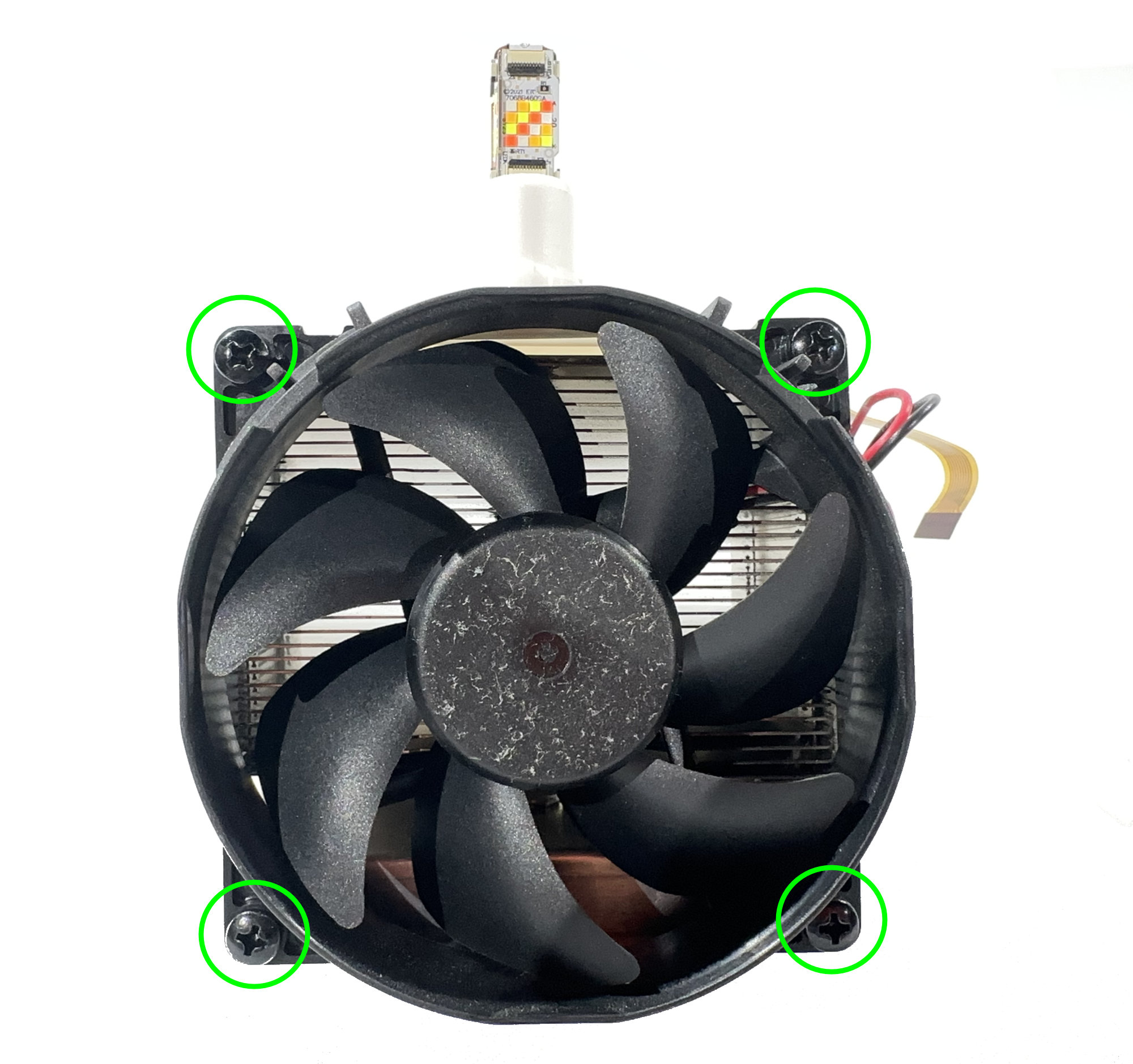

| 12. To replace the fan, remove the 4 screws | ![]() |
Reassembly notes
The Source 4WRD is very compact, and care must be taken during reassembly
|
Ensure the clear window in front of the UI display is in place before replacing the control card
|
|
| Ensure all plates slide fully into the correct runners | ![]() |
| Once the PSU is re-seated, work the excess AC wiring away into the gap, and line up the correct part of the cable with the strain relief metalwork before re-installing the top cover |
|
