Source Four LED Series 3 Exploded Diagrams
- Last updated
-
-
Save as PDF
The variants of Source Four LED Series 3 (Lustr X8 and Daylight HD) share most of their parts in common. Differences are called out below
Parts with a 🎨 can have a suffix added for different colours. For example:
7460A3011 yoke (black)
7460A3011-1 yoke (white)
7460A3011-5 yoke (silver)
NB: tilt lock handle is only available in black or white
Handle
|
| No |
Part Number |
Description |
| 1 |
7462K1023 |
Handle kit (handle and 2 screws) a |
a Handles can only be fitted on fixtures which have the 2 necessary screw holes in the metalwork. Early fixtures were made without these holes, and cannot accept handles
|
Top casing and wireless parts
|
| No |
Part Number |
Description |
| 2 |
HW5832 |
Top barrel screw |
| 3 |
HWM1971
or
HW4261 |
Top casing screw b |
| 4 |
7462B5609 |
NFC PCB |
| |
7462A4013 |
NFC sticker c
not pictured |
| 5 |
N1084 |
Multiverse antenna |
| 6 |
7060A4008-01 |
Bottom barrel thumb screw |
b see Revisions before ordering
c NFC PCB is held in place by NFC sticker, order new sticker if replacing PCB
|
Top casing assembly
|
| No |
Part Number |
Description |
| 7 |
7462A3008 (ETL) 🎨
7462A3052 (CE) 🎨 |
Top casing |
| 8 |
HWM1950
|
Screw M4 x 8mm |
| 9 |
7462B2002
(CE only) |
Line filter |
| 10 |
7462B5607 |
DMX PCB |
| 11 |
7462B5608 |
Power input PCB |
| 12 |
HWM1133 |
Screw M2.9 x 12mm
for DMX PCB |
| 13 |
HWM2108 |
Screw M3 x 10mm
for power PCB |
| 14 |
7413A3004 |
Barrel rotation clip |
| 15 |
7060A4010 |
Bushing gate |
|
Control / UI PCB
|
| No |
Part Number |
Description |
| 16 |
HW2188 |
Screw 6/32 x 1/2 |
| 17 |
See below |
Control card PCB |
| 18 |
7462A3013 |
UI tray |
| 19 |
7462A4020 (Lustr)
7462A4063 (D-HD) |
UI label |
| 20 |
7470A2001 |
Encoder knob cap |
|
PSU and mixing tube
|
| No |
Part Number |
Description |
| 21 |
HWM1971 |
Screw M4 x 12mm
(attaches array assembly to bottom casing) |
| 22 |
HWM1950 |
Screw M4 x 8mm |
| 23 |
7462A3012 |
PSU tray |
| 24 |
7462A3025 |
PSU bottom tray |
| 25 |
7462A4012 |
PSU insulator |
| 26 |
7462K1013 |
PSU |
| 27 |
HWM1671 |
Screw M3.5 x 6mm |
| 28 |
7462A2013 |
Mixing tube assembly |
| 29 |
7462A3014 |
Blocker plate |
|
Array and fans
|
| No |
Part Number |
Description |
| 30 |
HWM10002 |
Screw M4 x 6mm |
| 31 |
See below |
LED array PCB kit |
| 32 |
HW6129 |
Grommet |
| 33 |
HWM1609 |
Screw M5 x 10mm (driver fan) |
| 34 |
7462A4015 |
Array thermal pad
(included in array kit) |
| 35 |
7462A2001 |
LED heatsink |
| 36 |
7462B2001 |
Fan (array) |
| 37 |
7462A3001 |
Fan spring |
| 38 |
7462A3015 |
Heatsink mount |
| 39 |
7462B2003 |
Fan (driver board) |
|

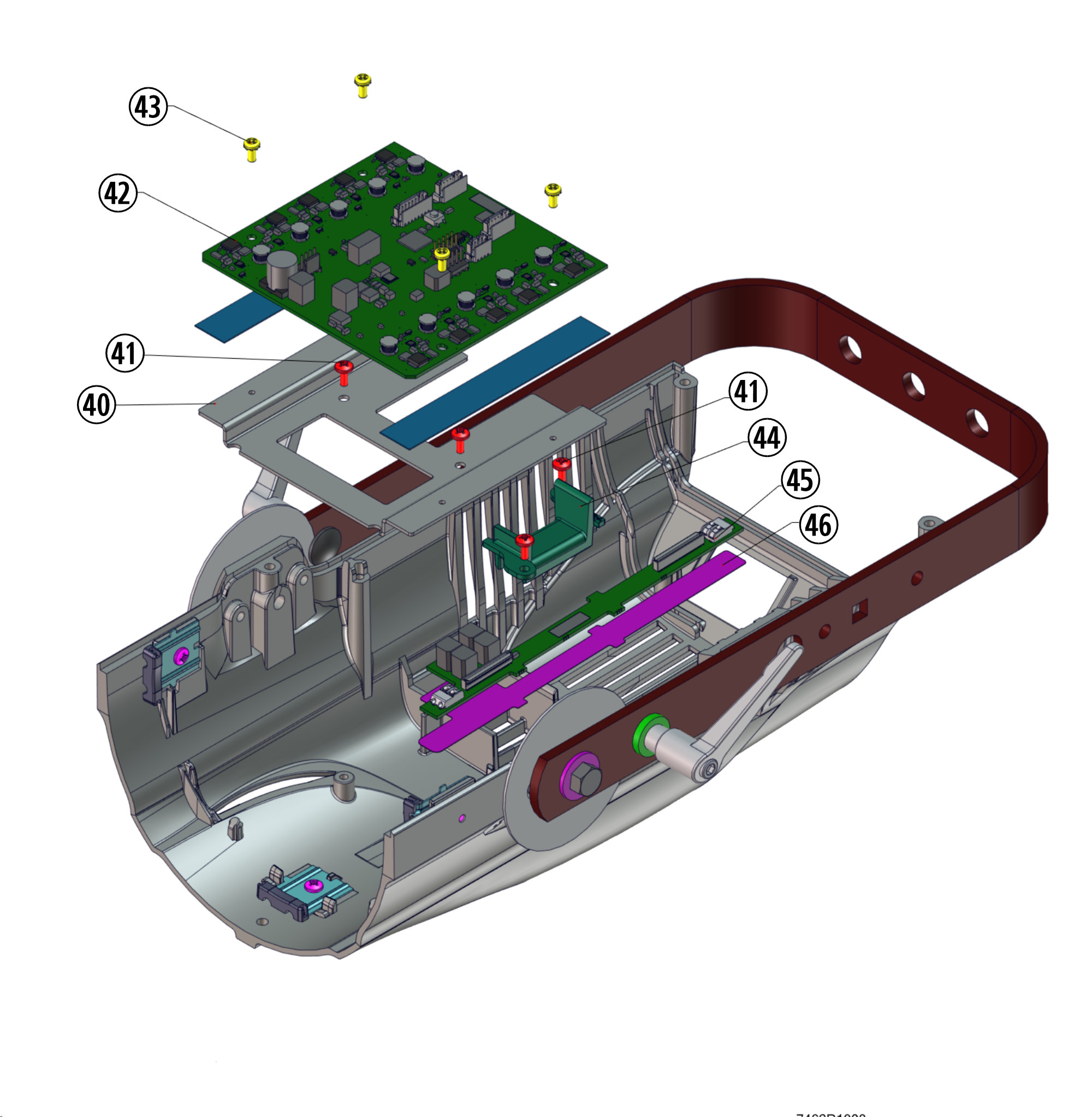

Driver and distro PCBs
|
| No |
Part Number |
Description |
| 40 |
7462A3011 |
Driver tray |
| 41 |
HWM1950 |
Screw M4 x 8mm |
| 42 |
See below |
Driver PCB kit |
| 43 |
HW2220 |
Screw 6/32 x 5/16 |
| 44 |
7462A4021 |
Distro cover |
| 45 |
7462B5606 |
Distro PCB |
| 46 |
7462A4022 |
Distro insulator pad |
|
Yoke
|
| No |
Part Number |
Description |
| 47 |
HWM2319 |
Tilt lock bolt |
| 48 |
N1111 |
Multiverse antenna mount |
| 49 |
7460A3011 🎨 |
Yoke (bare) a |
| 50 |
7462A3007 (ETL) 🎨
7462A3051 (CE) 🎨 |
Bottom casing
See Revisions |
| 51 |
HW5914 |
Tilt lock washer |
| 52 |
HWM8014 |
Tilt lock handle |
| 53 |
HW5193 |
Yoke bolt |
| 54 |
HW5126 |
Yoke bolt washer |
| 55 |
HWM1986 |
Screw M4 x 8mm |
| 56 |
7470A3019 |
Clutch plate |
| 57 |
7413A3004 |
Barrel rotation clip |
| 58 |
7060A4010 |
Bushing gate |
| 59 |
HWM1950 |
Screw M4 x 8mm |
a Bare painted yoke not including stickers. See stickers section below to restore a yoke to factory condition
/td> |
Yoke labels
[picture coming soon]
All labels available in black or white (add -1)
|
| No |
Part Number |
Description |
| |
Service Center
Replacement Only
|
FCC & Safety label
(2 parts, split)
all revisions |
| |
Factory Replacement Only
|
Product label, Lustr, ETL |
| |
Factory Replacement Only
|
Product label, Daylight, ETL |
| |
Service Center
Replacement Only
|
Product label, Lustr, CE |
| |
Service Center
Replacement Only
|
Product label, Daylight, CE |
|
LED control card, driver card and array information
The control card (UI), LED driver card, and LED array can be exchanged independently of each other, bearing in mind the compatibility exceptions below
|
Compatibility
Some control cards and driver boards have additional compatibility considerations. See here for how to select the correct parts:
Compatibility of Driver and Control Cards for Series 3
| No |
Part Number |
Description |
| 42 |
7462K1003 |
LED driver PCB |
| 17 |
7462K1004-x.x.x |
Control / UI PCB |
| 31 |
7462K1001-x.x.x |
LED array PCB (Lustr X8) |
| 31 |
7462K1002-x.x.x |
LED array PCB (Daylight HDR) |
-x.x.x represents the firmware version pre-installed on the control card. Contact your dealer or ETC office to see which version is currently shipping
|
