F-Drive Canopy Source 4 Mini LED Exploded Diagrams
- Last updated
-
-
Save as PDF
Parts with a π¨ can have a suffix added for different colours. For example:
7063A3006 yoke (black)
7063A3006-1 yoke (white)
7063A3006-5 yoke (silver)
NB: plastic parts and stickers are generally available only in black and white
 |
Source 4 Minis come in many different variants, and it is often possible to order either an entire sub-assembly, or the parts within that sub-assembly. The guide below is slightly different to other fixtures to take that fact into account
|
 |
This product was sold as "Source 4 Mini F-Drive Canopy" and then "Source 4 Mini Plus F-Drive Canopy". These products are identical apart from the label on the yoke, and the label on the shutter barrel (and hence the part number of the complete shutter barrel). We recommend replacing stickered parts like-for-like, but otherwise all parts are the same
|
Top level components
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 1 |
See breakdown |
Canopy assembly |
|
|
|
| 2 |
HW5858 |
Flat washer |
|
|
|
| 3 |
7063A4098 |
Retaining washer
("banjo nut") |
|
|
|
| 4 |
HW5821 |
Jam nut |
|
|
|
| 5 |
7192A4012 |
Tilt lock knob |
|
|
|
| 6 |
HW4216 |
Flat washer |
|
|
|
| 7 |
7063A3006 π¨ |
Yoke (bare) a |
|
|
|
| 8 |
HWM1688 |
Screw M5 x 16mm |
|
|
|
| 9 |
7063A2010 π¨ |
Gobo holder |
|
|
|
| 10 |
See breakdown |
Burner assembly |
|
|
|
| 11 |
See breakdown |
Shutter barrel |
|
|
|
| 12 |
7191A4003 π¨ |
Shutter barrel knob |
|
|
|
| 11 |
See breakdown |
Shutter barrel |
|
|
|
a Bare painted yoke not including stickers. See stickers section below to restore a yoke to factory condition
|
|
|
| No |
Part Number |
Description |
US |
EU |
UK |
| 13 |
7063A4097 |
Retaining collar |
|
|
|
| 14 |
HWM10171 |
Set screw M5 x 8mm |
|
|
|
| 15 |
7063A3036 |
Stop bracket |
|
|
|
| 16 |
7063A3037 π¨ |
Canopy |
|
|
|

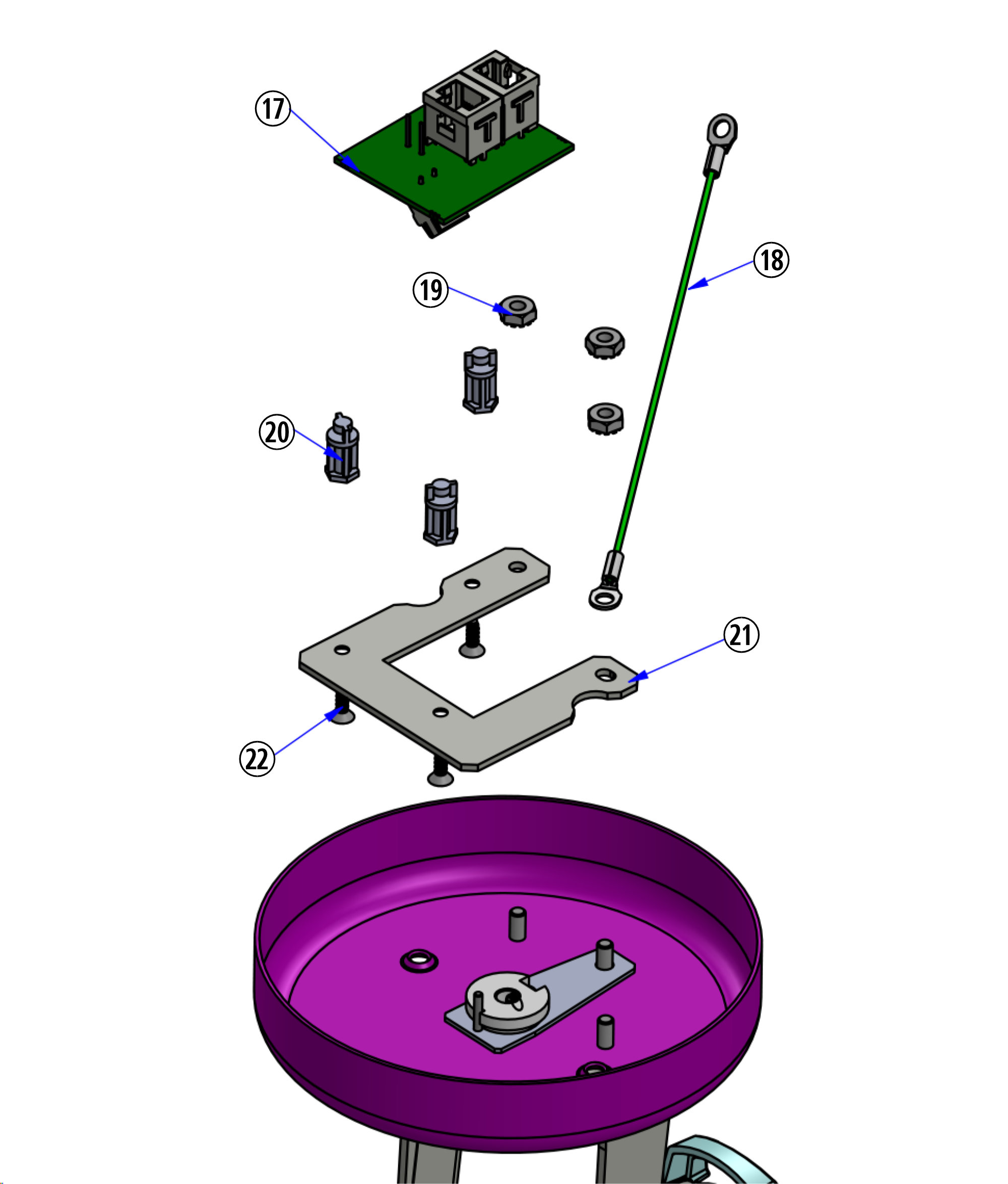

| 17 |
7496B5603 |
F-Drive PCB |
|
|
|
| 18 |
7060B7017 |
Safety wire |
|
|
|
| 19 |
HW375 |
Nut 8/32 x 1/2 |
|
|
|
| 20 |
HW9623 |
PCB screw mount |
|
|
|
| 21 |
7063A3062 |
PCB mount |
|
|
|
| 22 |
HW2351 |
Screw 6/32 x 3/8" |
|
|
|

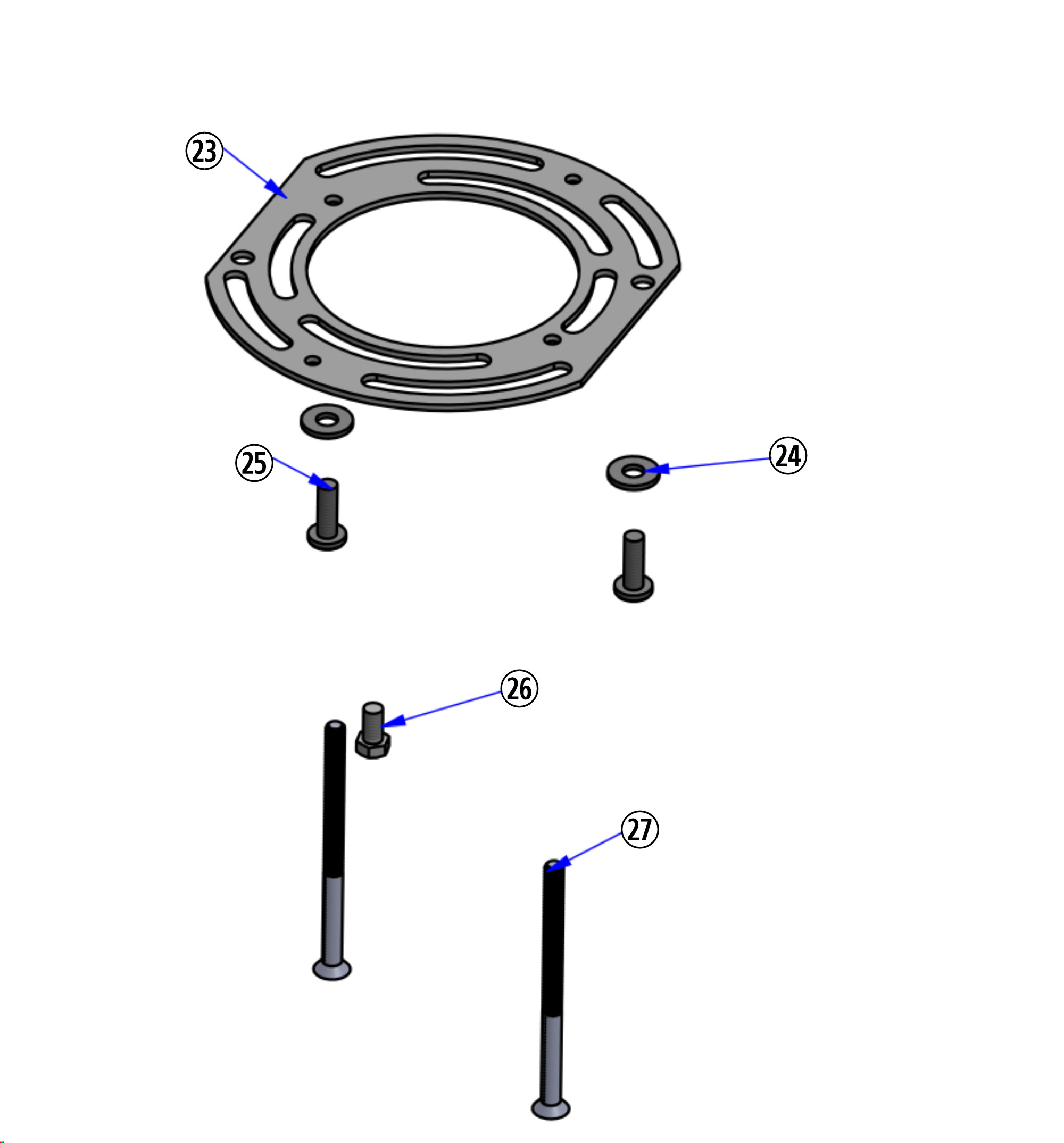

| 23 |
HW5535 |
Universal circular mount |
|
|
|
| 24 |
HW3118 |
Flat washer |
|
|
|
| 25 |
HW392 |
Screw 8/32 x 1/2 |
|
|
|
| 27 |
HW183 |
Screw 4/40 x 1/4 |
|
|
|
|
Burner assembly
|
Important: if your LED chip doesn't look like this drawing, see "Conversion kit" below!
|
Complete burner assemblies
| 2700K Gallery |
7063K1027 π¨ |
| 3000K |
7063K1028 π¨ |
| 3000K Gallery |
7063K1026 π¨ |
| 4000K |
7063K1029 π¨ |
| 5000K |
7063K1030 π¨ |
Note: complete burner assembly comes with the black/red LED wires with bare ends, inside the fibreglass sleeve, ready to be terminated in the driver box. See also Repair Guide
π¨Complete burner assemblies are available in black or white. For other colors, contact ETC tech service
Burner assembly components
| No |
Part Number |
Description |
US |
EU |
UK |
| 1 |
7063A4030 |
Glider piece |
|
|
|
| 2 |
7063A3023 |
Bracket 2 |
|
|
|
| 3 |
HWM304 |
Screw M3 x 6mm |
|
|
|
| 4 |
7191A3062 |
Lens retainer spring |
|
|
|
| 5 |
7063A4091 |
Reflector lens |
|
|
|
| 6 |
7063A3066 |
Reflector |
|
|
|
| 7 |
7063A4065 |
Reflector shim |
|
|
|
| 8 |
7063A3045 π¨ |
Housing metalwork |
|
|
|
| 9 |
HWM305 |
Screw M3 x 8mm |
|
|
|
| 10 |
7063A4092 |
COB holder insulator |
|
|
|
| 11 |
7063B7019 |
COB holder 10" wires a |
|
|
|
| |
7063B7020 |
COB holder 14" wires a |
|
|
|
| |
7163B7119 |
COB holder 17" wires a |
|
|
|
| 12 |
CR669-F |
LED 2700K Gallery |
|
|
|
| |
CR682-F |
LED 3000K |
|
|
|
| |
CR670-F |
LED 3000K Gallery |
|
|
|
| |
CR684-F |
LED 4000K |
|
|
|
| |
CR673-F |
LED 5000K |
|
|
|
| 13 |
7063A4090 |
COB thermal pad |
|
|
|
| 14 |
7063A3044 π¨ |
Rear end/heatsink |
|
|
|
| 15 |
HWM1011 |
Screw M3 x 12mm |
|
|
|
| 16 |
7063A3046 π¨ |
Strain relief |
|
|
|
| 17 |
HWM2105 |
Screw M3 x 10mm |
|
|
|
| 18 |
W6470 π¨ |
Fibreglass sleeve
(order 1 foot per fixture and snip) |
|
|
|
| 19 |
7063A4083 π¨ |
Handle label Gallery b |
|
|
|
| |
7063A4059 π¨ |
Handle label 3000K c |
|
|
|
| |
7063A4078 π¨ |
Handle label 4000K |
|
|
|
| |
7063A4079 π¨ |
Handle label 5000K |
|
|
|
| 20 |
7063A4054 π¨ |
Rear handle |
|
|
|
a Most fixture types use 10" or 14", if unsure, ask tech service or over-order and snip
b Has tick boxes for 2700K and 3000K
c 3000K label just says "LED"
|
Shutter barrel
|
|
Complete shutter barrels
| Original (non-Plus) |
7063A2000 π¨ |
| Source 4 Mini Plus |
7163A2000 π¨ |
Note: original and Plus are functionally identical, but have the correct sticker for the type
Shutter barrel components
| No |
Part Number |
Description |
US |
EU |
UK |
| 1 |
HWM1142 |
Screw M3 x 6mm
(slot cover) |
|
|
|
| 2 |
7063A3019 π¨ |
Gobo slot cover |
|
|
|
| 3 |
HWM1684 |
Screw M3.5 x 14mm |
|
|
|
| 4 |
7063A3033 π¨ |
Top half metalwork |
|
|
|
| 5 |
7063A2011 π¨ |
Shutter assembly a |
|
|
|
| 6 |
7063A3034 π¨ |
Bottom half metalwork |
|
|
|
| 7 |
7063A4037 |
Product sticker
(original, black) |
|
|
|
| |
7063A4043 |
Product sticker
(original, white) |
|
|
|
| |
7163A4004 |
Product sticker
(Plus, black) |
|
|
|
| |
7163A4004-1 |
Product sticker
(Plus, white) |
|
|
|
| 8 |
7063A4020 π¨ |
Shutter blade handle (single) |
|
|
|
a Shutter assembly comes as shown, with 4 blades and 3 blade handles. Order 4th blade handle separately if needed
|
Yoke labels
π¨ Yoke labels are available in black or white (add -1)
|
| 1 |
Canopy-specific product label
(CE and ETL)
Original (non-Plus) version |
Factory Replacement Only
|
| 1 |
Canopy-specific product label
(CE and ETL)
Source 4 Mini Plus version |
Factory Replacement Only
|
| 3 |
Production date label, cannot be ordered |
N/A |
|
