SMPTE/LTC and MIDI Configuration for Hog Consoles
Symptoms/Issue
SMPTE/LTC or MIDI not outputting on new generation Hog V5 Consoles (Tour, Stage, Flex, and Gig).
- V5 Consoles use different internal devices than V4 hardware.
- Mappings for newer hardware have moved within the software.
It should be noted that the LTC Diagnostic (Test LTC Input) will only work with the older Hog 3 LTC Widget and Hog 4 LTC/MIDI Combo Widget. It will not work with the new hardware used in the new Hog Platform. (Tour, Stage, Flex, and Gig)
Fix/Solution
- The tables below will explain mapping Hog 3 and Hog 4 Widgets as well as the new generation V5 Hog hardware when using the internal and external devices.
- The tables below list the timecode devices compatible with Hog software and where they are configured.
| Built-In Timecode Devices | Where to Configure |
|---|---|
|
Hog 4 / Hog 4-18 / Full Boar 4 Internal SMPTE |
Network Window / Processor Node Settings |
|
Hog 4 / Hog 4-18 / Full Boar 4 Internal MIDI |
Network Window / Console Node Settings |
|
Tour Hog / Stage Hog /Flex Hog / Gig Hog Internal SMPTE |
Network Window /Console Node Settings |
|
Tour Hog / Stage Hog /Flex Hog / Gig Hog Internal Midi |
Network Window /Console Node Settings |
| External Timecode Devices | Where to Configure |
|---|---|
|
ETC Response MIDI Gateway (USB) |
Network Window / Console Node Settings |
|
ETC Response SMPTE Gateway (USB) |
Network Window / Console Node Settings |
|
Hog 3 Series USB LTC Widget |
Network Window /Processor Node Settings |
|
Hog 4 Series Combo LTC/MIDI Widget |
MIDI: Network Window / Console Node Settings SMPTE: Network Window /Processor Node Settings |
|
Any Third Party “USB MIDI Class” Device |
Network Window / Console Node Settings |

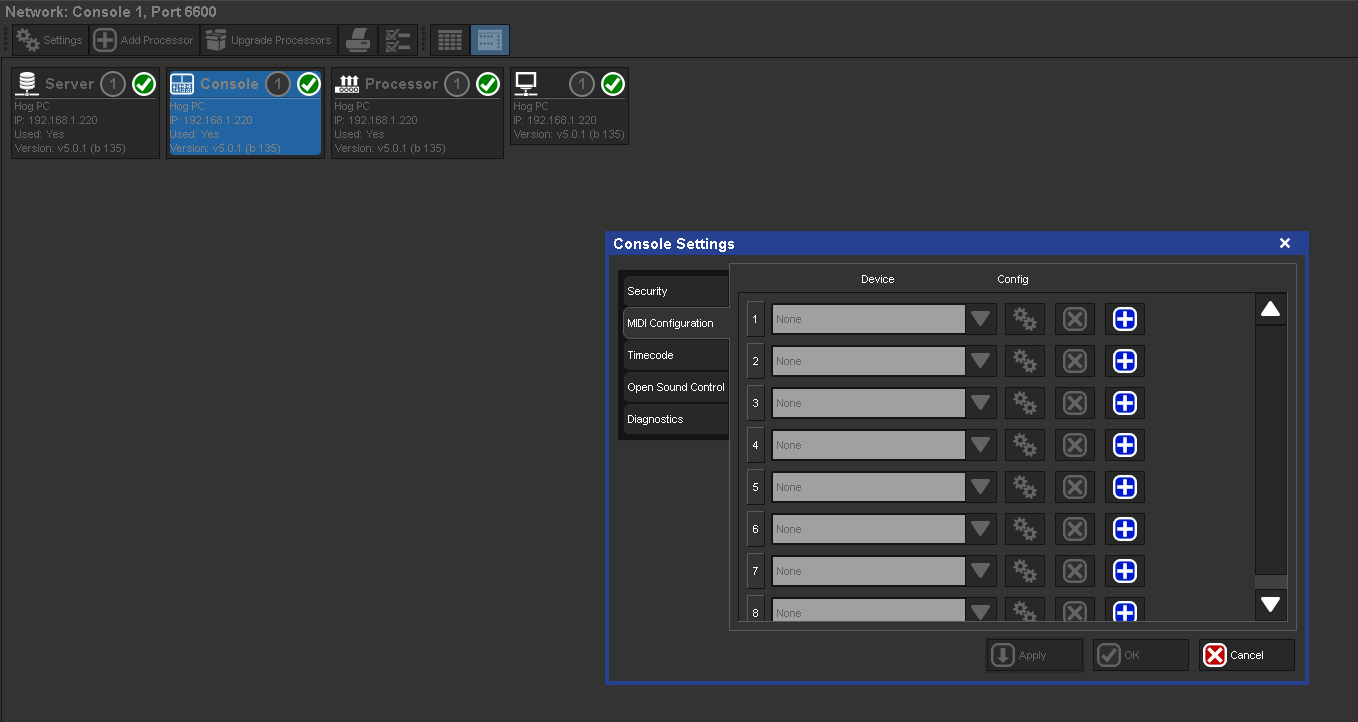

Console Node Settings:
Processor Node Settings:
