Symptoms/Issue

Determine based on serial numbers what Mosaic controllers are compatible with which software versions.

Description/Explanation of Issue

Some Mosaic controllers are incompatible with certain versions of Mosaic Designer. Refer to the chart below for a detailed list. Revision 1 controllers contain a compact flash card, while rev 2 controllers contain an SD card.

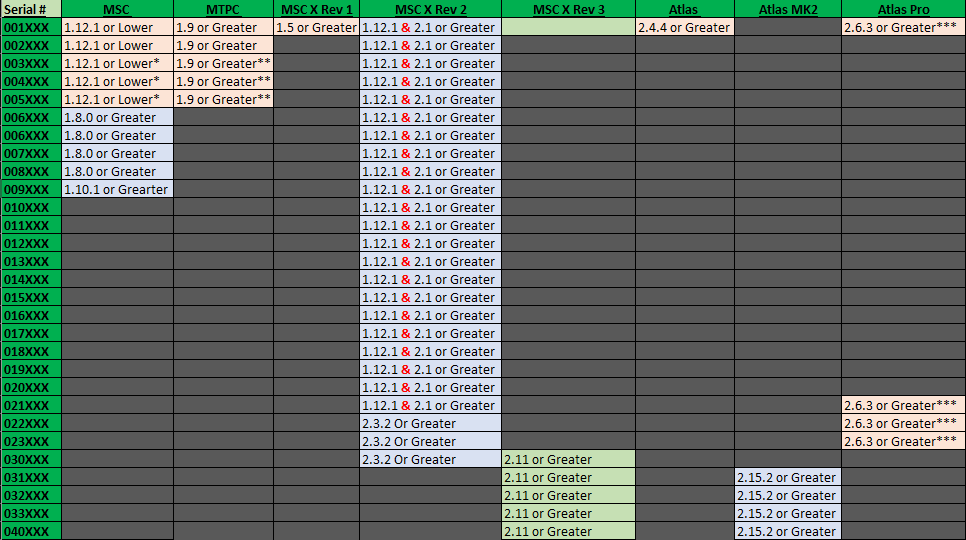

Hardware Compat 6-15-22.png

To upgrade a controller and configuration from version 1 to version 2, please use the Mosaic Firmware Upgrade Tool and the Mosaic Project Upgrade tool.  Both of these are available as part of the Mosaic bundle download.
