Which 12V external PSU do I need?

Many low-power ETC products use external 12VDC PSUs, but there are several types ETC uses. The guide below will help you find a replacement PSU for your product.

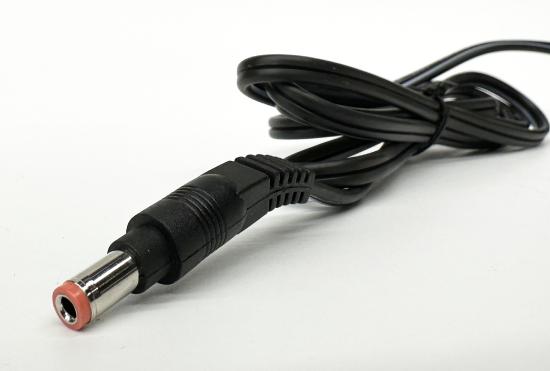

1.5A with no locking ring

ETC Part Number PS406-F
Description This adapter has a simple DC barrel connector with no threaded locking ring
PSU Type "Wall wart" with international AC connectors
Old ETC part number (discontinued) PS366-F
Products that use Original Net3 Gateways
Universal Fader Wings *
Smartfade consoles *

* locking ring versions of these products also exist, see below
Notes Some products only need an external PSU when not using Power over Ethernet (e.g. Gateways)
Universal Fader Wings do not need an external PSU when screwed to the side of an Ion (classic) console

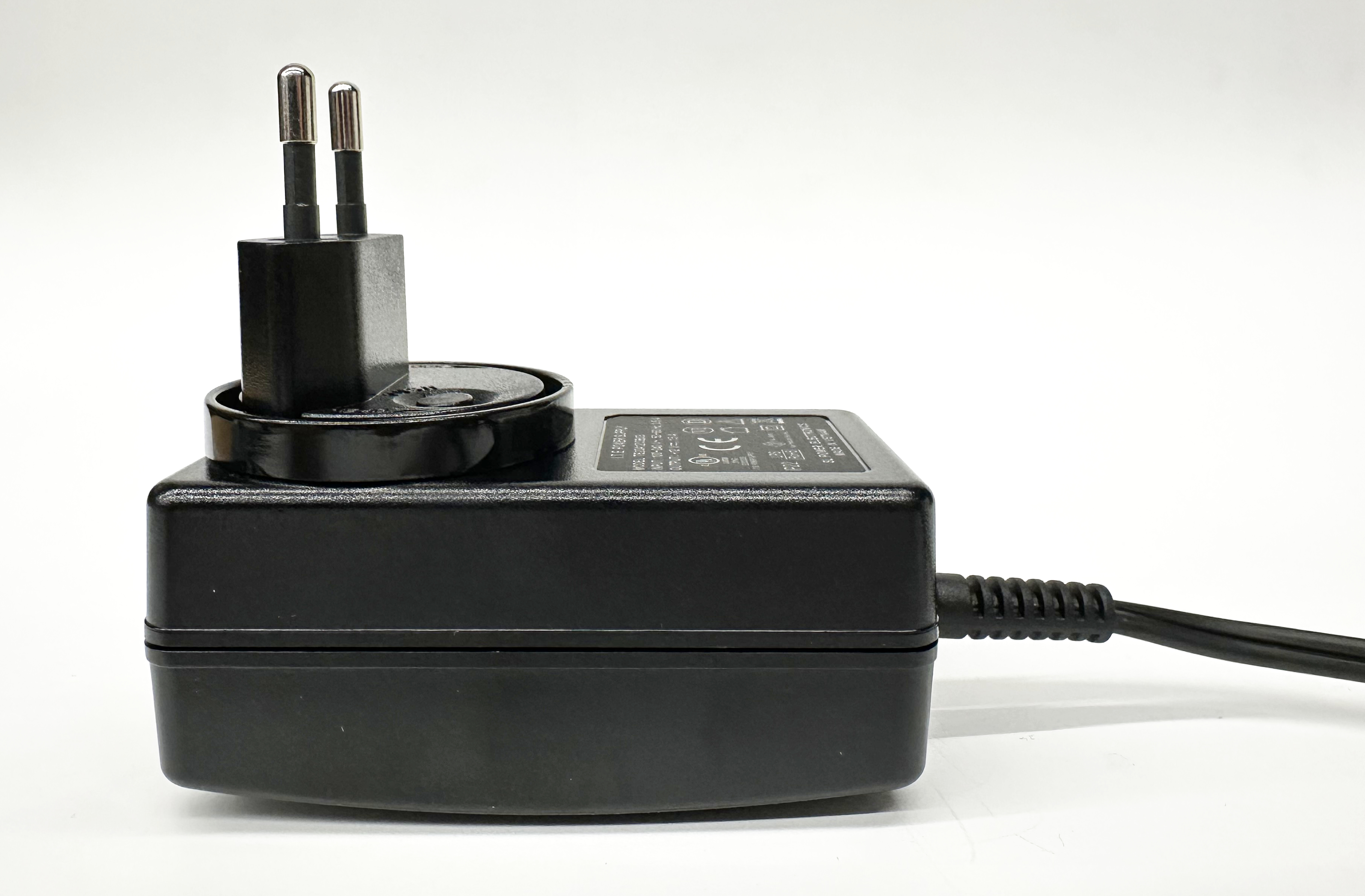

Pictures IMG_1764.jpgIMG_1766.jpg

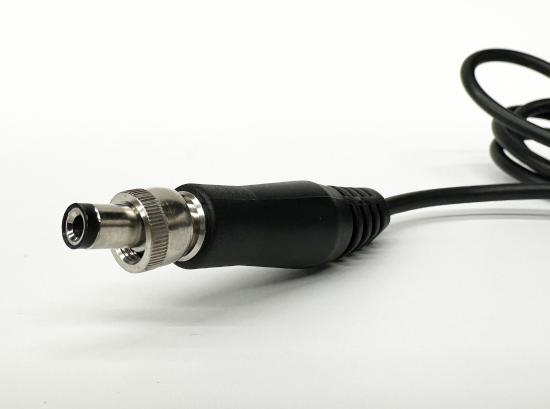

1.5A with locking ring

ETC Part Number PS372
Description This adapter has a DC barrel connector and a threaded locking ring
PSU Type "Wall wart" with international AC connectors
Products that use Universal Fader Wings *
SmartFade consoles *
Response Gateways
Response Mk2 Gateways

* non-locking ring versions of these products also exist, see above
Notes Some products only need an external PSU when not using Power over Ethernet (e.g. Gateways)
Universal Fader Wings do not need an external PSU when screwed to the side of an Ion (classic) console
Pictures IMG_1768.jpgIMG_1770.jpg

5A with locking ring

ETC Part Number PS450
Description This adapter has a DC barrel connector and a threaded locking ring
PSU Type Brick-type with C14 (IEC) connector
Products that use P-TS18
Conductor
P-CCS
P-TSI
ColorSource Console
Eos Fader Wings (motorized and non-motorized)
Eos Programming Wing
Notes Eos Fader Wings always require a PSU, since there is no docking option
PS450 is physically and electrically compatible with products that use PS372 - but is more expensive

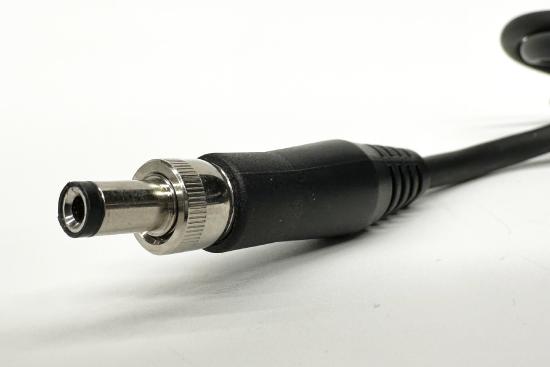

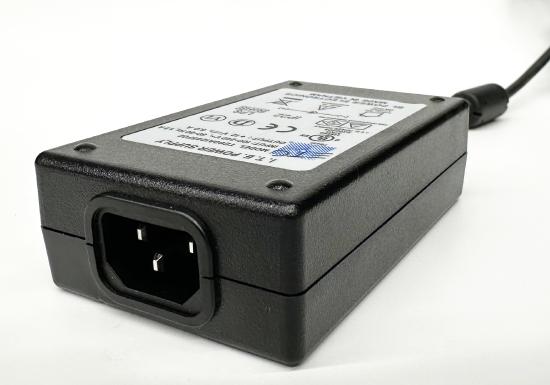

Pictures IMG_1773.jpgIMG_1776.jpg



What about the Puck?

Pucks use 19V power supplies, please see this article for the various PSU part numbers

Example pixtures of product connections

Net3 Gateway with non-locking input (PS406-F) IMG_1777.jpg
Response Mk2 Gateway with locking input (PS372) IMG_1778.jpg
ColorSource Console with locking input (PS450) IMG_1780.jpg

Determining your Fader Wing type

Universal Fader Wings are shaped like a classic Ion console

They come in Ion black or Congo blue/purple

They exist in 2x10 or 2x20 fader variants

Versions with both locking and non-locking connectors have been produced. Please check your Wing to determine which PSU you need to order. Although the locking and non-locking PSUs are electrically compatible, using the wrong one will create a poor connection

The 1x20 variant that sits on top of an Ion console does not need an external PSU
Eos Fader Wings and Eos Motorized Fader Wings are shaped like an Ion XE console

They come in the variants shown here

All use the PS450
