Fotono 0-10v Control
0-10v Control for Fotono Luminaires
Fotono uses RJ11 connector for 0-10v connection.

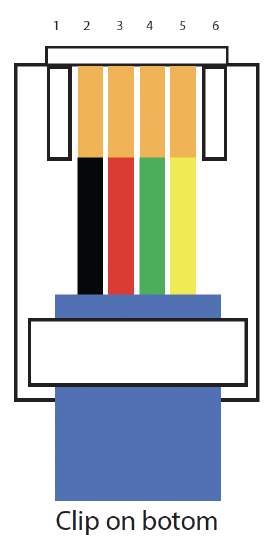

RJ11 use 4 conductors 2-5, while RJ12 uses 6 conductors 1-6. Fotono only uses 2-5.
Standard Control Pinout Rev A fixtures
REV A Part # CT141-600-U-ST-10U
| RJ11 | Description | Color | Connect To |
|---|---|---|---|
| Pin 2 | Warm 0-10v (-) | Black |
Pink (previously Gray) Common |
| Pin 3 | Warm 0-10v (+) | Red | Violet Ch1 Warm (BCL Violet/Red) |
| Pin 4 | Cool 0-10v (-) | Green | Pink (previously Gray) Common |
| Pin 5 | Cool 0-10v (+) | Yellow | Violet Ch2 Cool (BCL Violet/Green) |
Standard Control Pinout Rev B fixtures
REV B Part # CT141-600-U-ST-10U-CO5-RY
| RJ11 | Description | Color | Connect To |
|---|---|---|---|
| Pin 2 | Cool 0-10v (+) | Black |
Violet Ch2 Cool (BCL Violet/Green) |
| Pin 3 | Cool 0-10v (-) | Red | Pink (previously Gray) Common |
| Pin 4 | Warm 0-10v (+) | Green | Violet Ch1 Warm (BCL Violet/Red) |
| Pin 5 | Warm 0-10v (-) | Yellow | Pink (previously Gray) Common |
Note: The two commons in some cases need to be connected together
RJ11 to bare end cable 14' 513-26-6400-BL-0014F
https://www.digikey.com/en/products/detail/cnc-tech/513-26-6400-BL-0014F/3442228
NOTE: a RJ12 could also be used, RAYN just does not use Pin 1 white and Pin 6 blue.
Fixture to Fixture connection
The cable for fixture to fixture connection must be straight through cables. The ones you can find at the hardware store for Telephones are cross over cables and will not work in this application.
Works Does not work
The cable need to be ordered form a Electronic supply house like DigiKey or Mouser.
14’ AT-S-26-4/4/B-14/R (https://www.digikey.com/en/products/detail/assmann-wsw-components/AT-S-26-4-4-B-14-R/1972603)
7’ AT-S-26-4/4/B-7/R (https://www.digikey.com/en/products/detail/assmann-wsw-components/AT-S-26-4-4-B-7-R/1972698)
Helpful Parts
CZH-Labs has some RJ11/12 to Terminal boards that are helpful for connecting luminaire. Also available through Amazon.
CZH-LABS RL11/RJ12 6P6C Vertical Jack
Troubleshooting "Why does nothing work!"
If you have wired the connector as above but no lights are on or go out when you plug in the RJ11, check that the RJ11 is not reversed. If it is terminated backwards the control function of the colored wires will change.
