Multi-cell Fixture Pixel Ordering

Augment3d 1.0.0

Augment3d version 1.0.0 does not fully support depiction of multi-cell fixtures nor necessarily the order of the cells as defined by the fixture manufacturer.

Linear

For linear fixtures, cells, if modeled, will generally be from one end to the other of the fixture but are not guaranteed to match the fixture manufacturer's definition.

Round

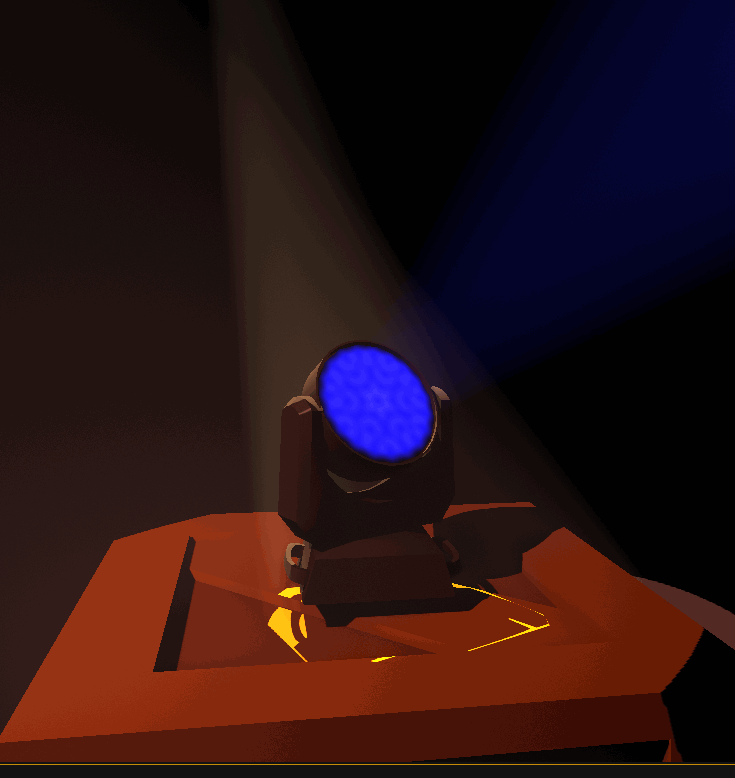

Cells on round fixtures start from the center and spiral outwards regardless of the manufacturer's definition of cell ordering:

Spiider Round 2.gif
