Reseating AIS Keycaps on Eos Family Consoles

Description

AIS keycaps on consoles use a different mounting mechanism than other keycap types. When reinstalling these keycaps, an extra step is required to fully seat the keycap and get it flush with the rest of the keycaps. On non-AIS face panels, this step is not necessary; the keycaps can simply be pressed into place.

Below is an example of an improperly seated AIS keycap (the [2] key).


Follow the procedure below to properly reinstall AIS keycaps into the face panel.

Procedure

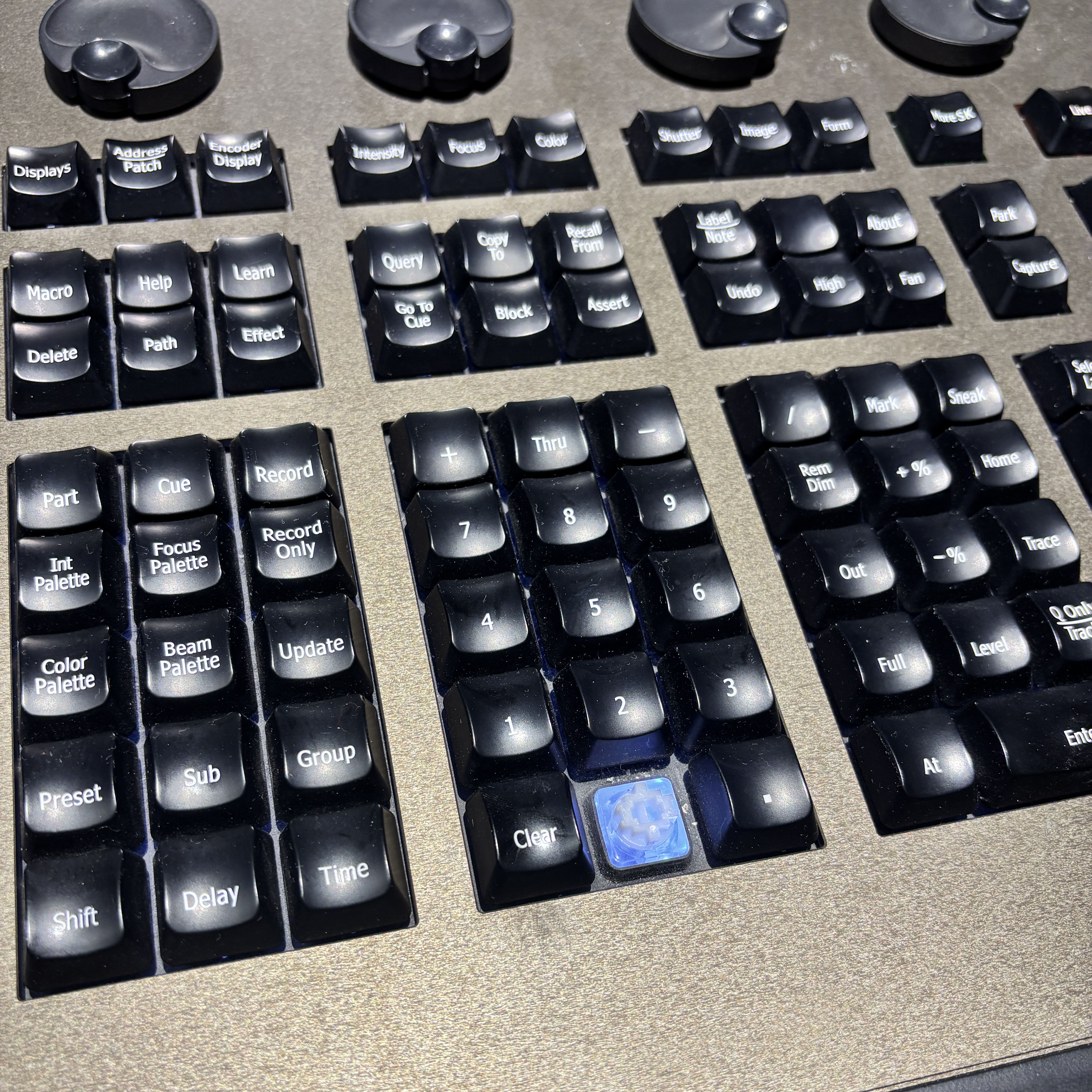

Remove keycap using a keycap puller. clipboard_ea6ab82c7e527f078ff103fdfe2b1c17b.png

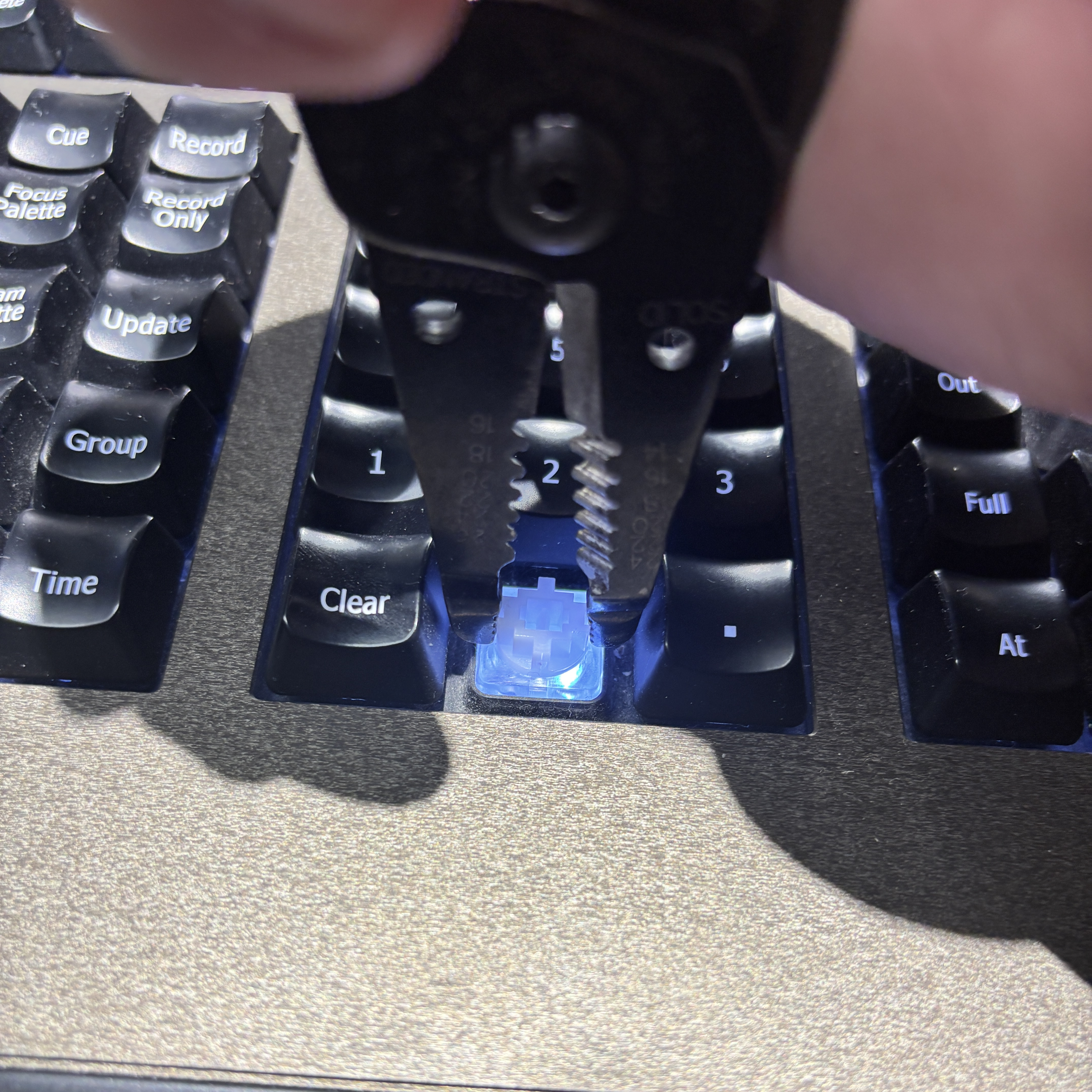

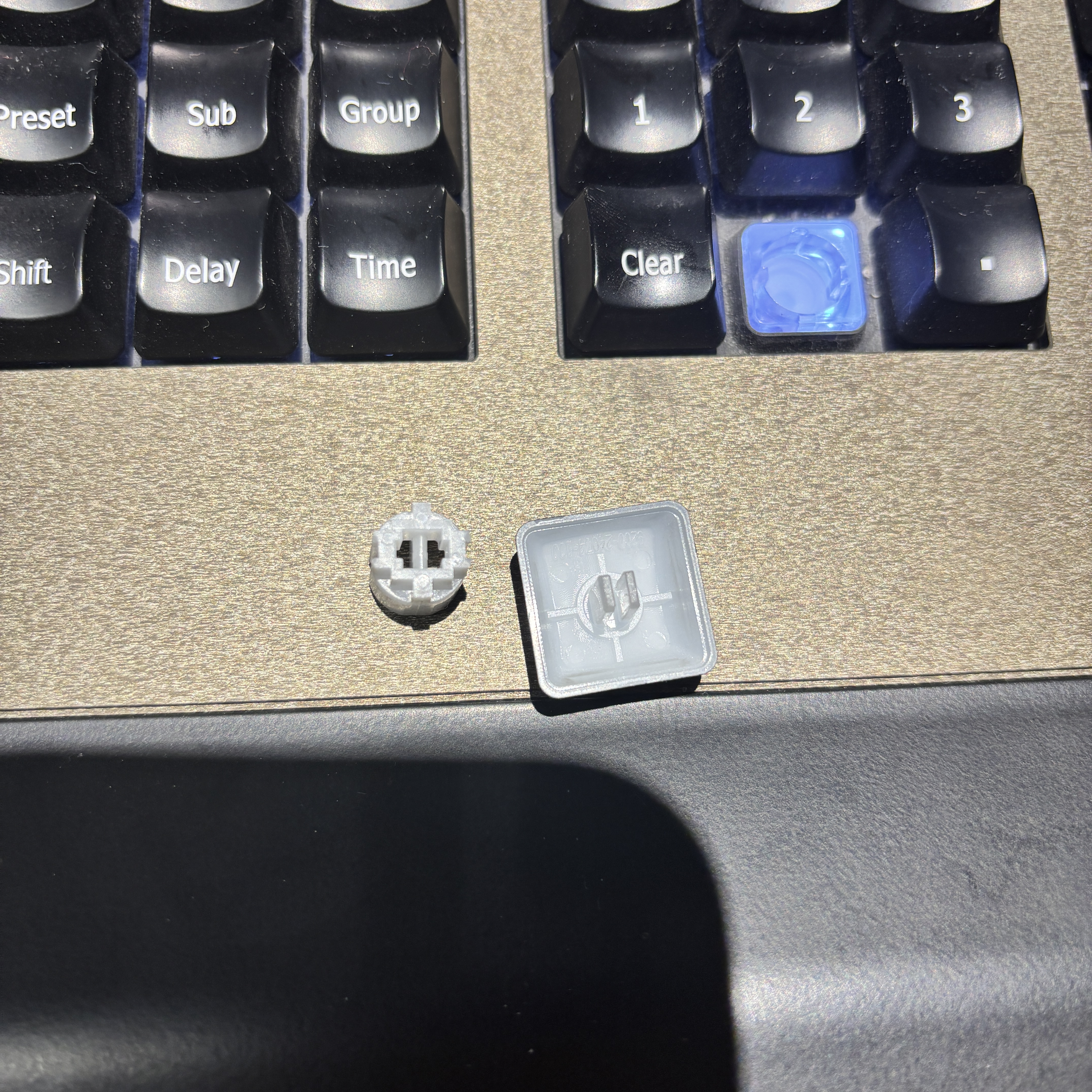

Remove plunger from the keyswitch. clipboard_e92ab9f503afa46daf2bfa51c70bf9d62.png

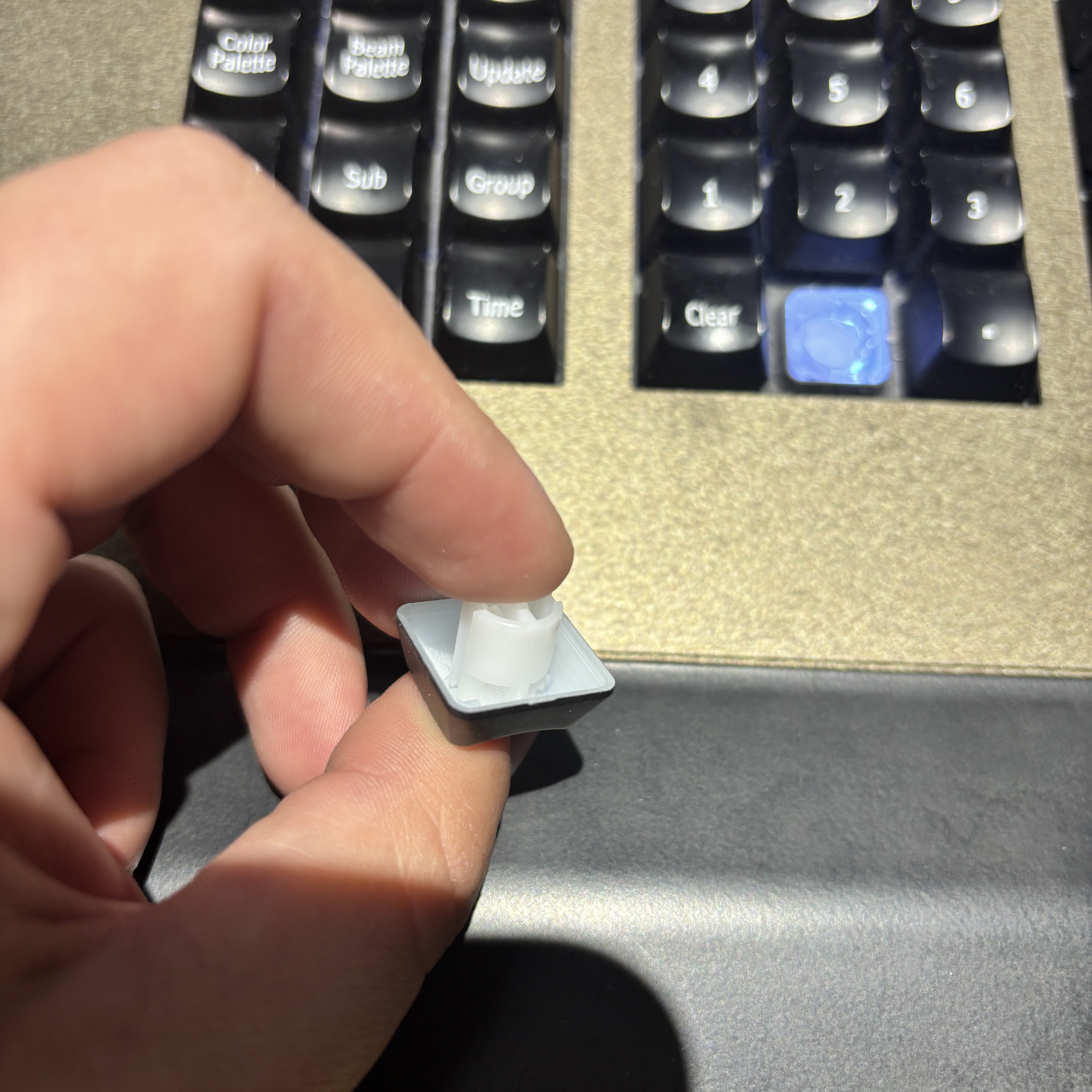

Mate the keycap with the plunger. It should click into place. clipboard_e64da93c8c28288643e653fec04c99ec0.png

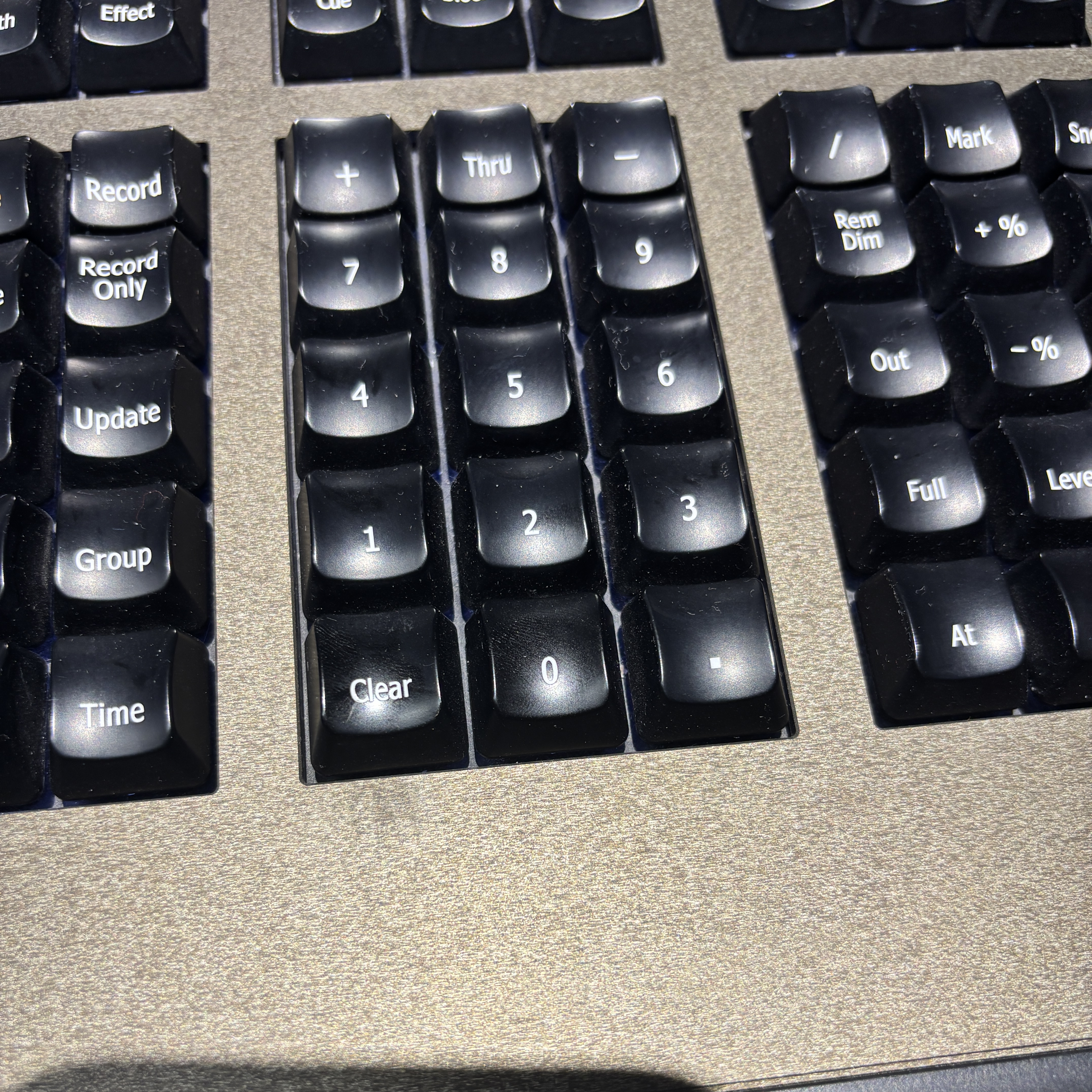

Place keycap with plunger attached back into position. Press into place. clipboard_e63ba8930cfac3ab6257b3d410b0e0d4a.png
