Replacement Keycaps for Eos Family Consoles

  1. Last updated
  2. Save as PDF

This article is a list of currently available replacement keycap sets. For a general overview of different types of keycaps that have been used on Eos Family consoles, see this article.

For Eos Ti and Gio consoles and Programming Wings, replacement kits differ depending on the style of keyboard on your console (Cherry or AIS). To check which style of keyboard you have, see this section below.

Full Keycap Sets

Console Part Number Keys Keys Included Image
Ion Xe and Ion Xe 20
Gio @5
Gio*
Programming Wing*

* with Cherry keyboard only		 4390K1020 88 All main keyboard keys

does not include [Stop|Back], [Go], and [Master] keys
does not include fader bump keys		 _94key.jpg
Element 2 4331K1020 88 All main keyboard keys

does not include [Stop|Back], [Go], and [Master] keys		 _element2.jpg
Eos Ti*

* with Cherry keyboard only		 4350K1020 88 All main keyboard keys

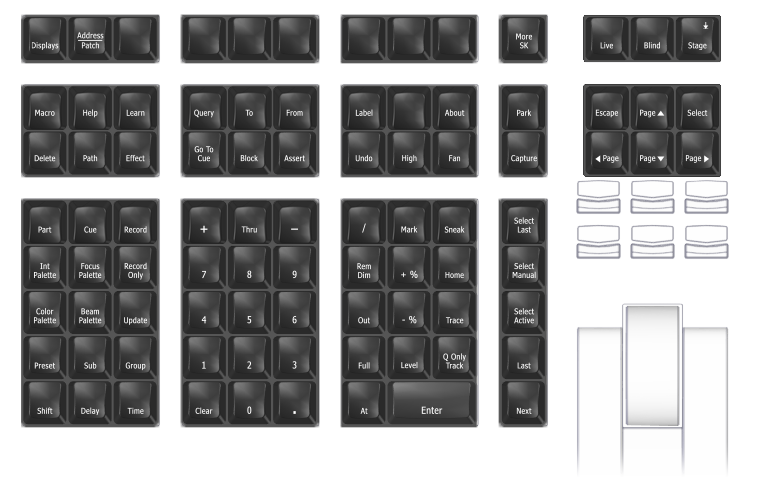

does not include [Stop|Back], [Go], and [Master] keys		 _ti.jpg
Ion 4310K1110 89 All keys _ion.jpg
Element 4330K1106 79 All keys _element.jpg
Eos Classic 4250K1131 80 All keys _eos.jpg

Partial Keycap Sets

Console Part Number Keys Keys Included Image
Apex consoles
Ion Xe and Ion Xe 20
Gio @5
Gio*
Eos Ti*
Programming Wing*

* with Cherry keyboard only		 4450K1103 18
  • (15) number cluster keys
  • [Shift] key
  • [At] key
  • [Enter] key

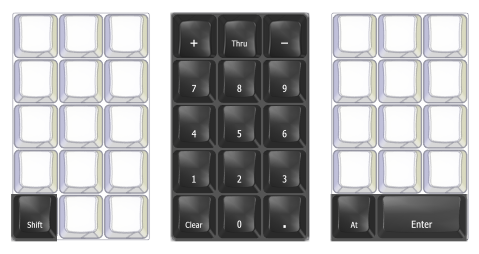

 Hot Keys.png
Element 2 4331K1003 18
  • (15) number cluster keys
  • [Shift] key
  • [At] key

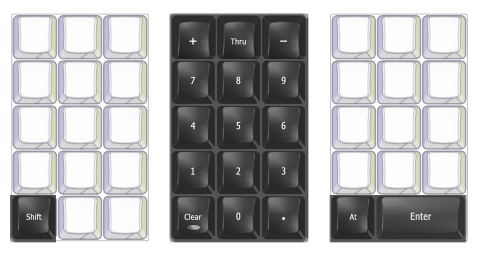

  • [Enter] key
Apex consoles
Ion Xe and Ion Xe 20
Gio @5
Element 2
Gio*
Eos Ti*
Programming Wing*
with Cherry keyboard only		 4450K1105 2
  • [Stop|Back] key
  • [Go] key



AIS Keyboard Retrofit Kits

Cherry AIS
cherry.jpg aisb.jpg   aisa.jpg
plunger removed

There are two keycap mounting styles used on Eos Family console keyboards; Cherry and AIS. The AIS mounting style is used only on AIS keycaps. The Cherry mounting style is used on all other keycaps. These two mounting styles are not mutually compatible. This means AIS keycaps cannot be mounted on Cherry keyboards, and vice versa.

To determine which mounting style is used on your console, remove a keycap using a keycap puller and compare the underside of the keycap to the images above.


AIS keycaps use an additional 'plunger' component as part of the mounting mechanism, shown above. When mounting AIS keycaps on an AIS keyboard, follow the instructions in this article to properly seat the plunger and prevent the key from coming loose.

AIS keycaps are no longer available for purchase.‡ Instead, consoles with AIS keyboards can be retrofitted to use a Cherry keyboard, allowing compatibility with Cherry-style keycaps. There are several service kits available for this purpose, each of which includes a new keyboard and keycaps along with the hardware and instructions required to perform the retrofit.

‡ with the exception of the [Stage] keycap

Console Part Number Keys Parts Included Image
Gio†
Programming Wing†

† with AIS keyboard only		 4240K1011 88
  • Cherry keyboard PCB (4390B5911)
  • Keycaps for all main keyboard keys
  • Hardware and instructions for retrofit
Gio†

† with AIS keyboard only		 4240K1012 33

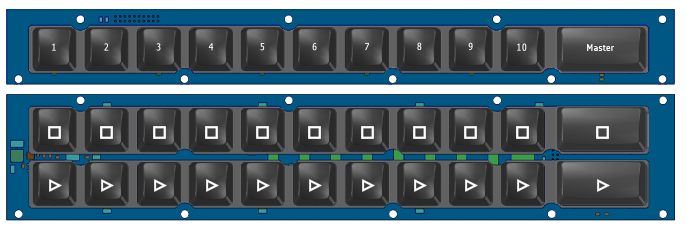

  • Cherry playback PCBs (4240B5723, 4240B5724)
  • Keycaps for [Stop|Back], [Go], and [Master] keys
  • Keycaps for all fader load and bump keys
  • Hardware and instructions for retrofit
Eos Ti†

† with AIS keyboard only		 4350K1008 88
  • Cherry keyboard PCB (4390B5811)
  • Keycaps for all main keyboard keys
  • Hardware and instructions for retrofit
Eos Ti†

† with AIS keyboard only		 4350K1009 33
  • Cherry playback PCBs (4350B5708, 4350B5709)
  • Keycaps for [Stop|Back], [Go], and [Master] keys
  • Keycaps for all fader load and bump keys
  • Hardware and instructions for retrofit

Keycap Changes with Software

Keycaps have occasionally been repurposed due to changes in Eos Family software. This has required a handful of replacement keycaps to be issued to coincide with software changes.

Version 3.1.0
  • Ion
    • [Intensity] replaced [Custom]

Encoder Maps were added in this version. The Custom Encoder Map function was moved to a softkey.

Version 3.0.0
  • Eos Ti, Gio, Gio @5, Ion, Ion Xe, Ion Xe 20, Element, Element 2, and Programming Wing
    • [Stage] replaced [Scroll Lock]

Staging Mode was added in this version.  Scroll Lock is now accessed with the key combination [Shift] & [Stage].

Version 2.1.0
  • Element
    • [Tab] replaced [Swap]
    • [Displays] replaced [Browser]

Element gained the ability to use Tabs in this version. The change from [Browser] to [Displays] does not accompany a change in functionality, but matches the [Displays] key on other Eos Family consoles.

Version 1.9.11
  • Gio
    • [Intensity] replaced [S1]
    • [Focus] replaced [S2]
    • [Color] replaced [S3]
    • [Shutter] replaced [S4]
    • [Image] replaced [S5]
    • [Form] replaced [S6]

Softkeys are now accessed by holding [More SK] and pressing the corresponding encoder category key; i.e. [More SK] & [Intensity] for softkey 1.

Version 1.9.8
  • Eos
    • [Shift] replaced [Follow|Hang]
    • [Address|Patch] replaced the blank key next to [Help]
  • Ion
    • [Shift] replaced [Follow|Hang]
  • Element
    • [Shift] replaced [Delay]
    • [Delay] moved up one row to replace [Follow]

The Shift function was added in this version. Follow/Hang is now accessed with the key combination [Shift] & [Delay], or as a softkey with a cue selected on the command line.

Version 1.9.6
  • Ion and Element
    • All keycaps changed from a flat, beveled style ("Flat") to a curved style ("CSL").

There were no changes related to keycap functionality in this version; the keycap change is purely cosmetic.

Version 1.9.0
  • Ion
    • [Tab] replaced [Swap]

Ion gained the ability to use Tabs in this version.

Version 1.4.0
  • Eos Classic
    • [High|Low] replaced [Relate]
    • [Fan] replaced the blank key next to [Relate]

The Highlight function was added in this version. The Relate function was not yet implemented in software when its key was removed.
