Response-Merger

The Response Merger combines two incoming DMX-512 signals into a single DMX-512 output signal. This allows two DMX devices to control the same lights with highest level taking priority (HTP) on a channel by channel basis.

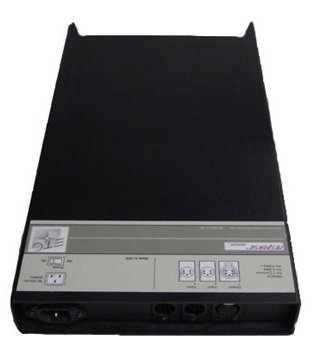

Merger1.jpg Merger2.jpg

DMX DATA PINOUT

  1. COMMON
  2. DATA -
  3. DATA +

Data Loss Behavior

Hold time is 3 min 45 Sec with a 3 min 45 Sec fade

JUMPERS

CUSTOM PATCH--REMOVE JUMPER FROM J8, POSITION 5

MERGER LEDS

Port 1 Valid Data H On
Port 1 Data Error G On
Port 2 Valid Data F On
Port 2 Data Error E On
Output Data OK D Flashing
Output Error C Flashing
Not Used B
Not Used A
