RD-2031 Receiver

RD-2031 Receiver Board
Parent Assembly: 1070A1037
Board Level: 1070B4023
Manufactured by LMI, circa 1980s



RD2031 Face.jpg

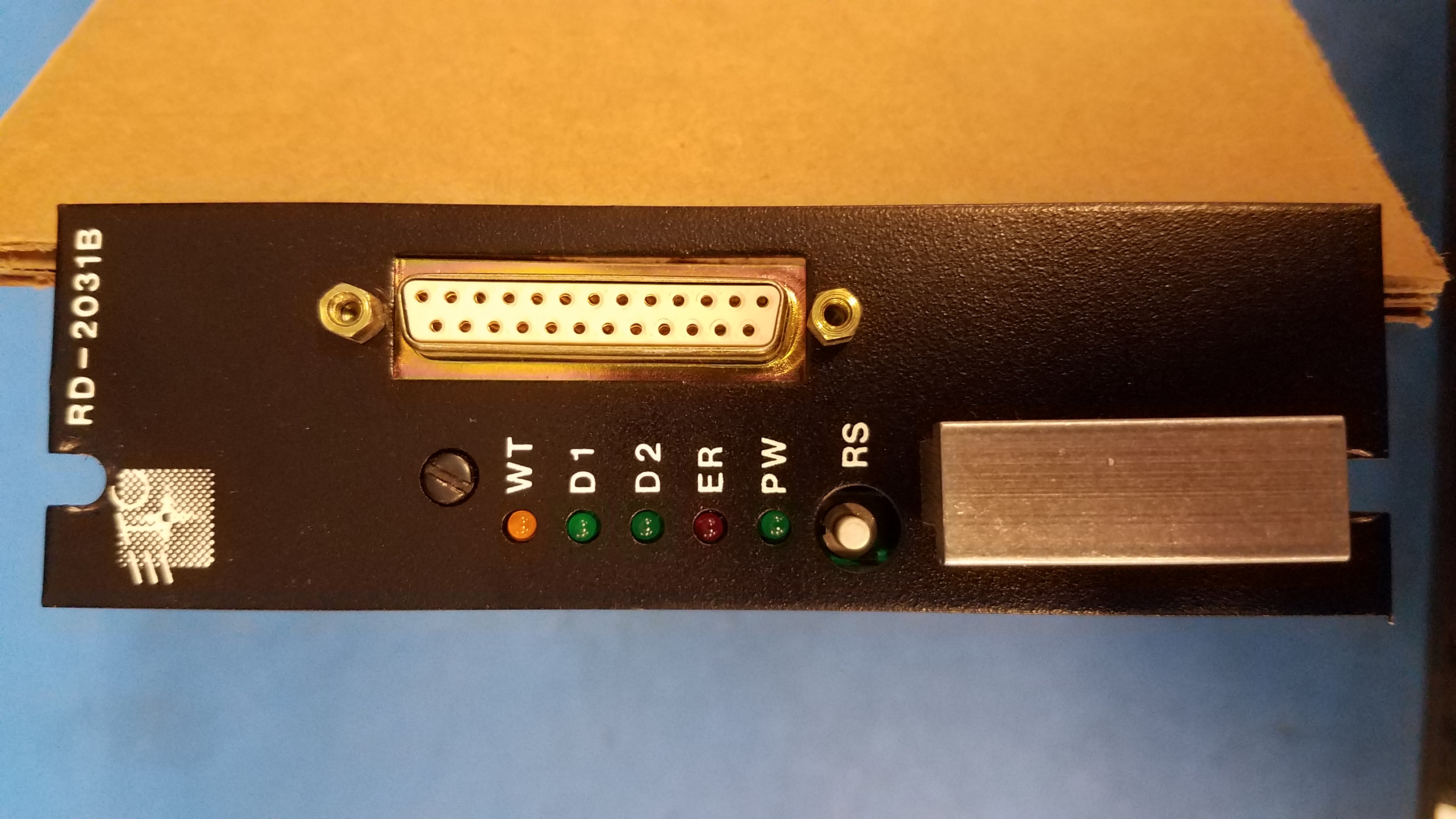

RD-2031B Face



RD2031 Top.jpg

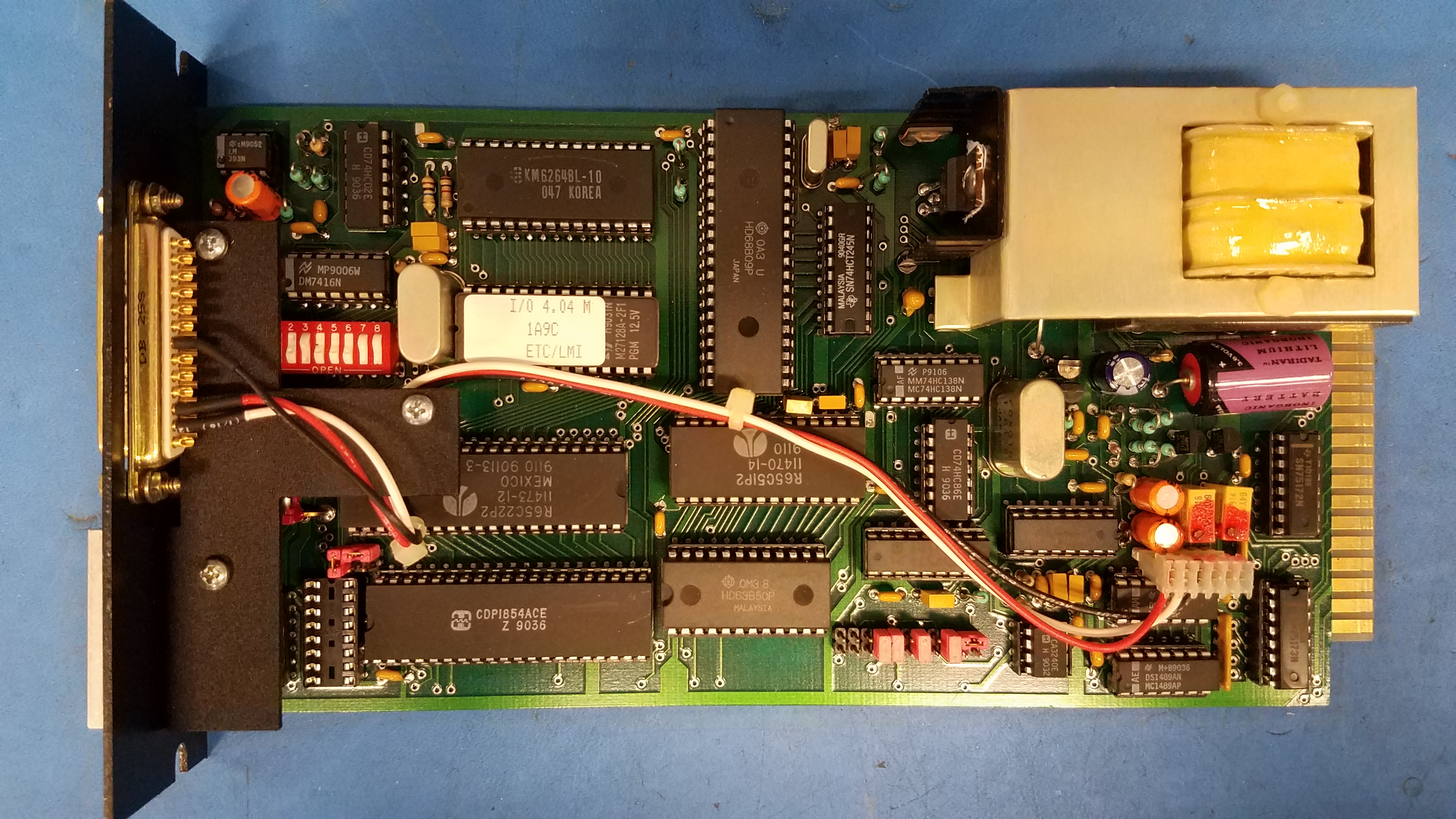

RD-2031B Top



RD2031 Bottom.jpg

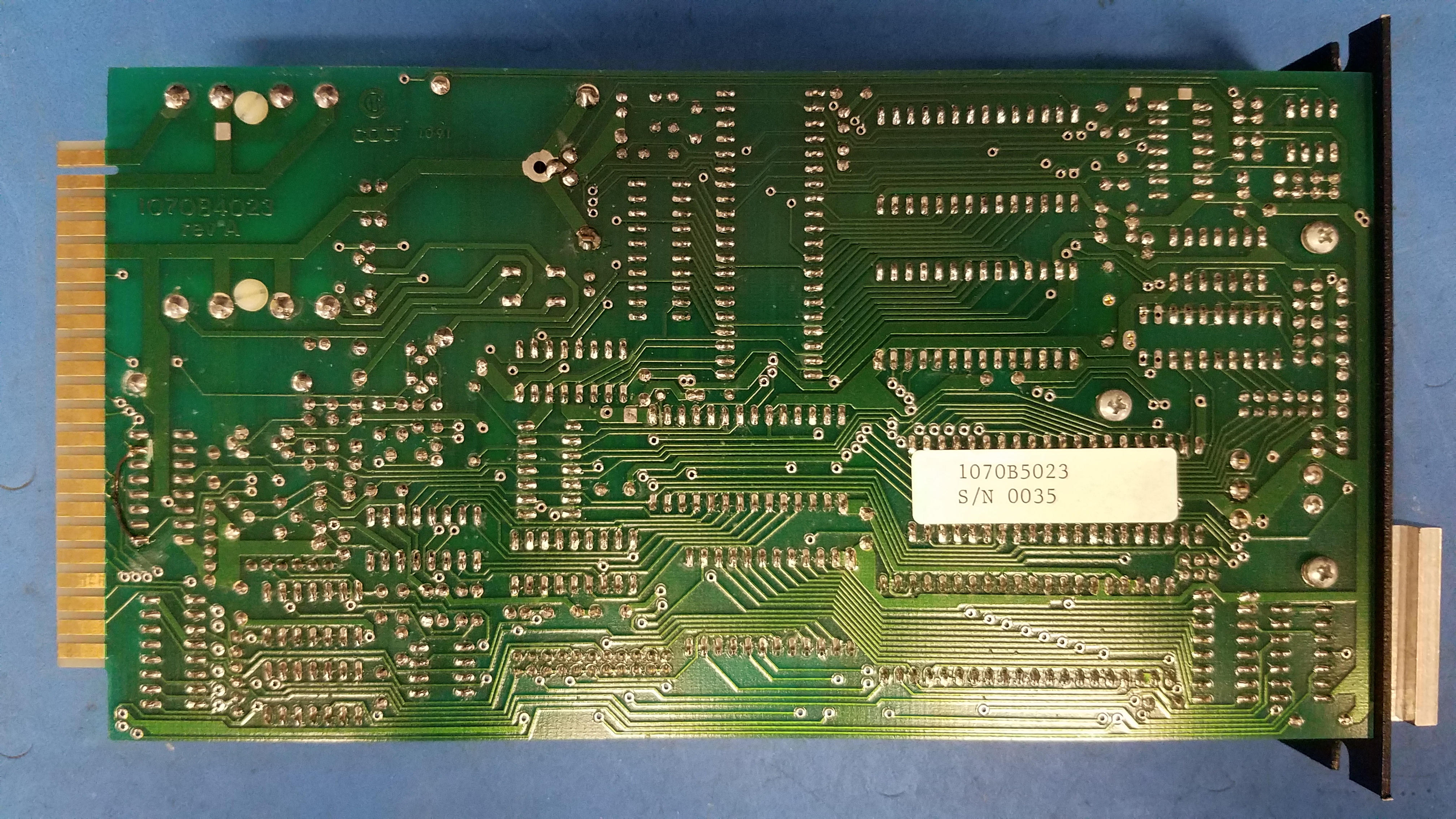

RD-2031B Bottom



Jumpers and DIP Switch Chart

[INPUT] to DMX512

RD2031 Input to DMX512.png
Used to convert a protocol input to DMX512.

[INPUT] to AMX192

RD2031 Input to AMX192.png
Used to convert a protocol input to AMX192

[INPUT] to K96

RD2031 Input to K96.pngUsed to convert a protocol input to K96
These settings do not use the 6-pin jumper header

[INPUT] to D192

RD2031 Input to D192.pngUsed to convert a protocol input to K96
Conversion from ECMUX to D192 is not available

[INPUT] to AVAB

RD2031 Input to AVAB.pngUsed to convert a protocol input to AVAB
Conversion from ECMUX to AVAB is not available

[INPUT] to MICRO2

RD2031 Input to MICRO2.pngUsed to convert a protocol input to MICRO2

[INPUT] to ECMUX

RD2031 Input to ECMUX.pngUsed to convert a protocol input to ECMUX
Conversion from D192 or AVAB to ECMUX is not available
Table data from original document is damaged for MICRO2. Unknown what software version to use. Also, all ECMUX conversion requires a different frequency crystal, which is an unknown value.

For all conversion settings, it is unknown what the EC Mz crystal frequency is. That data appears to have been lost.
