End-Of-Line DMX512 and ETCLink Termination on Sensor CEM

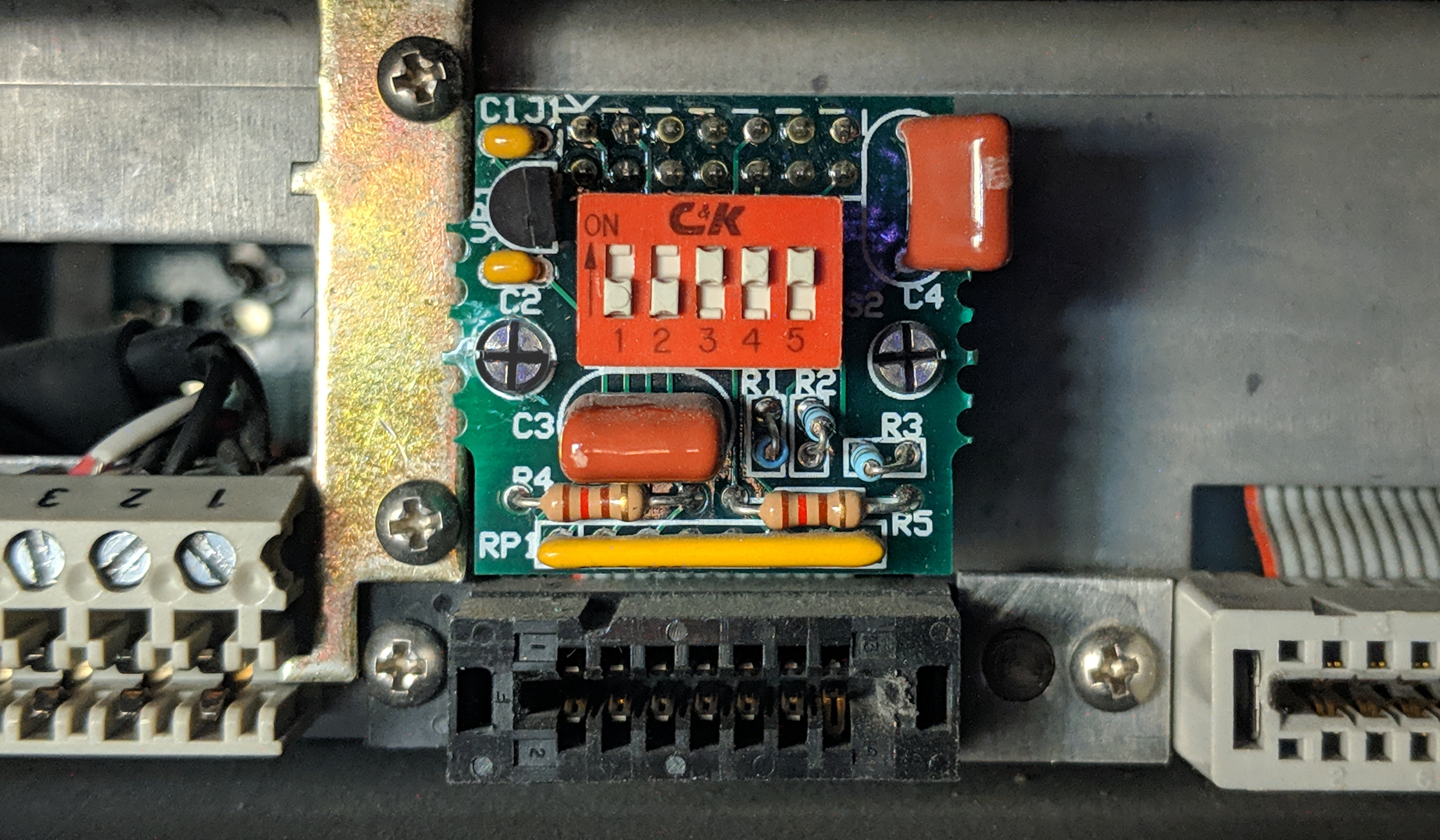

The CEM backplane connector J3 connects via a ribbon cable to a PCB with 5 DIP switches.

Switch Function
1 DMX A Termination
2 DMX A Termination
3 DMX B Termination
4 DMX B Termination
5 ETCLink Termination
