How many universes can a Hog 4 console control

The following will explain how many unique universes each console is capable of without a DMX Processor 8000 (DP 8000). Most consoles can have more universes of control if a DP 8000 is networked to the console.

Console Type Outputs on the console Art-Net Universes Available sACN Universes Available Maximum number of universes available on Console Can add processors to expand more universes Widget Compatible Notes
Hog4-18_prod_front.jpegHog 4-18 8 16 16 16 YES YES, but will not add to the number of universes able to control.
  • If running v3.13.1 and older, the first 8 universes are on the outputs on the back of the console
Hog 4
8 16 16 16 YES YES, but will not add to the number of universes able to control.
  • If running v3.13.1 and older, the first 8 universes are on the outputs on the back of the console
Rack_Hog_center.jpegRack Hog 4 8 16 16 16 YES YES, but will not add to the number of universes able to control.
  • If running v3.13.1 and older, the first 8 universes are on the outputs on the back of the console
Full_Boar_center (1).jpegFull Boar 4 4 12 12 12 YES YES, but will not add to the number of universes able to control.
  • If running v3.13.1 and older, the first 4 universes are on the outputs on the back of the console
Road_Hog_center.jpegRoad Hog 4 4 8 8 8 YES YES, but will not add to the number of universes able to control.
  • If running v3.13.1 and older, the first 4 universes are on the outputs on the back of the console
HedgeHog_center.jpegHedgeHog 4X 2 6 6 6 YES YES, but will not add to the number of universes able to control.
  • If running v3.13.1 and older, the first 2 universes are on the back of the console
HedgeHog_center.jpegHedgeHog 4N 2 4 4 4 YES YES, but will not add to the number of universes able to control.
  • If running v3.13.1 and older, the first 2 universes are on the back of the console
HedgeHog_center.jpegHedgeHog 4S 2 4 4 4 NO YES, but will not add to the number of universes able to control.
  • If running v3.13.1 and older, the first 2 universes are on the back of the console
HedgeHog_center.jpegHedgeHog 4 2 4 4 4 NO YES, but will not add to the number of universes able to control.
  • If running v3.13.1 and older, the first 2 universes are on the back of the console

Hoglet_wLaptop.jpegHog 4 PC with NanoHog or Hoglet

4 4 4 4 YES YES and will add to the number of universes able to control.
PC_Widget_center.jpegHog 4 PC 0 0 0 0 YES YES and will add to the number of universes able to control.

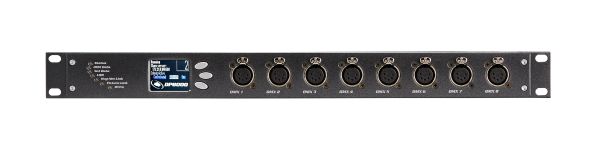

DP8K_center (1).jpegDMX Processor 8000 8 16 16 16 YES YES, but will not add to the number of universes able to control.
  • Does not run the show. Will need a console or computer with Hog 4 PC


HPU

8 64 64 64 YES YES, but will not add to the number of universes able to control.
