Pinouts for Express Power Supplies

There are 2 types of Express power supplies, 5-pin and 8-pin power supplies.  The following lists the pin-outs for each power supply.  A diagram of each pin-out is also included.

8-pin power supplies

+5v pins 1, 2, and 3
+12v pin 4
GND pins, 5, 6, 7, and 8

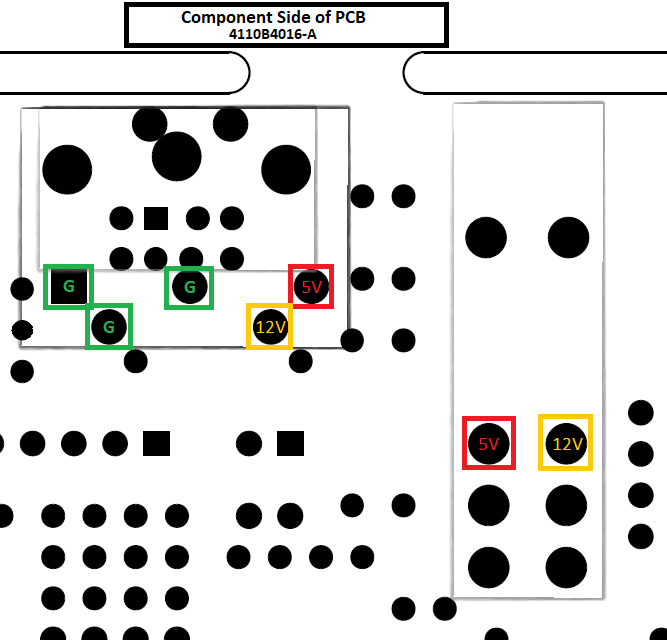

5-pin power supplies

+5v pin 3
+12v pin 5
GND pins 1, 2, and 4

Connector is standard 5-pin DIN 240 degree


Pinout for Power Connector.jpg

 See also: Changes in Express Power Supplies
