ColorSource Relay LED Indicators
Graphical Key
Description | Image |
---|---|
On | ![]() |
Off | ![]() |
Fast Blink | ![]() |
Steady Blink | ![]() |
Long / Intermittent Blink | ![]() |
Normal Operation
ColorSource Relay | LED | Show ID 201 | Show ID 102 | Show ID 117 | Show ID 133 | Show ID 149 | Show ID 165 | Show ID Set via RDM / Multiverse |
---|---|---|---|---|---|---|---|---|
![]() |
ID | 1 | 2 | 3 | 4 | 5 | 6 | C |
Power | ![]() Green |
![]() Cyan |
![]() Magenta |
![]() White |
![]() Red |
![]() Yellow |
![]() Blue |
|
DMX | ![]() DMX Present |
![]() DMX Present |
![]() DMX Present |
![]() DMX Present |
![]() DMX Present |
![]() DMX Present |
![]() DMX Present |
|
![]() No DMX |
![]() No DMX |
![]() No DMX |
![]() No DMX |
![]() No DMX |
![]() No DMX |
![]() No DMX |
||
Relay | ![]() Output On |
![]() Output On |
![]() Output On |
![]() Output On |
![]() Output On |
![]() Output On |
![]() Output On |
|
![]() Output Off |
![]() Output Off |
![]() Output Off |
![]() Output Off |
![]() Output Off |
![]() Output Off |
![]() Output Off |
||
Signal Quality | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Sleep Mode
ColorSource Relay | LED | State |
---|---|---|
![]() |
Power | ![]() Intermittent Blink |
DMX | ![]() Off |
|
Relay | ![]() Off |
|
Signal Quality | ![]() Intermittent Blink |

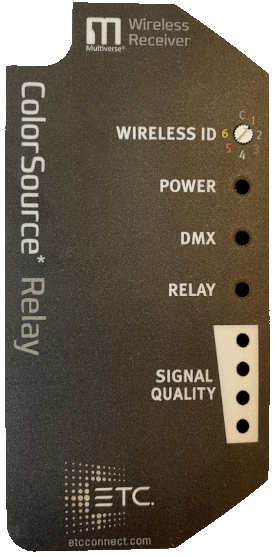

Software Update
Normal Update Sequence
ColorSource Relay | LED | Initialize | >> | Update Radio | >> | Update Firmware | >> | Complete |
---|---|---|---|---|---|---|---|---|
![]() |
Power | ![]() Blue Fast Blink |
>> | ![]() Cyan |
>> | ![]() Cyan |
>> | Varies |
DMX | ![]() Off |
![]() Off |
![]() Fast Blink |
Varies | ||||
Relay | ![]() Off |
![]() Fast Blink |
![]() Off |
Varies | ||||
Signal Quality | ![]() |
![]() |
![]() |
![]() |
Upgrade Error States
Upgrade Failure
ColorSource Relay | LED | Initialize | >> | Upgrade Failure |
---|---|---|---|---|
![]() |
Power | ![]() Blue Fast Blink |
>> | ![]() Red |
DMX | ![]() Off |
![]() Off |
||
Relay | ![]() Off |
![]() Off |
||
Signal Quality | ![]() |
![]() |
File Not Found
- Check USB for the appropriate upgrade files on the root of the USB
ColorSource Relay | LED | Initialize | >> | File Not Found |
---|---|---|---|---|
![]() |
Power | ![]() Blue Fast Blink |
>> | ![]() Magenta |
DMX | ![]() Off |
![]() Off |
||
Relay | ![]() Off |
![]() Off |
||
Signal Quality | ![]() |
![]() |
Waiting for USB
ColorSource Relay | LED | Initialize | >> | Waiting for USB |
---|---|---|---|---|
![]() |
Power | ![]() Blue Fast Blink |
>> | ![]() Cyan |
DMX | ![]() Off |
![]() Off |
||
Relay | ![]() Off |
![]() Off |
||
Signal Quality | ![]() |
![]() |
Configuration via USB
See Reconfiguring ColorSource Relay Multiverse with an ini file for details on this process.
Successful Configuration Sequence
ColorSource Relay | LED | Initialize | >> | Success | >> | Remove USB | >> | Complete |
---|---|---|---|---|---|---|---|---|
![]() |
Power | ![]() White Fast Blink |
>> | ![]() Green |
>> | Remove USB Drive | >> | Varies |
DMX | ![]() Off |
![]() Off |
Varies | |||||
Relay | ![]() Off |
![]() Off |
Varies | |||||
Signal Quality | ![]() |
![]() |
![]() |
Configuration Failure Sequence
- Failed to configure at least one parameter. Remove the USB drive, insert it into your computer, and verify the syntax of the file.
ColorSource Relay | LED | Initialize | >> | Failure | >> | Remove USB | >> | Complete |
---|---|---|---|---|---|---|---|---|
![]() |
Power | ![]() White Fast Blink |
>> | ![]() Red |
>> | Remove USB Drive | >> | Varies |
DMX | ![]() Off |
![]() Off |
Varies | |||||
Relay | ![]() Off |
![]() Off |
Varies | |||||
Signal Quality | ![]() |
![]() |
![]() |
